Page 25: Merging, Passing, Ramp & Hill / Vertical Grade Warning Signs

Page 25 of the Rice Signs 2017 Traffic Safety Catalog continues the Warning Signs section with merging, passing, ramp, and hill warning signs. Merging Traffic signs (W4-1 left and right, W4-3 Added Lane, W4-5 Added Lane plaques, W4-6 Lane Reduction) and W9 Lane Reduction signs warn drivers of merging conditions at highway entrances and reduced-lane sections. W1-11, W1-13, and W1-15 ramp and lane-change signs cover entrance and exit ramp geometries. Advisory Speed and Exit Ramp signs (W13-2, W13-3, W13-6, W13-7) provide recommended speeds for curves and ramps. W14-3 No Passing Zone warns drivers approaching passing zones. The Hill and Vertical Grade Signs (W7 series — W7-1 Hill, W7-2P Hill Trucks Use Lower Gear plaque, W7-3 series Steep Grade variants, W7-6) mark steep ascents and descents.

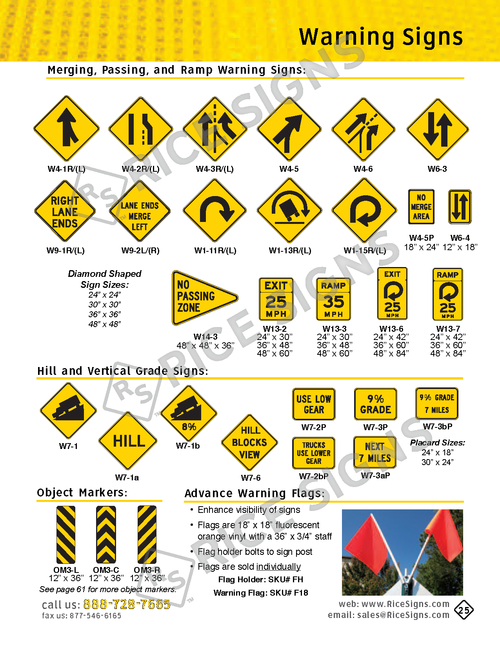

BACK Rice Signs catalog page 25 — Warning Signs section showing W4-1L and W4-1R Merging Traffic signs, W4-3L and W4-3R Added Lane signs, W4-5R and W4-5P Added Lane plaques, W4-6R Lane Reduction, W1-11 Lane Ends signs, W1-13 and W1-15 ramp-related signs, W9-1 and W9-2 Lane Reduction signs, W13-2 and W13-3 Advisory Exit Ramp Speed signs, W13-6 and W13-7 advisory plaques, W14-3 No Passing Zone, plus W7-1 and W7-1b Hill signs, W7-2P and W7-2bP Hill Trucks Use Lower Gear plaques, W7-3P, W7-3aP, W7-3bP, and W7-6 vertical grade signs, plus Object Markers and Advance Warning Flags references. Right MergeRight Lane Ends SymbolAdded Lane RightEntering Roadway MergeEntering Roadway Added LaneTwo-way TrafficRight MergeLane Ends Merge LeftHairpin Curve RightTruck Rollover Right270 Degree Loop RightNo Merge AreaDouble ArrowNo Passing ZoneExit Advisory SpeedRamp Advisory SpeedExit Advisory Speed With Reverse CurveRamp Advisory Speed With Reverse CurveHillHill With Custom GradeHill Blocks ViewUse Low GearTrucks Use Lower GearCustom GradeNext Custom MilesCustom Grade Custom MilesLeft Stripe Yellow ObjectCenter Stripe Yellow ObjectRight Stripe Yellow ObjectBarricade Lights and Flags NEXT
