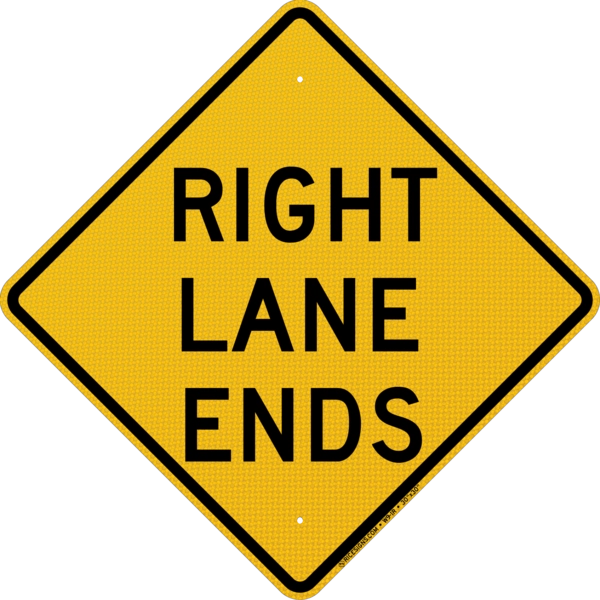

Right Lane Ends Signs
The Right Lane Ends sign, MUTCD W9-1R, indicates that the right lane of a multi-lane roadway is ending soon and advises drivers to merge safely to the left lane. It helps to prevent confusion and potential accidents by providing advance notice of the lane reduction.
Right Lane Ends Sign Details:
- Sign is manufactured on durable rust-proof .080" aluminum
- Pre-punched 3/8" mounting holes in top and bottom for easy installation.
- Meets M.U.T.C.D. specifications for highway use.
- See in our catalog on page 25.
In Stock - Usually ships same or next business day.
High Intensity Prismatic Reflective on .080" Aluminum:
MATERIAL | SIZE | PRICE PER SIGN | ADD TO CART | Catalog Part # | ||
---|---|---|---|---|---|---|
1 to 4 | 5 to 9 | 10 + | ||||
![]() High Intensity Prismatic | 30" x 30" | $97.90 | $93.01 | $88.11 | W9-1R-3030-HIP | |
36" x 36" | $163.79 | $155.60 | $147.41 | W9-1R-3636-HIP | ||
48" x 48" | $244.20 | $231.99 | $219.78 | W9-1R-4848-HIP |
Fluorescent Yellow Prismatic Reflective on .080" Aluminum:
MATERIAL | SIZE | PRICE PER SIGN | ADD TO CART | Catalog Part # | ||
---|---|---|---|---|---|---|
1 to 4 | 5 to 9 | 10 + | ||||
![]() Fluorescent Yellow Prismatic | 30" x 30" | $117.81 | $111.92 | $106.03 | W9-1R-3030-FYP | |
36" x 36" | $179.08 | $170.13 | $161.17 | W9-1R-3636-FYP | ||
48" x 48" | $308.44 | $293.02 | $277.60 | W9-1R-4848-FYP |
Available Reflective Finishes:
High Intensity Prismatic Reflective | Fluorescent Yellow Prismatic Reflective |
---|---|
![]() ![]()
|
![]() ![]()
|
![]() | ![]() |
Sign Posts
Sign Installation Hardware
Other Merging and Ramp Signs

Click to view

Click to view

Click to view
Specifications:
Legend: | RIGHT LANE ENDS |
MUTCD Sign Code #: | W9-1R |
Shape: | Diamond |
Color: | BLACK on YELLOW |
Available Sizes and Weights: | Size: 30" x 30"; Ship Weight: 7.8 lbs |
Size: 36" x 36"; Ship Weight: 11.2 lbs | |
Size: 48" x 48"; Ship Weight: 19.9 lbs | |
Available Styles: | High Intensity Prismatic Reflective on .080" Aluminum |
Fluorescent Yellow Prismatic Reflective on .080" Aluminum | |
Full Description: | W9-1R have a yellow background color. The text and border are black and it is in the shape of a diamond. |
Mounting Hole Placement: | ![]() |
Example Use:
In the downtown area of a small city, streets are often bustling with a mix of vehicles, cyclists, and pedestrians, all navigating a dense grid of intersections and crosswalks. A 'Right Lane Ends' sign plays a crucial role in such an environment. For instance, on Main Street, a two-lane road that merges into a single lane before intersecting with the busy McCrey Avenue, the sign notifies drivers in the right lane well in advance of the merge. This preemptive warning allows vehicles to adjust their speed, check for cars in the adjacent lane, and merge safely and smoothly. Without the sign, drivers might approach the merge point unprepared, leading to sudden braking or hasty lane changes, which could increase the risk of rear-end collisions or side-swipes. Such unexpected maneuvers not only endanger vehicle occupants but also cyclists and pedestrians who might be caught off guard. In a dense downtown setting, clear communication of road changes via signage is essential to maintain the flow of traffic and ensure the safety of all road users.
