Fire Department Connection Sign (R7-6-9C)
The R7-6-9C Fire Department Connection sign marks the location of a fire department connection that must remain accessible. It is a white regulatory sign.
One size, two prismatic reflective grades — $37.95 to $48.51 per sign, or from $34.16 at volume.
- 5 to 9
- $36.05
- 10 +
- $34.16
✓ In stock Free Shipping
R7-6-9C-1812-HIP(None)Designed in accordance with the MUTCD design standards, on rust-proof .080" aluminum.
- In stock
Ships in 1-3 Business Days
Free Shipping on this item
Volume pricing
at 5+
In stockBrowse the collection of Fire Lane Parking Signs
All R7-6-9C prices
Every size and sheeting combination. Click to select.
| Size | High Intensity Prismatic | OmniCube™ Full Cube |
|---|---|---|
| 18 x 12 | $37.95 each (1-4) 5-9: $36.05 10+: $34.16 | $48.51 each (1-4) 5-9: $46.08 10+: $43.66 |
R7-6-9C Sign Specifications
| Legend: | FIRE DEPARTMENT CONNECTION |
|---|---|
| Sign Code #: | R7-6-9C |
| Shape: | Horizontal Rectangle |
| Color: | RED on WHITE |
| Available Sizes and Weights: | Size: 18 x 12; Ship Weight: 1.9 lbs |
| Available Styles: | High Intensity Prismatic Reflective on .080" Aluminum |
| Full Cube Prismatic Reflective on .080" Aluminum | |
| Full Description: | R7-6-9C has a white background color. The text and border are red and it is in the shape of a horizontal rectangle. |
R7-6-9C Purpose and Use
The Fire Department Connection placard marks the standpipe or sprinkler inlet on a building so arriving crews locate it in seconds.

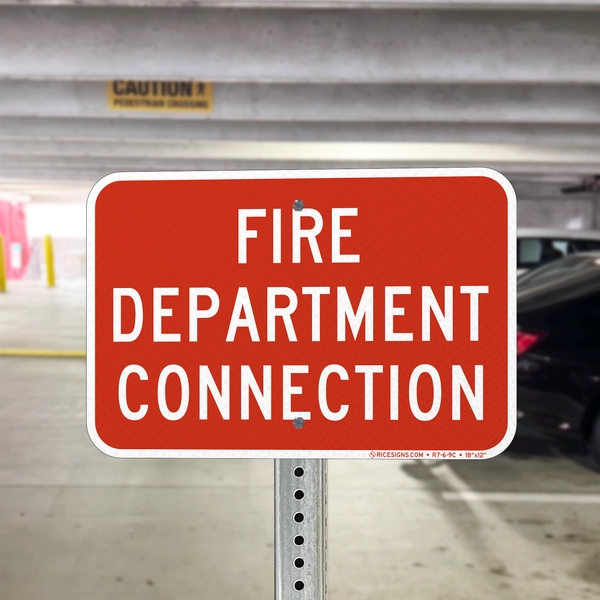

Wall-mount this horizontal placard directly at or above the connection, and keep its approach clear with adjoining R7-6-9 fire lane signs.
R7-6-9C Questions
What does the Fire Department Connection placard mark?
It identifies the standpipe or sprinkler inlet on a building so arriving crews can locate the connection in seconds instead of searching the exterior wall.
Where is the R7-6-9C mounted?
On the wall, directly at or above the connection itself. Unlike the rest of this series it is not a post-mounted parking sign, and it does not restrict parking on its own.
R7-6-9C Important Information
The Fire Department Connection Sign (MUTCD R7-6-9C) is used to indicate the location of a connection point for firefighters to access a building's water supply in case of a fire emergency. The sign features a white FIRE DEPT CONNECTION legend on a red background to help firefighters quickly locate the connection point.
R7-6-9C Reflective Sheeting Options

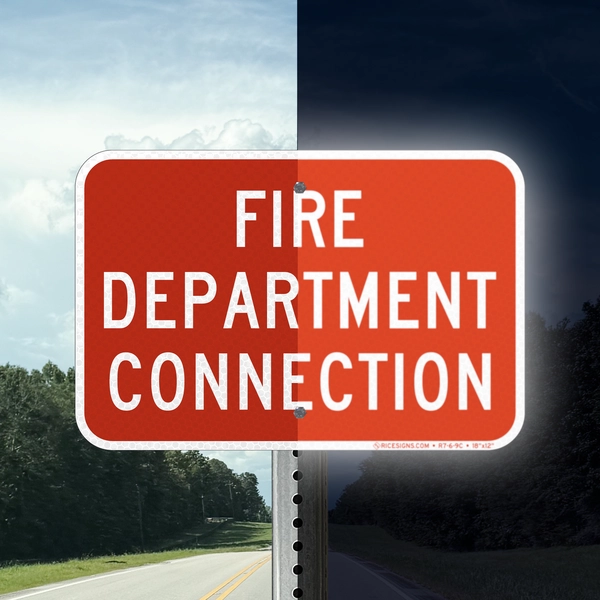

Because the R7-6-9C has to be picked out at night by arriving apparatus crews, the T-11500 OmniCube - up to 60 percent brighter with a 12-year outdoor durability rating - is the safer choice when night visibility matters most, while the T-6500 High Intensity Prismatic delivers proven 10-year durability.
- Most Common Reflective Finish
- Very Reflective At Night
- Required for Most Highway Signs
- 10 Year Outdoor Durability
- Brightest and Most Visible
- Most Reflective At Night
- Up to 60 percent brighter than HIP
- 12 Year Outdoor Durability
Compare T-6500 and T-11500 OmniCube retroreflectivity, durability and warranty →

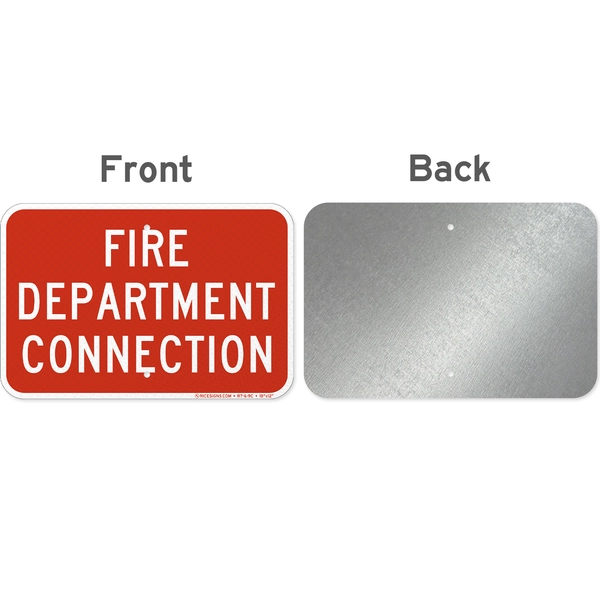

R7-6-9C Mounting Hole Pattern and Spacing
The R7-6-9C is a horizontal placard, so its mounting holes are spaced to line up with the holes of the sign it mounts beneath, letting both share a single post without drilling
