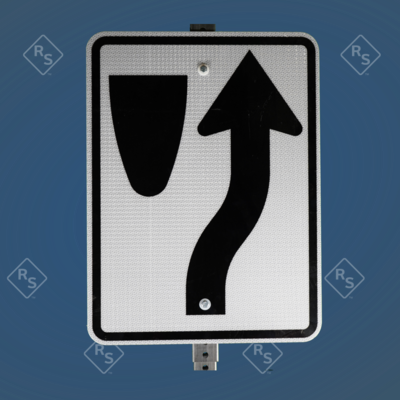

Keep Right Symbol Sign (R4-7)
R4-7 Price
High Intensity Prismatic Reflective on .080" Aluminum
| MATERIAL | SIZE | WORDING | PRICE | ADD TO CART | Catalog Part # |
|---|---|---|---|---|---|
High Intensity Prismatic |
18" x 24" High Intensity Prismatic |
Keep Right Symbol | 1 to 4: $65.67 5 to 9: $62.39 10 +: $59.10 |
SKU:R4-7-1824-HIP |
R4-7-1824-HIP |
24" x 30" High Intensity Prismatic |
Keep Right Symbol | 1 to 4: $99.22 5 to 9: $94.26 10 +: $89.30 |
SKU:R4-7-2430-HIP |
R4-7-2430-HIP | |
36" x 48" High Intensity Prismatic |
Keep Right Symbol | 1 to 4: $247.94 5 to 9: $235.54 10 +: $223.15 |
SKU:R4-7-3648-HIP |
R4-7-3648-HIP | |
48" x 60" High Intensity Prismatic |
Keep Right Symbol | 1 to 4: $351.23 5 to 9: $333.67 10 +: $316.11 |
SKU:R4-7-4860-HIP |
R4-7-4860-HIP |
In Stock - Usually ships same or next business day.
OmniCube™ Full Cube Prismatic Reflective on .080" Aluminum| MATERIAL | SIZE | WORDING | PRICE | ADD TO CART | Catalog Part # |
|---|---|---|---|---|---|
OmniCube™ Full Cube (UPG) |
18" x 24" OmniCube™ Full Cube (UPG) |
Keep Right Symbol | 1 to 4: $73.92 5 to 9: $70.22 10 +: $66.53 |
SKU:R4-7-1824-UPG |
R4-7-1824-UPG |
24" x 30" OmniCube™ Full Cube (UPG) |
Keep Right Symbol | 1 to 4: $107.80 5 to 9: $102.41 10 +: $97.02 |
SKU:R4-7-2430-UPG |
R4-7-2430-UPG | |
36" x 48" OmniCube™ Full Cube (UPG) |
Keep Right Symbol | 1 to 4: $274.89 5 to 9: $261.15 10 +: $247.40 |
SKU:R4-7-3648-UPG |
R4-7-3648-UPG | |
48" x 60" OmniCube™ Full Cube (UPG) |
Keep Right Symbol | 1 to 4: $469.59 5 to 9: $446.11 10 +: $422.63 |
SKU:R4-7-4860-UPG |
R4-7-4860-UPG |
In Stock - Usually ships same or next business day.
The purpose of the Keep Right Symbol Signs MUTCD R4-7 is to inform drivers that they should keep to the right-hand side of the roadway or median. These signs are typically used in situations where traffic is divided or merging, and they help to promote safe and efficient movement of vehicles.
MUTCD R4-7 Guidance
Keep Right Symbol Sign Specifications
- Sign is manufactured on durable rust-proof .080" aluminum
- Pre-punched 3/8" mounting holes in top and bottom for easy installation.
- Meets M.U.T.C.D. specifications for highway use.
See catalog page 7.
The series splits by arrow geometry rather than by message: R4-7a runs the arrow horizontally, R4-7b sets it at an angle, and R4-7c uses the symbol-only treatment. Choose by how the obstruction presents to approaching traffic, since the arrow should follow the path drivers must actually take. The mirrored family for left-hand passage is R4-8.
Available Reflective Finishes:
- Most common reflective finish used for traffic signs
- Meets federal minimum requirements
- 10 Year Outdoor Durability
- Brightest and most visible
- Exceeds federal minimum requirements
- 10 Year Outdoor Durability
Sign Posts
Sign Installation Hardware
Sign Installation Hardware
Other Keep Right Signs
R4-7 Sign Specifications
| Legend: | KEEP RIGHT SYMBOL |
| MUTCD Sign Code #: | R4-7 |
| Shape: | Vertical Rectangle |
| Color: | BLACK on WHITE |
| Available Sizes and Weights: | Size: 18" x 24"; Ship Weight: 3.7 lbs |
| Size: 24" x 30"; Ship Weight: 6.2 lbs | |
| Size: 36" x 48"; Ship Weight: 14.9 lbs | |
| Size: 48" x 60"; Ship Weight: 24.8 lbs | |
| Available Styles: | High Intensity Prismatic Reflective on .080" Aluminum |
| OmniCube™ Full Cube Prismatic Reflective on .080" Aluminum | |

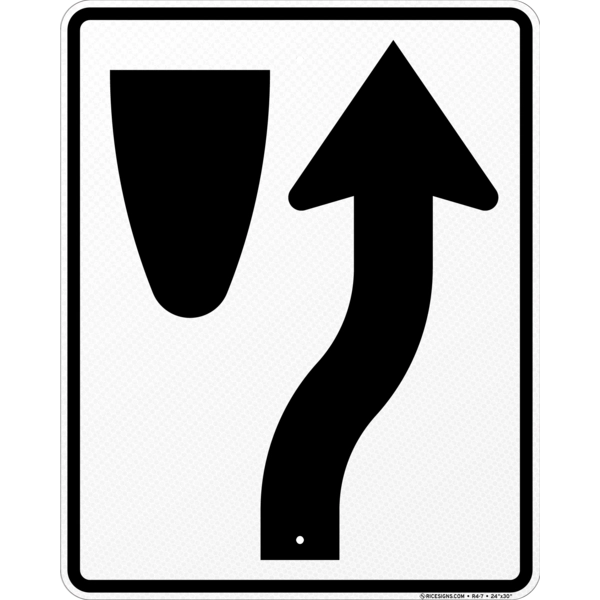

| Full Description: | R4-7 has a white background color. The text and border are black and it is in the shape of a vertical rectangle. |
| Mounting Hole Placement: |  |
