Ramp Meter Ahead Signs



Ramp Meter Ahead Sign

SKU# W3-7


A Ramp Meter Ahead (W3-7) sign is used to inform drivers that they are approaching an entrance ramp with a traffic signal or metering system designed to regulate the flow of vehicles merging onto a highway or freeway. The sign alerts motorists to be prepared to stop or slow down and follow the signal indications, which helps maintain a smooth and safe flow of traffic on the main roadway.



Ramp Meter Ahead Sign Details:

  • Sign is manufactured on durable rust-proof .080" aluminum
  • Pre-punched 3/8" mounting holes in top and bottom for easy installation.
  • Meets M.U.T.C.D. specifications for highway use.
  • See in our catalog on page 22.

In Stock - Usually ships same or next business day.



High Intensity Prismatic Reflective on .080" Aluminum:

MATERIAL SIZE PRICE PER SIGN ADD TO CART Catalog Part #
1 to 4 5 to 9 10 +
This is a close image of the following reflective material: High Intensity Prismatic
High Intensity Prismatic 		36" x 36" $163.79 $155.60 $147.41
W3-7-3636-HIP


Fluorescent Yellow Prismatic Reflective on .080" Aluminum:

MATERIAL SIZE PRICE PER SIGN ADD TO CART Catalog Part #
1 to 4 5 to 9 10 +
This is a close image of the following reflective material: Fluorescent Yellow Prismatic
Fluorescent Yellow Prismatic 		36" x 36" $179.08 $170.13 $161.17
W3-7-3636-FYP
Fast shipping and Free Shipping on many traffic signs, roll-up signs and stands.



Available Reflective Finishes:

High Intensity Prismatic Reflective Fluorescent Yellow Prismatic Reflective
High Intensity Prismatic
Pick traffic sign finish
  • Most common reflective finish used for traffic signs
  • Meets federal minimum requirements
  • 10 Year Outdoor Durability
 Fluorescent Yellow Prismatic
Pick traffic sign finish
  • Brightest and most visible
  • Exceeds federal minimum requirements
  • 10 Year Outdoor Durability






Sign Posts







Sign Installation Hardware




Other Advance Traffic Control Signs




Rice Signs Catalog Page 21
Catalog Page 21
Click to view
Rice Signs Catalog Page 22
Catalog Page 22
Click to view
Rice Signs Catalog Page 23
Catalog Page 23
Click to view




Specifications:

Legend: RAMP METER AHEAD
MUTCD Sign Code #: W3-7
Shape: Diamond
Color: BLACK on YELLOW

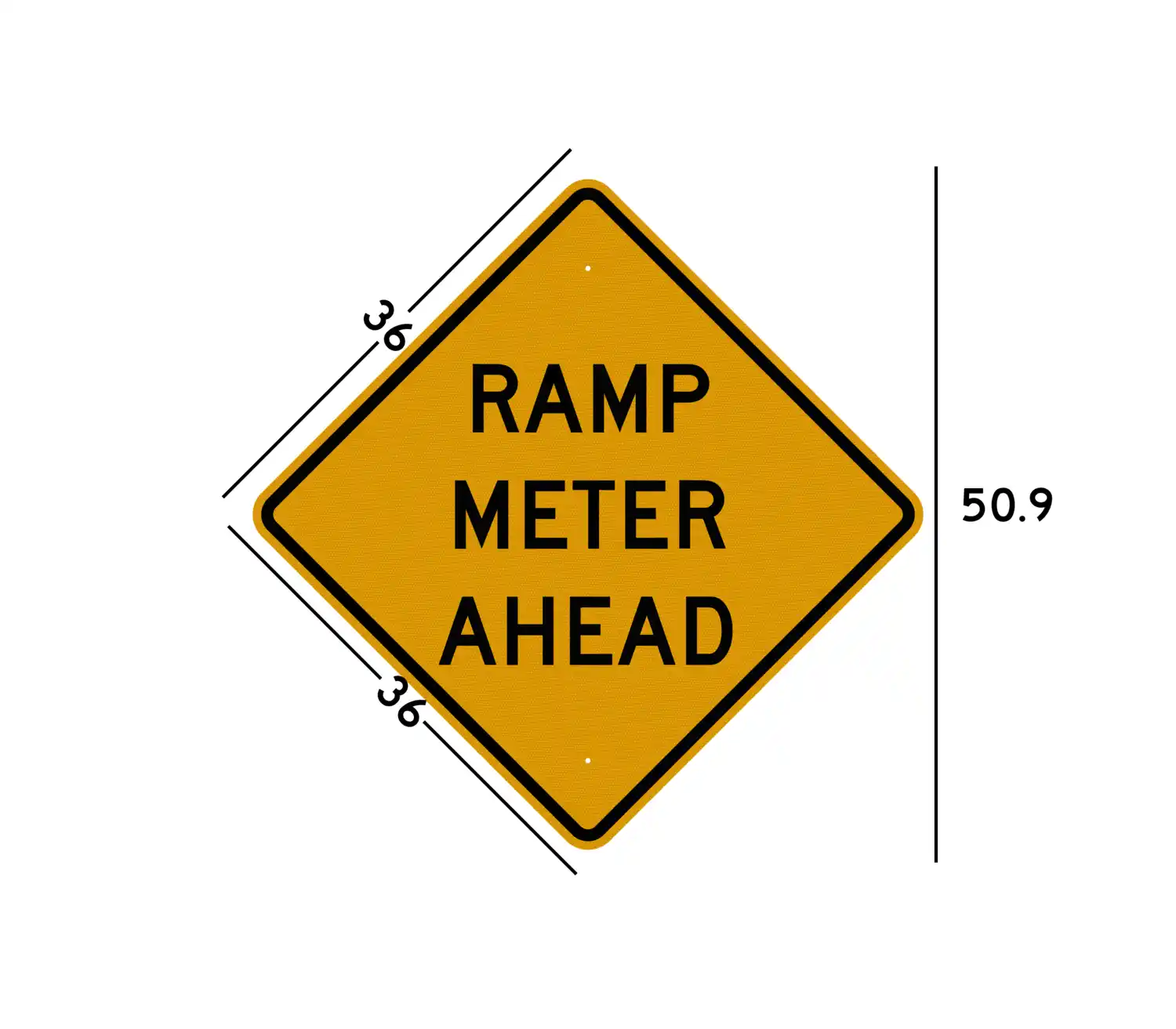

Available Sizes and Weights:Size: 36" x 36"; Ship Weight: 11.2 lbs
Available Styles:High Intensity Prismatic Reflective on .080" Aluminum
Fluorescent Yellow Prismatic Reflective on .080" Aluminum
Full Description:

W3-7 have a yellow background color. The text and border are black and it is in the shape of a diamond.

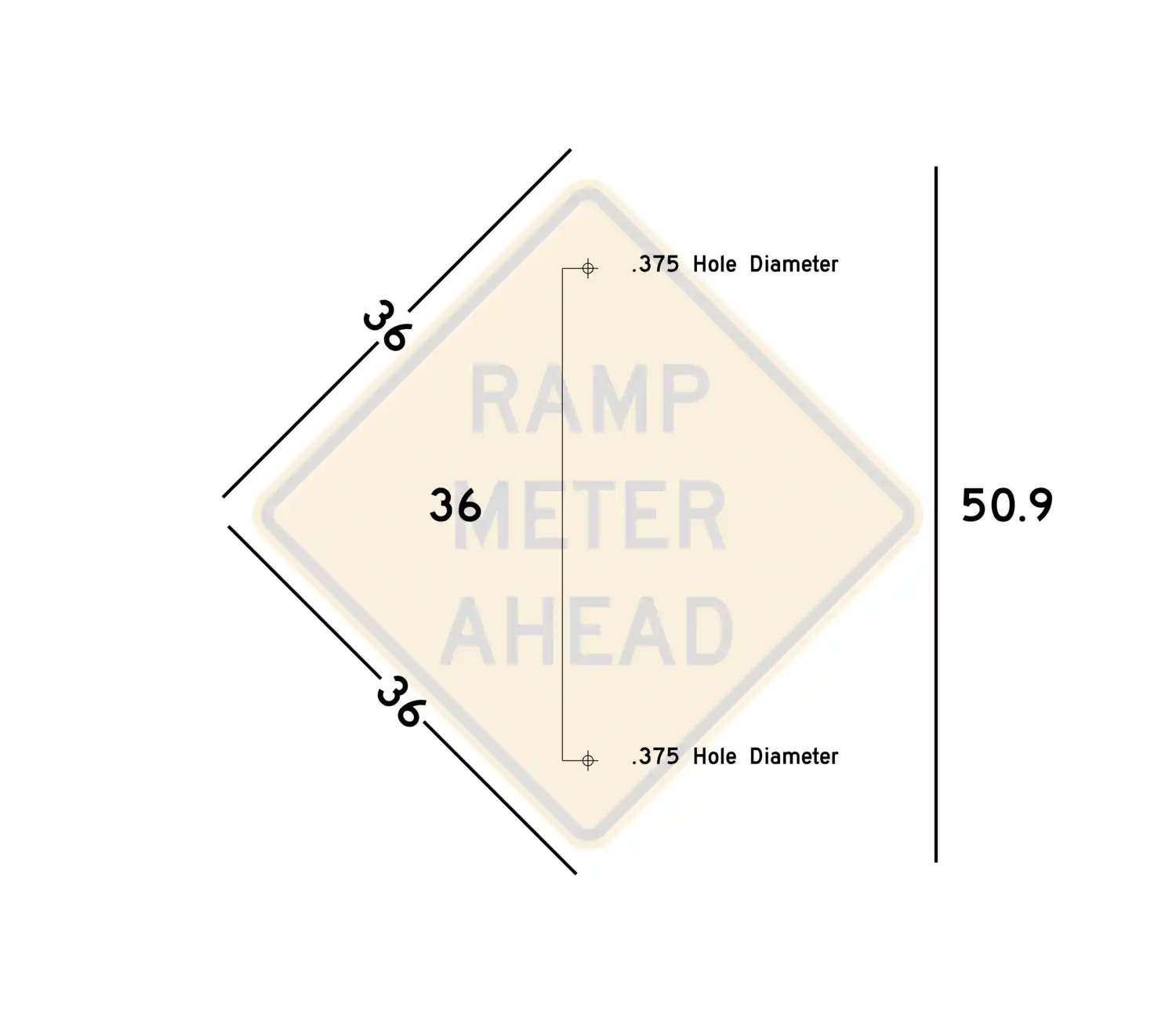

Mounting Hole Placement: Mounting Hole Diagram for Ramp Meter Ahead Sign
