Stay In Lane Signs



Stay In Lane Sign

SKU# R4-9

Customer Reviews


Staying in Lane means that drivers should remain within their designated lane of travel on the roadway and avoid weaving or drifting into adjacent lanes; this helps to maintain safe separation between vehicles, reduce the risk of collisions, and enhance overall traffic flow and efficiency.



Stay In Lane Sign Details:

  • Sign is manufactured on durable rust-proof .080" aluminum
  • Pre-punched 3/8" mounting holes in top and bottom for easy installation.
  • Meets M.U.T.C.D. specifications for highway use.
  • See in our catalog on page 10.

In Stock - Usually ships same or next business day.



High Intensity Prismatic Reflective on .080" Aluminum:

MATERIAL SIZE PRICE PER SIGN ADD TO CART Catalog Part #
1 to 4 5 to 9 10 +
High Intensity Prismatic
High Intensity Prismatic
18" x 24" $58.19 $55.28 $52.37
R4-9-1824-HIP
24" x 30" $86.90 $82.56 $78.21
R4-9-2430-HIP
36" x 48" $213.51 $202.83 $192.16
R4-9-3648-HIP
48" x 60" $301.51 $286.43 $271.36
R4-9-4860-HIP


Full Cube Prismatic Reflective on .080" Aluminum:

MATERIAL SIZE PRICE PER SIGN ADD TO CART Catalog Part #
1 to 4 5 to 9 10 +
Full Cube Prismatic
Full Cube Prismatic
18" x 24" $66.66 $63.33 $59.99
R4-9-1824-UPG
24" x 30" $95.70 $90.92 $86.13
R4-9-2430-UPG
36" x 48" $238.92 $226.97 $215.03
R4-9-3648-UPG
48" x 60" $405.79 $385.50 $365.21
R4-9-4860-UPG




Available Reflective Finishes:

High Intensity Prismatic Reflective Full Cube Prismatic Reflective
High Intensity Prismatic
Pick traffic sign finish
  • Most common reflective finish used for traffic signs
  • Meets federal minimum requirements
  • 10 Year Outdoor Durability
Full Cube Prismatic
Pick traffic sign finish
  • Brightest and most visible
  • Exceeds federal minimum requirements
  • 10 Year Outdoor Durability



Stay In Lane
r4-9
Stay On Trail
rs-123



Sign Posts

A galvanized u channel postA picture of a green u channel sign postA round post used to install signsA picture of a square post that has holes from top to bottom






Sign Installation Hardware

A picture of different hardware used for sign mountingDifferent break away hardware for safely install signs



Other Passing Zone Signs

Do Not PassPass With CareTrucks Use Right LaneTruck Lane FeetStay In LaneNo Passing When Solid Yellow Line Is Right Of Center LineRunaway Vehicles OnlyKeep Right Except To PassDo Not Drive On ShoulderDo Not Pass On Shoulder



Rice Signs Catalog Page 9Catalog Page 9
Click to view
Rice Signs Catalog Page 10Catalog Page 10
Click to view
Rice Signs Catalog Page 11Catalog Page 11
Click to view





Specifications:

Legend: STAY IN LANE
MUTCD Sign Code #: R4-9
Shape: Vertical Rectangle
Color: BLACK on WHITE

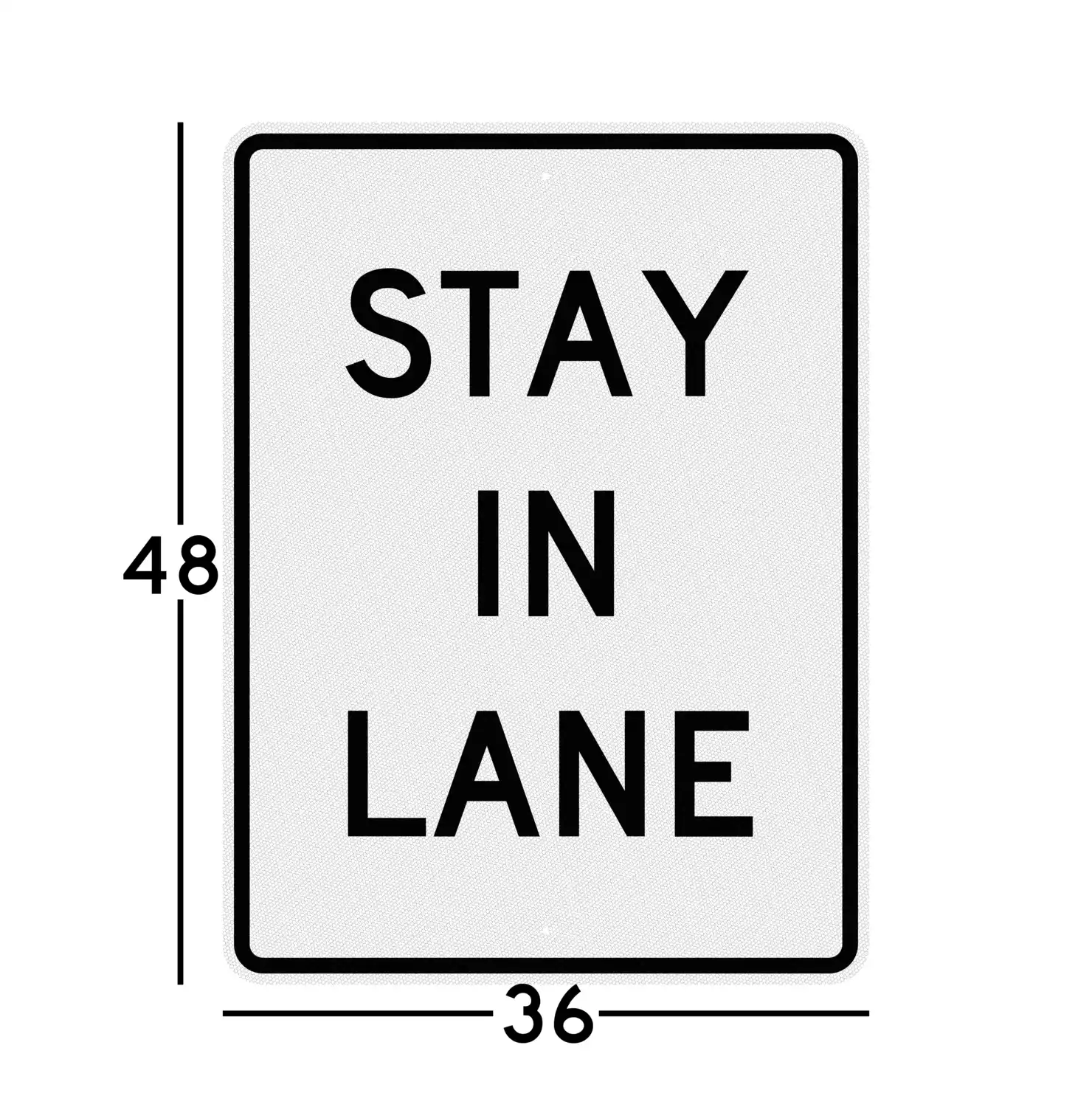

Available Sizes and Weights:Size: 18" x 24"; Ship Weight: 3.7 lbs
Size: 24" x 30"; Ship Weight: 6.2 lbs
Size: 36" x 48"; Ship Weight: 14.9 lbs
Size: 48" x 60"; Ship Weight: 24.8 lbs
Available Styles:High Intensity Prismatic Reflective on .080" Aluminum
Full Cube Prismatic Reflective on .080" Aluminum
Full Description:

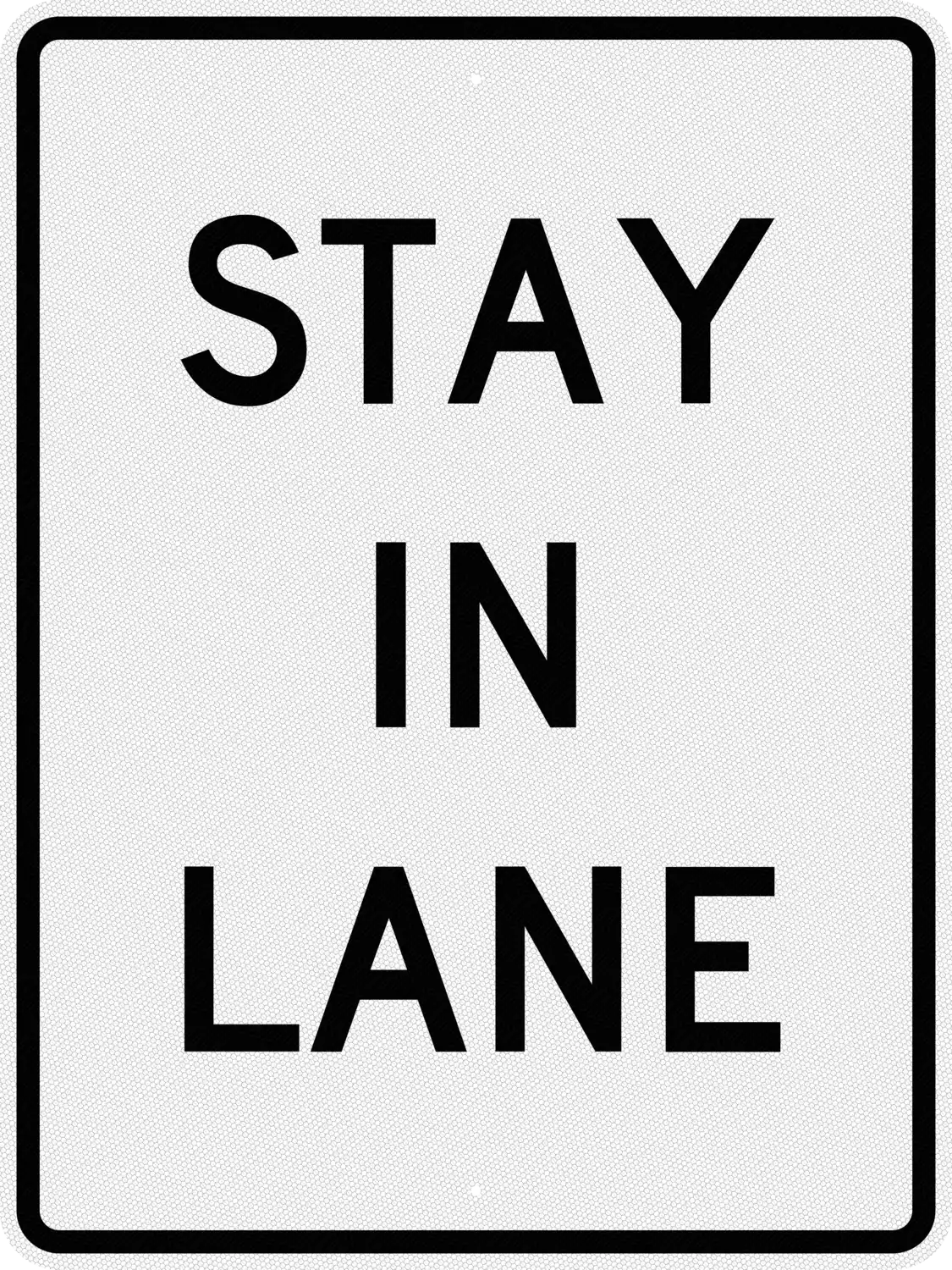

R4-9 have a white background color. The text and border are black and it is in the shape of a vertical rectangle.

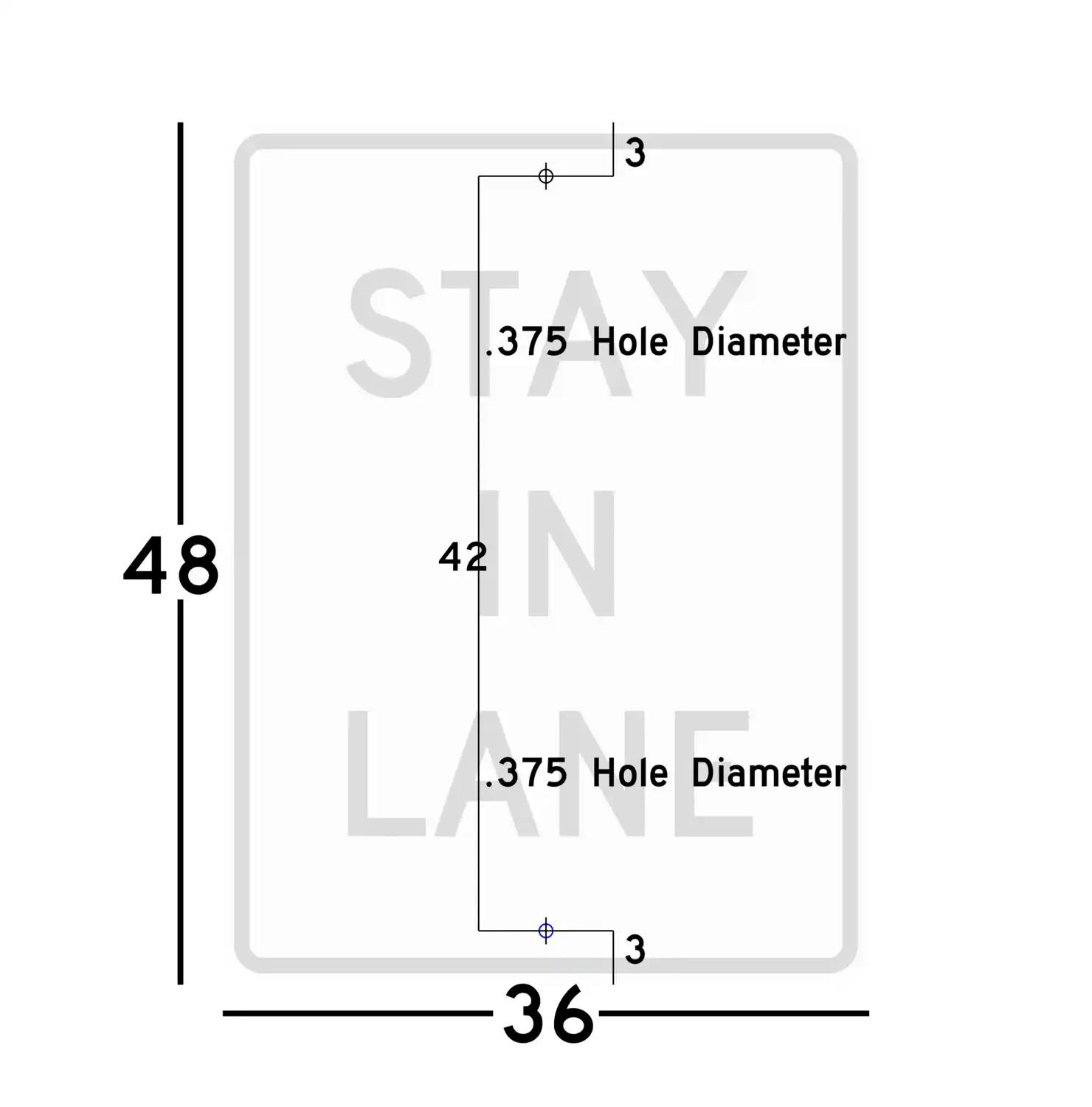

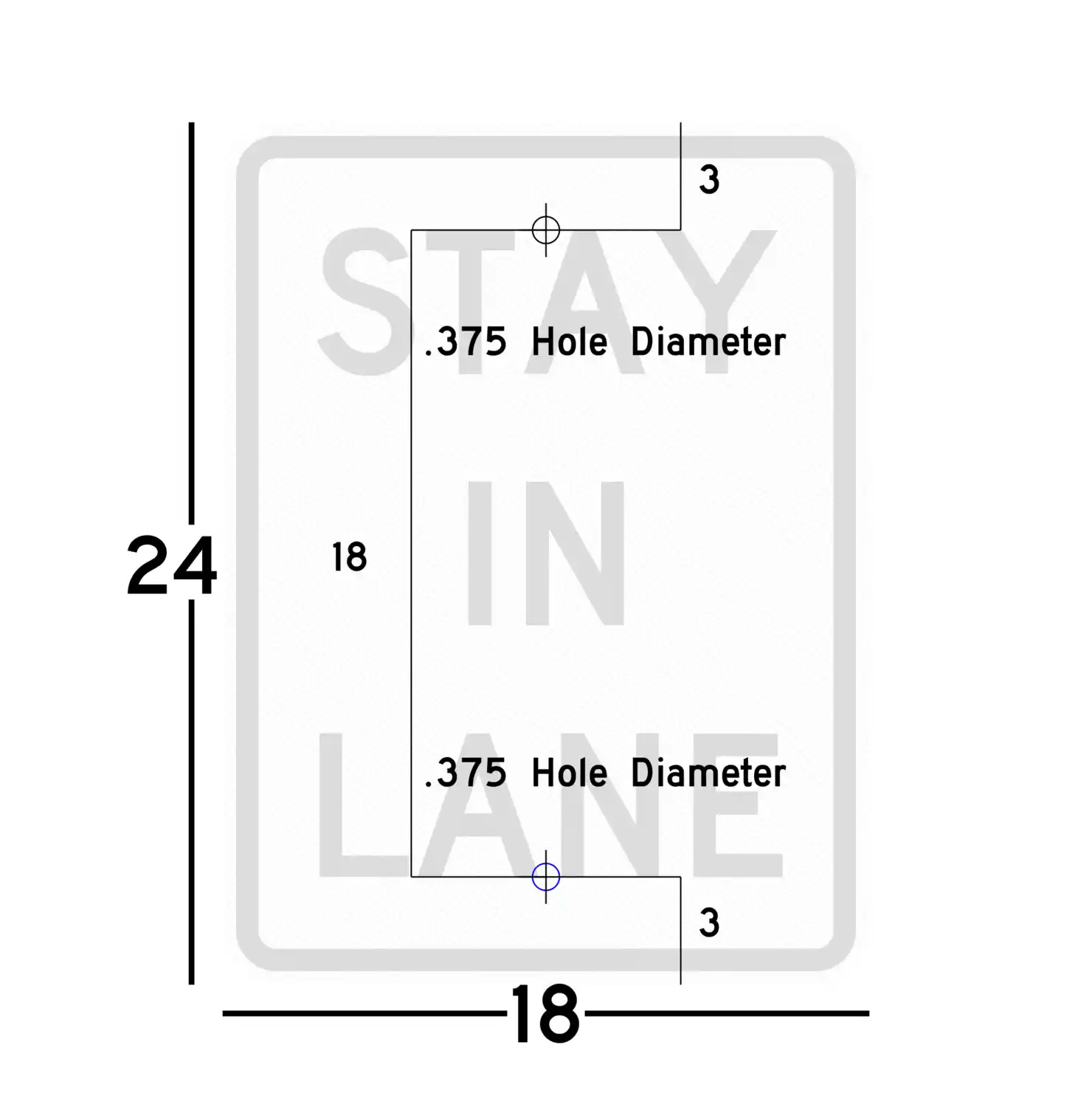

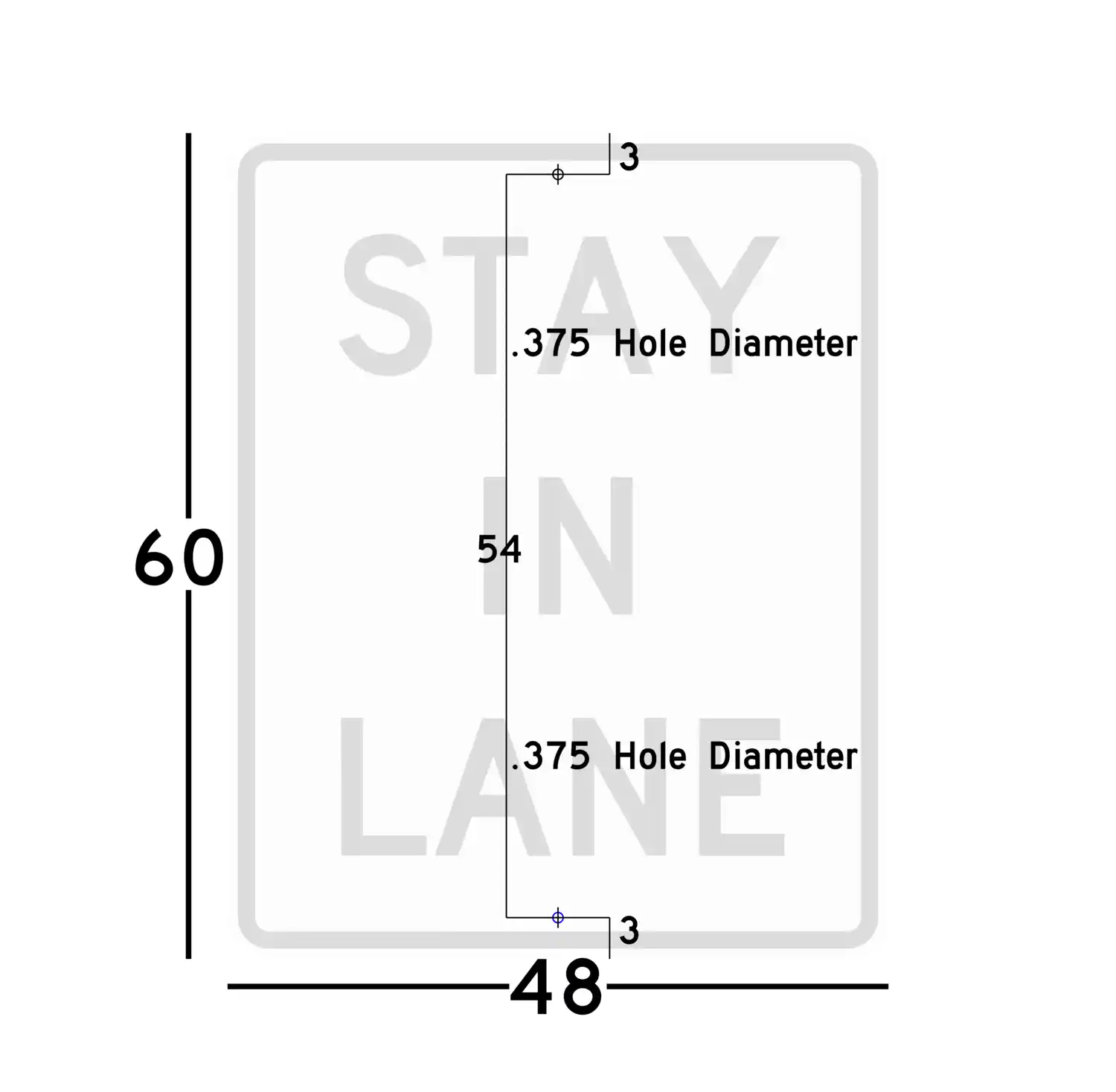

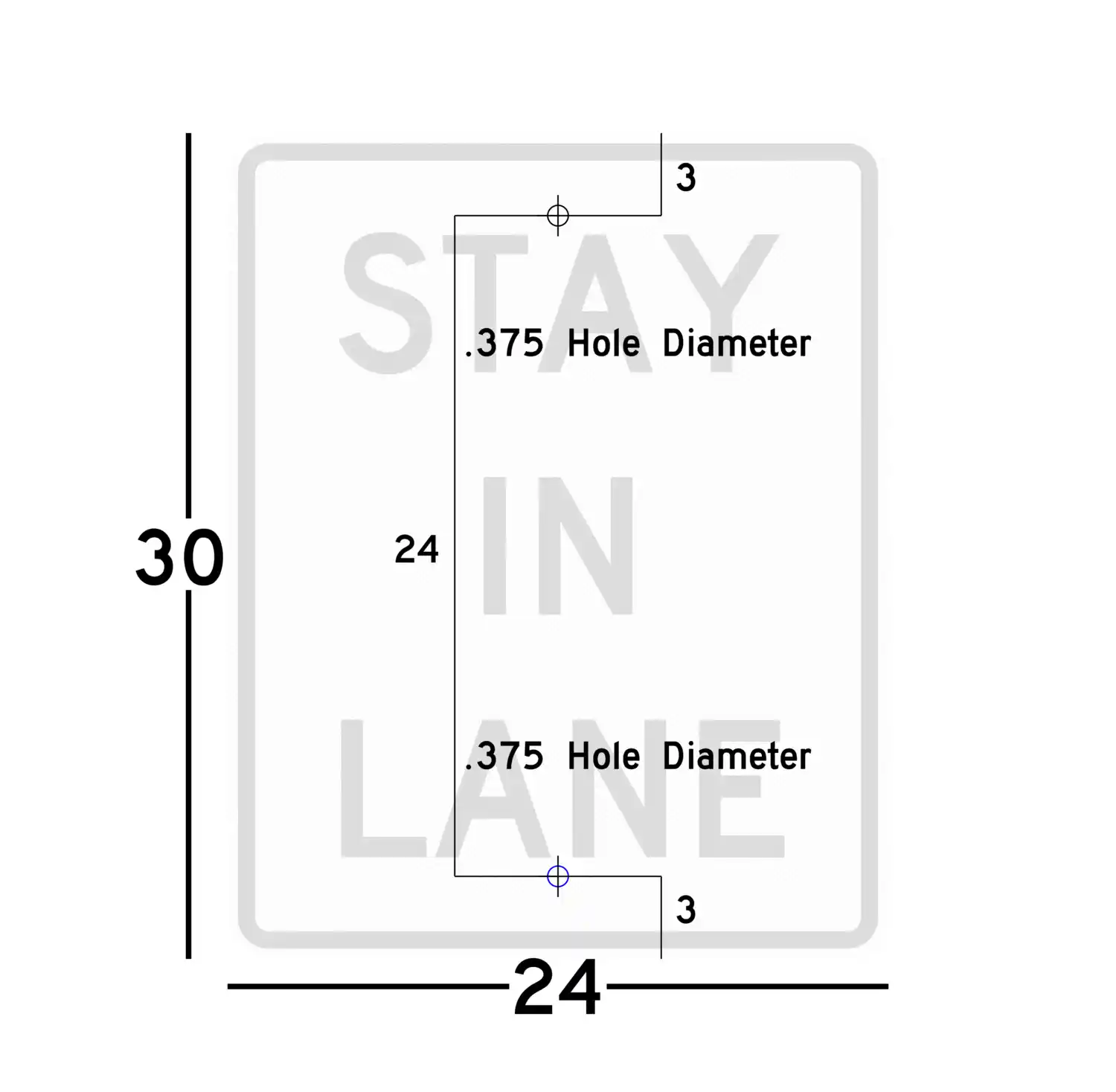

Mounting Hole Placement: Mounting Hole Diagram for Stay In Lane Sign
