Photo Enforced Signs
SKU# R10-19aP
Photo Enforced Sign Details:
- Sign is manufactured on durable rust-proof .080" aluminum

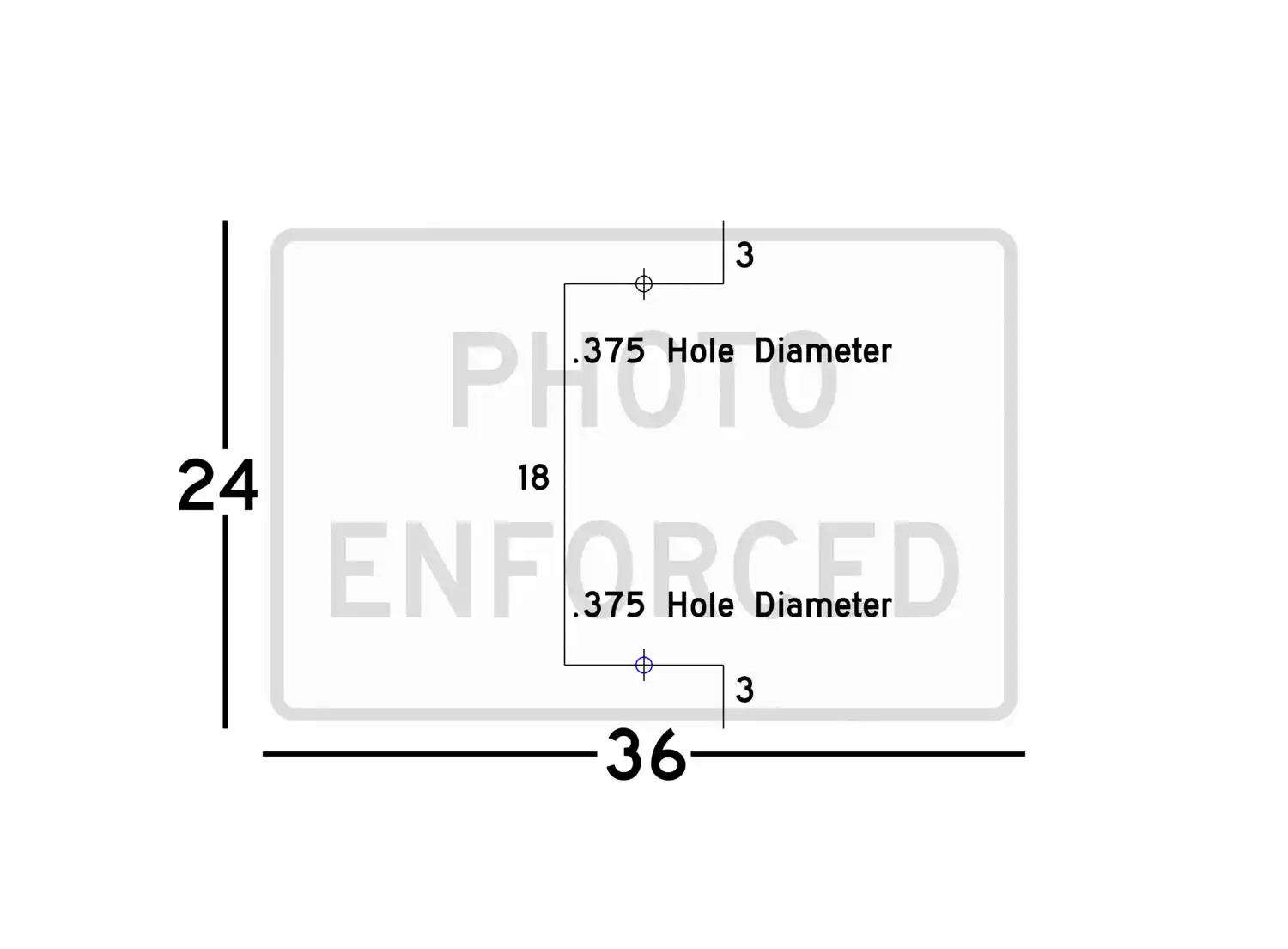

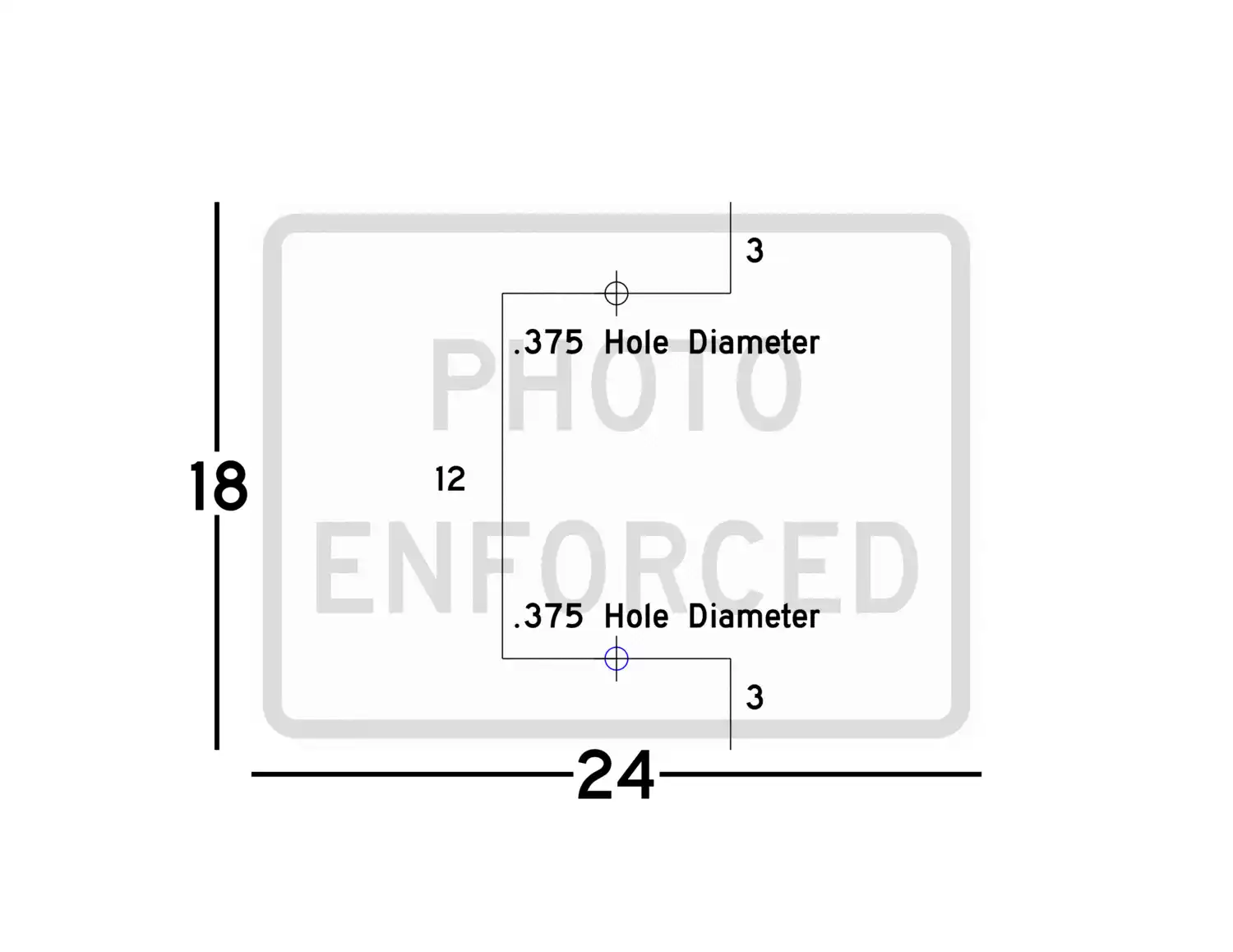

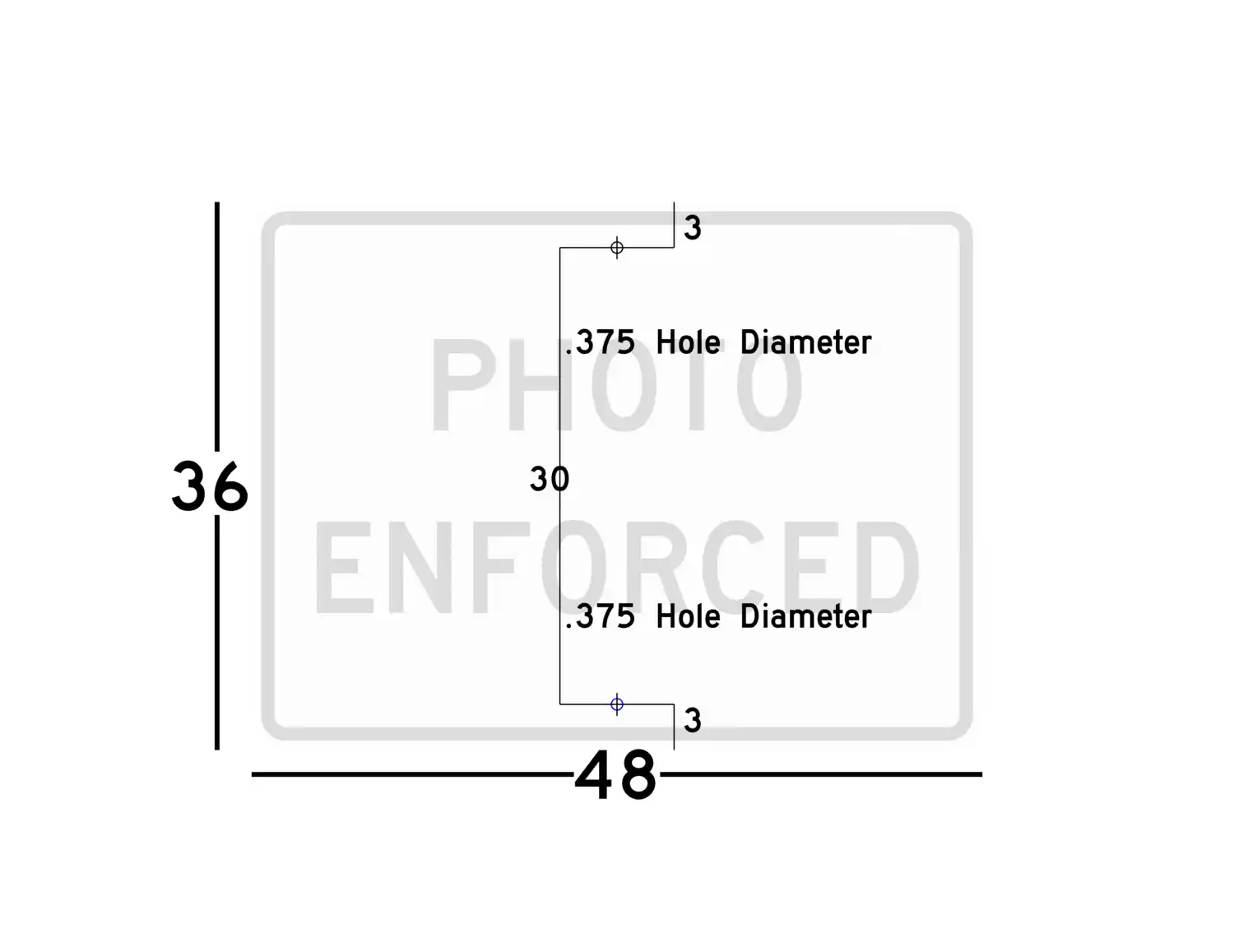

- Pre-punched 3/8" mounting holes in top and bottom for easy installation.
- Meets M.U.T.C.D. specifications for highway use.
- See in our catalog on page 11.
PRICE TABLE
High Intensity Prismatic Reflective on .080" Aluminum:
| MATERIAL | SIZE | PRICE | ADD TO CART | Catalog Part # |
|---|---|---|---|---|
High Intensity Prismatic | 24" x 18" | 1 to 4: $58.19 5 to 9: $55.28 10 +: $52.37 |
R10-19aP-2418-HIP | |
| 36" x 30" | 1 to 4: $114.29 5 to 9: $108.58 10 +: $102.86 |
R10-19aP-3630-HIP | ||
| 48" x 36" | 1 to 4: $213.51 5 to 9: $202.83 10 +: $192.16 |
R10-19aP-4836-HIP |
In Stock - Usually ships same or next business day.
Full Cube Prismatic Reflective on .080" Aluminum:| MATERIAL | SIZE | PRICE | ADD TO CART | Catalog Part # |
|---|---|---|---|---|
Full Cube Prismatic | 24" x 18" | 1 to 4: $66.66 5 to 9: $63.33 10 +: $59.99 |
R10-19aP-2418-UPG | |
| 36" x 30" | 1 to 4: $126.28 5 to 9: $119.97 10 +: $113.65 |
R10-19aP-3630-UPG | ||
| 48" x 36" | 1 to 4: $238.92 5 to 9: $226.97 10 +: $215.03 |
R10-19aP-4836-UPG |
In Stock - Usually ships same or next business day.
Available Reflective Finishes:
| High Intensity Prismatic Reflective | Full Cube Prismatic Reflective |
|---|---|
|
|
Sign Posts
Sign Installation Hardware
Sign Installation Hardware
Other Signalized Intersection Signs
Catalog Page 10
Click to view
Catalog Page 11
Click to view
Catalog Page 12
Click to view
Specifications:

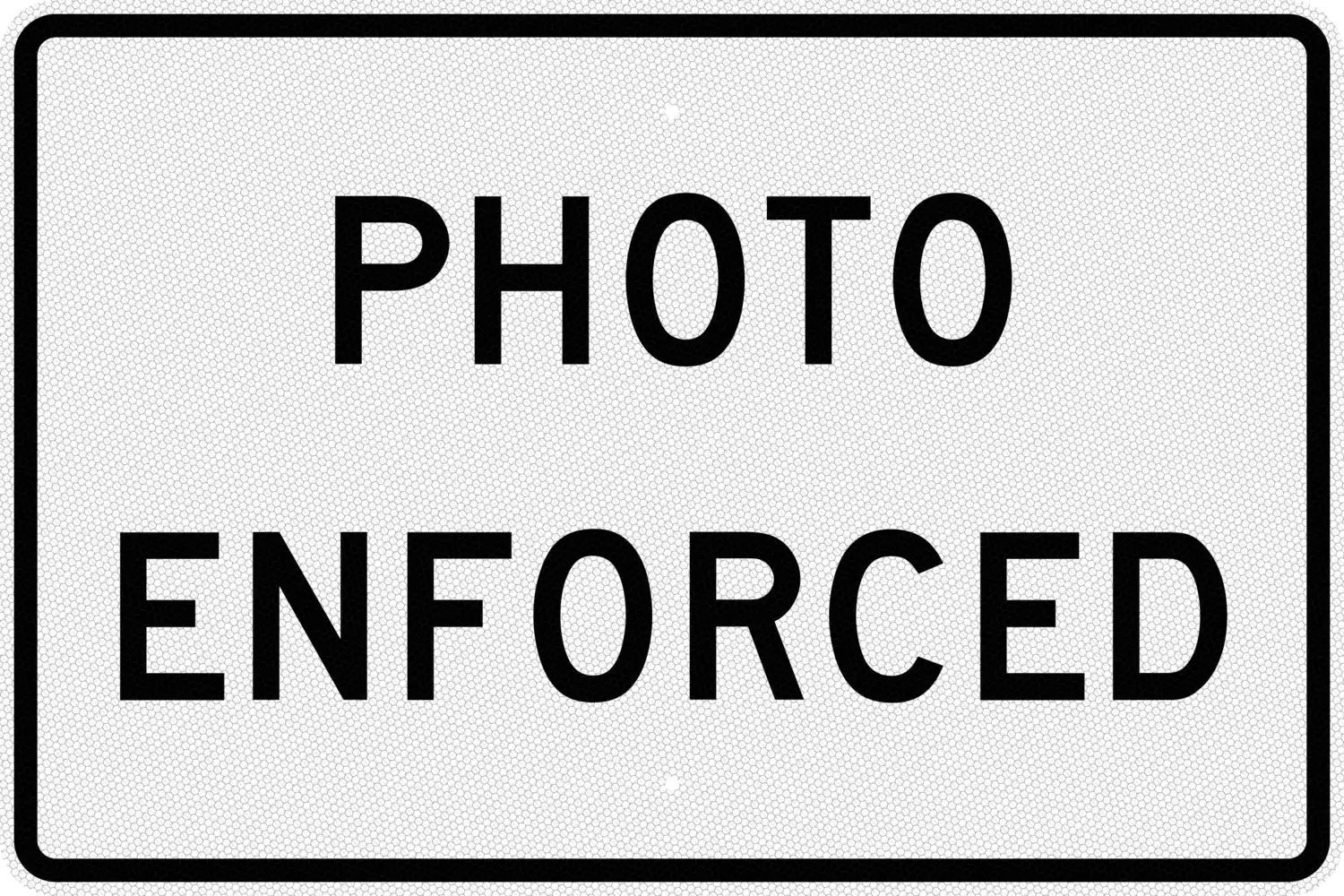

| Legend: | PHOTO ENFORCED |
| MUTCD Sign Code #: | R10-19aP |
| Shape: | Horizontal Rectangle |
| Color: | BLACK on WHITE |

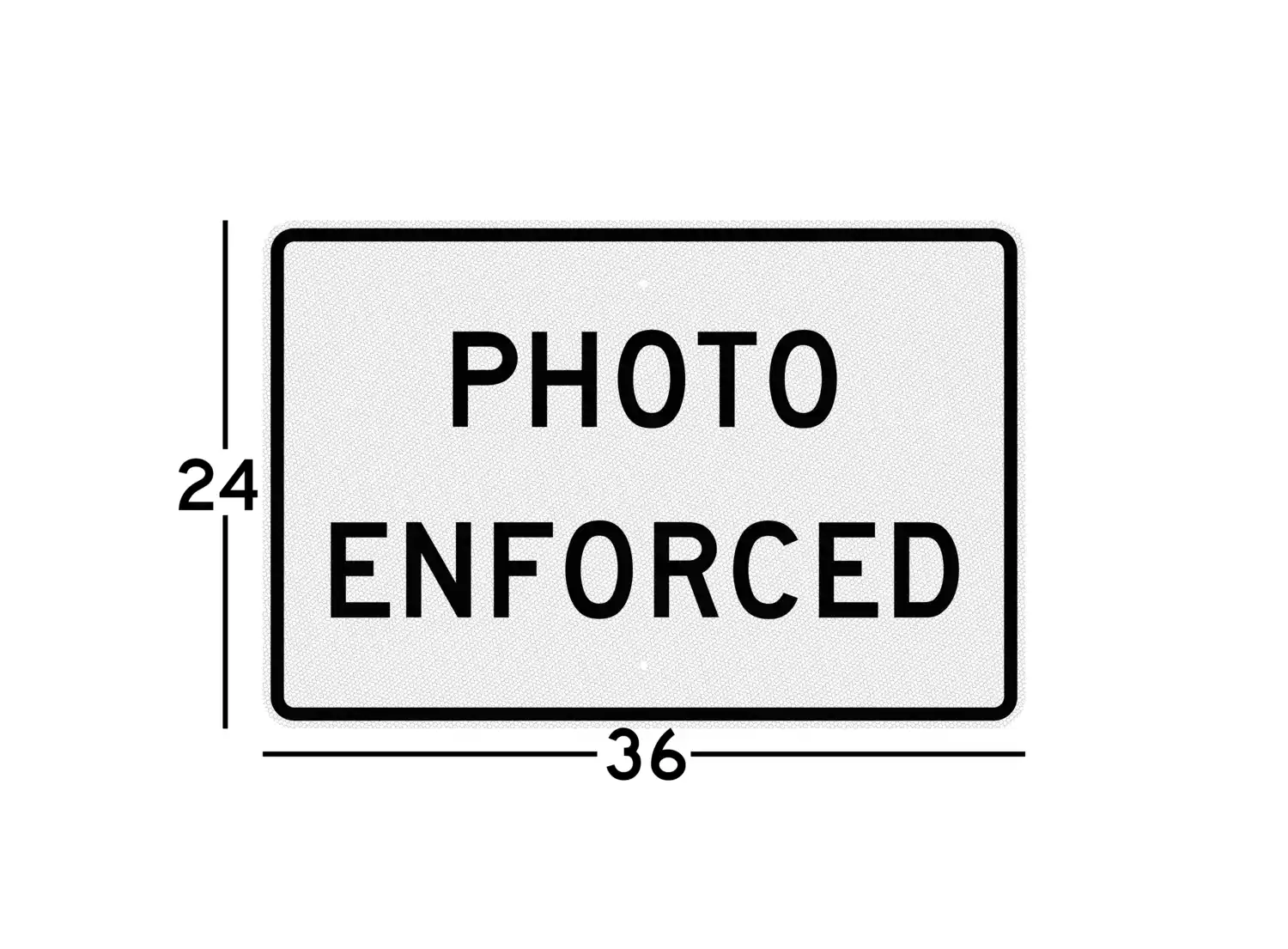

| Available Sizes and Weights: | Size: 24" x 18"; Ship Weight: 3.7 lbs |
| Size: 36" x 30"; Ship Weight: 9.3 lbs | |
| Size: 48" x 36"; Ship Weight: 14.9 lbs | |
| Available Styles: | High Intensity Prismatic Reflective on .080" Aluminum |
| Full Cube Prismatic Reflective on .080" Aluminum | |
| Full Description: | R10-19aP have a white background color. The text and border are black and it is in the shape of a horizontal rectangle. |
