Speed Bump Signs
The MUTCD W17-1M Speed Bump Sign is a warning sign used to alert drivers about upcoming speed bumps on the road. Its purpose is to encourage drivers to reduce their speed and navigate safely over the bumps, minimizing potential damage to their vehicles and improving overall road safety. This is a modified version of the W17-1 where MUTCD allows for the legend SPEED BUMP to be used.
MUTCD W17-1 Guidance
Speed Bump Sign Details:
- Sign is manufactured on durable rust-proof .080" aluminum
- Pre-punched 3/8" mounting holes in top and bottom for easy installation.
- Meets M.U.T.C.D. specifications for highway use.
In Stock - Usually ships same or next business day.
High Intensity Prismatic Reflective on .080" Aluminum:
MATERIAL | SIZE | PRICE PER SIGN | ADD TO CART | Catalog Part # | ||
---|---|---|---|---|---|---|
1 to 4 | 5 to 9 | 10 + | ||||
![]() High Intensity Prismatic | 24" x 24" | $72.60 | $68.97 | $65.34 | W17-1M-2424-HIP | |
30" x 30" | $97.90 | $93.01 | $88.11 | W17-1M-3030-HIP | ||
36" x 36" | $163.79 | $155.60 | $147.41 | W17-1M-3636-HIP | ||
48" x 48" | $244.20 | $231.99 | $219.78 | W17-1M-4848-HIP |
Fluorescent Yellow Prismatic Reflective on .080" Aluminum:
MATERIAL | SIZE | PRICE PER SIGN | ADD TO CART | Catalog Part # | ||
---|---|---|---|---|---|---|
1 to 4 | 5 to 9 | 10 + | ||||
![]() Fluorescent Yellow Prismatic | 24" x 24" | $80.85 | $76.81 | $72.77 | W17-1M-2424-FYP | |
30" x 30" | $117.81 | $111.92 | $106.03 | W17-1M-3030-FYP | ||
36" x 36" | $179.08 | $170.13 | $161.17 | W17-1M-3636-FYP | ||
48" x 48" | $308.44 | $293.02 | $277.60 | W17-1M-4848-FYP |
Available Reflective Finishes:
High Intensity Prismatic Reflective | Fluorescent Yellow Prismatic Reflective |
---|---|
![]() ![]()
|
![]() ![]()
|
![]() | ![]() | ![]() |
![]() |
Sign Posts
Sign Installation Hardware
Other Miscellaneous Warning Signs
Specifications:
Legend: | SPEED BUMP |
MUTCD Sign Code #: | W17-1M |
Shape: | Diamond |
Color: | BLACK on YELLOW |

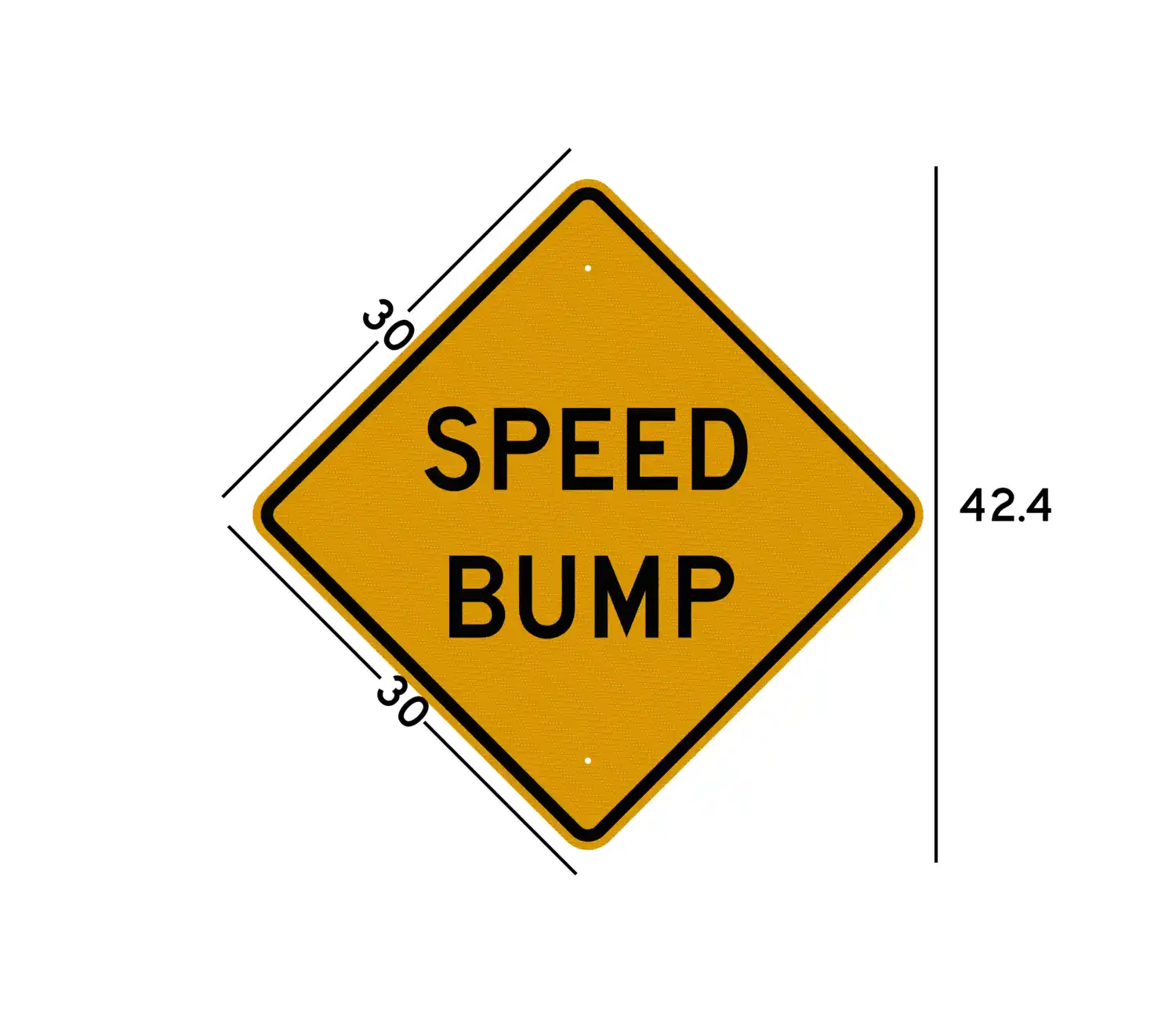

Available Sizes and Weights: | Size: 24" x 24"; Ship Weight: 5 lbs |
Size: 30" x 30"; Ship Weight: 7.8 lbs | |
Size: 36" x 36"; Ship Weight: 11.2 lbs | |
Size: 48" x 48"; Ship Weight: 19.9 lbs | |
Available Styles: | High Intensity Prismatic Reflective on .080" Aluminum |
Fluorescent Yellow Prismatic Reflective on .080" Aluminum | |

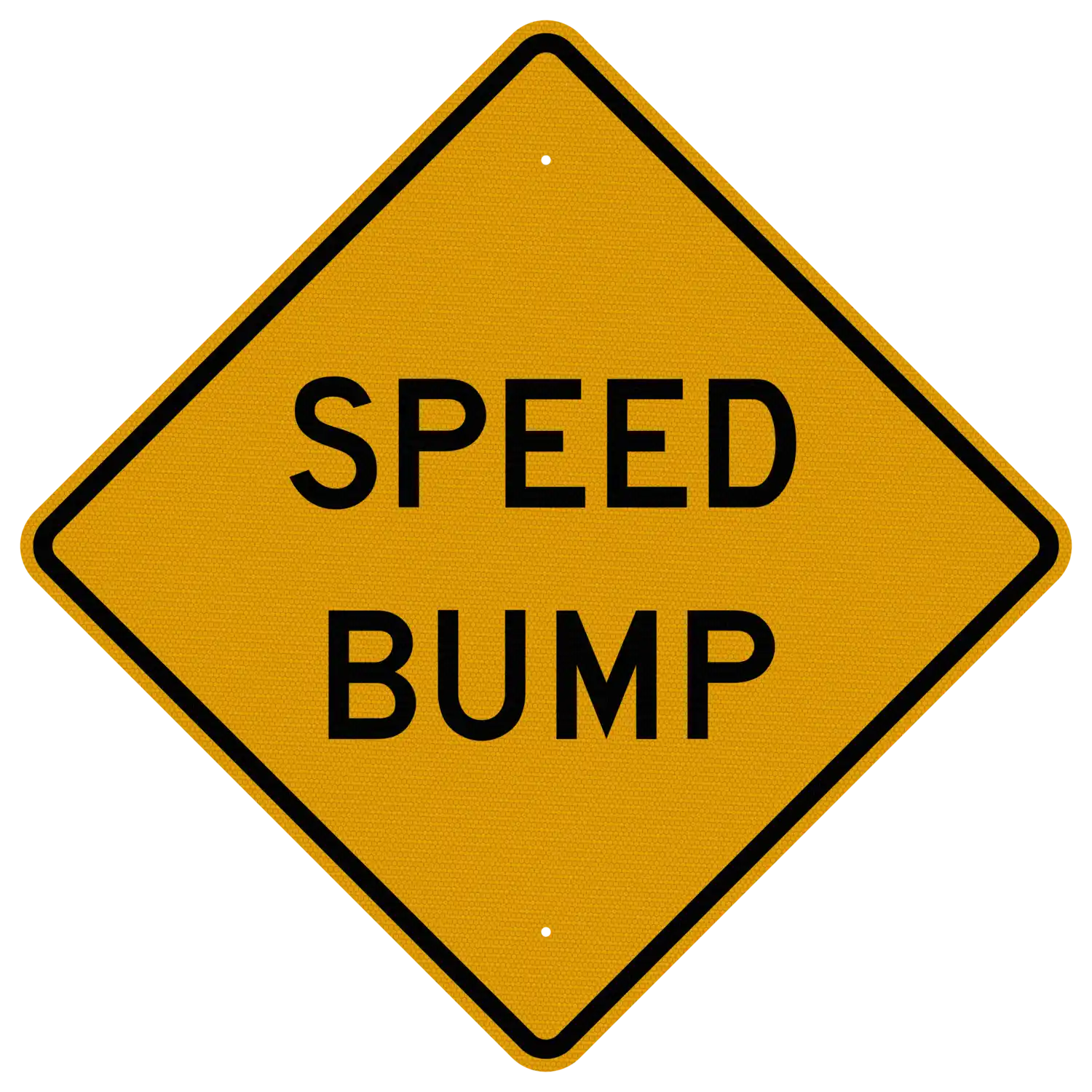

Full Description: | W17-1M have a yellow background color. The text and border are black and it is in the shape of a diamond. |

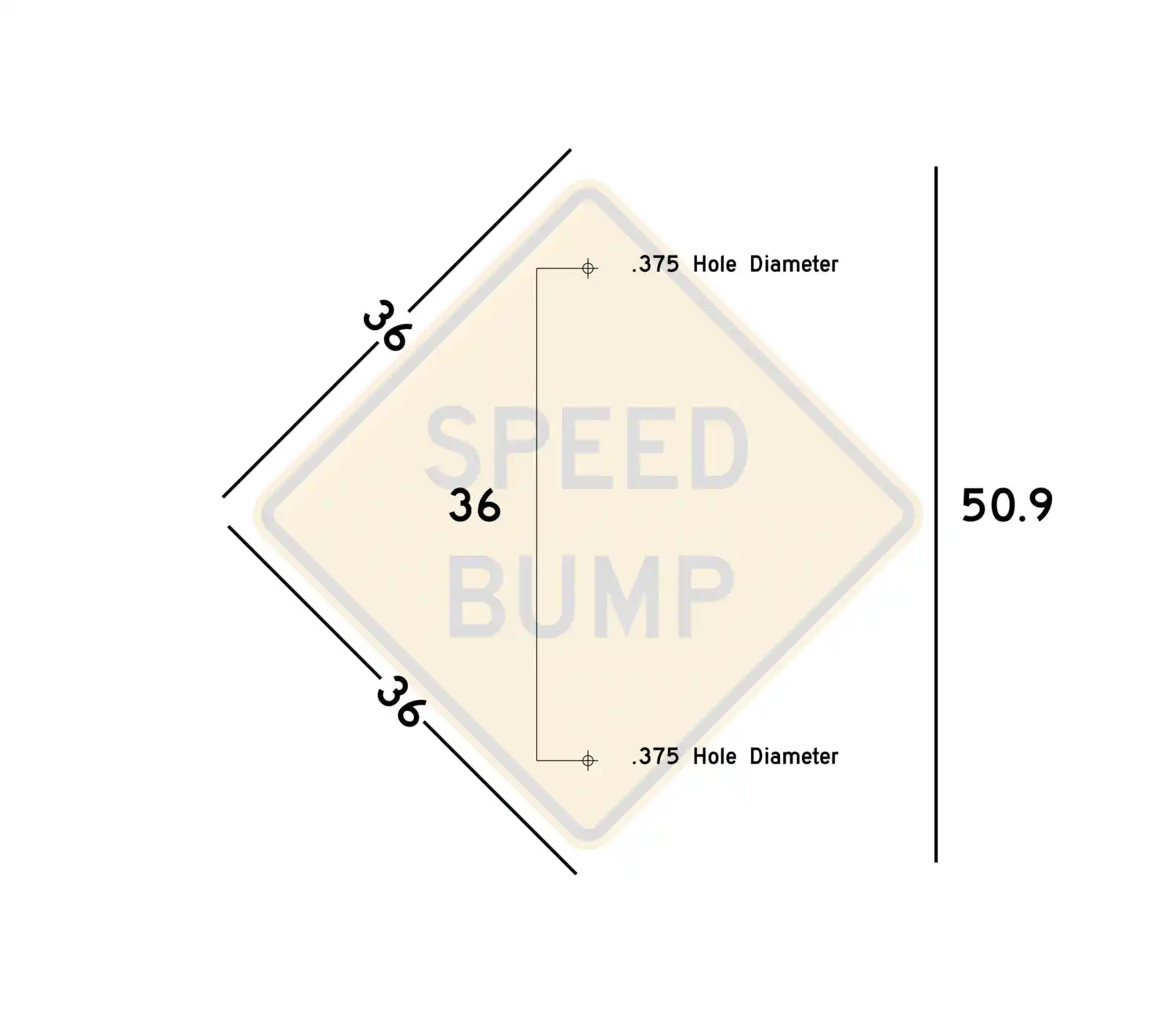

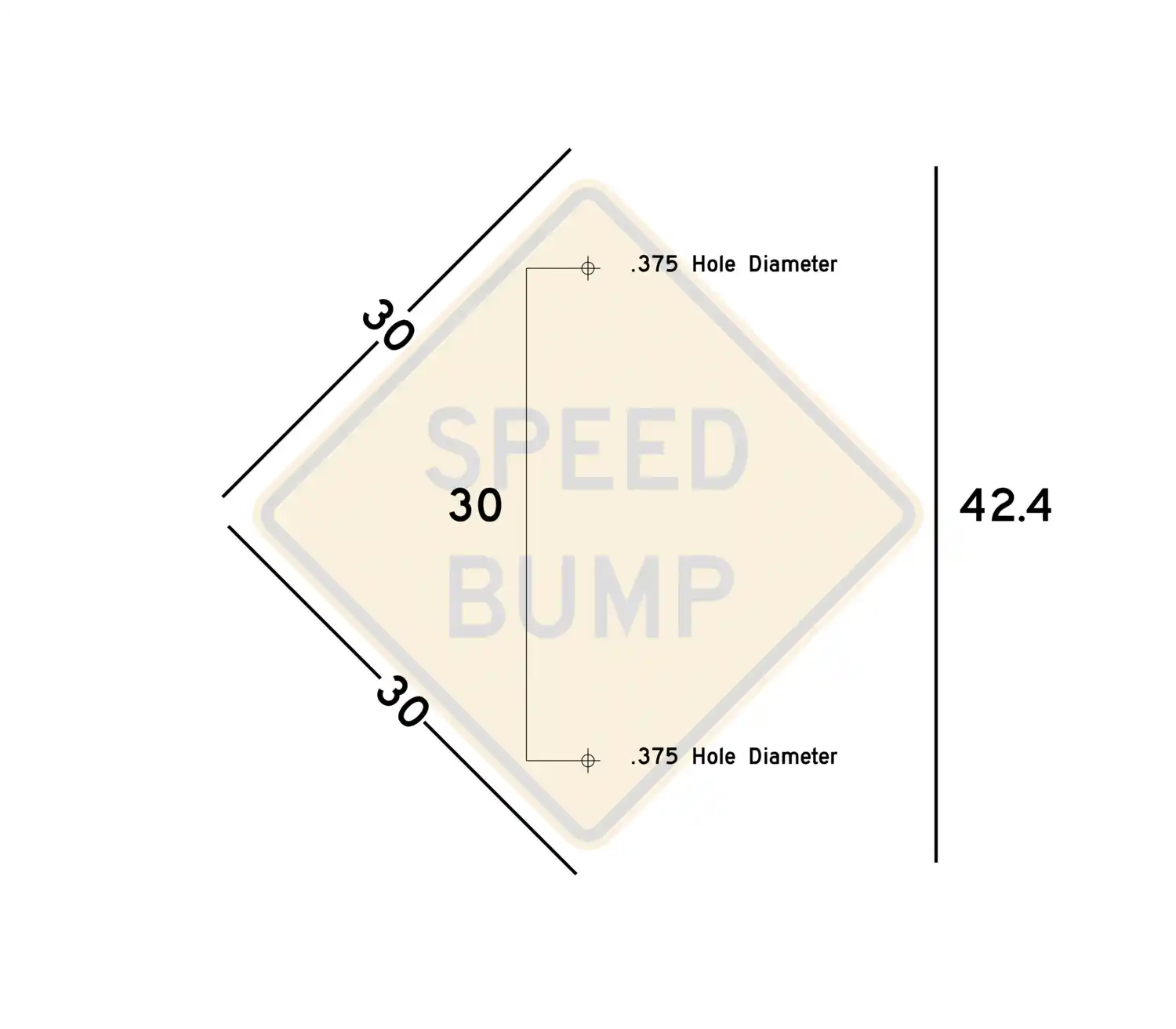

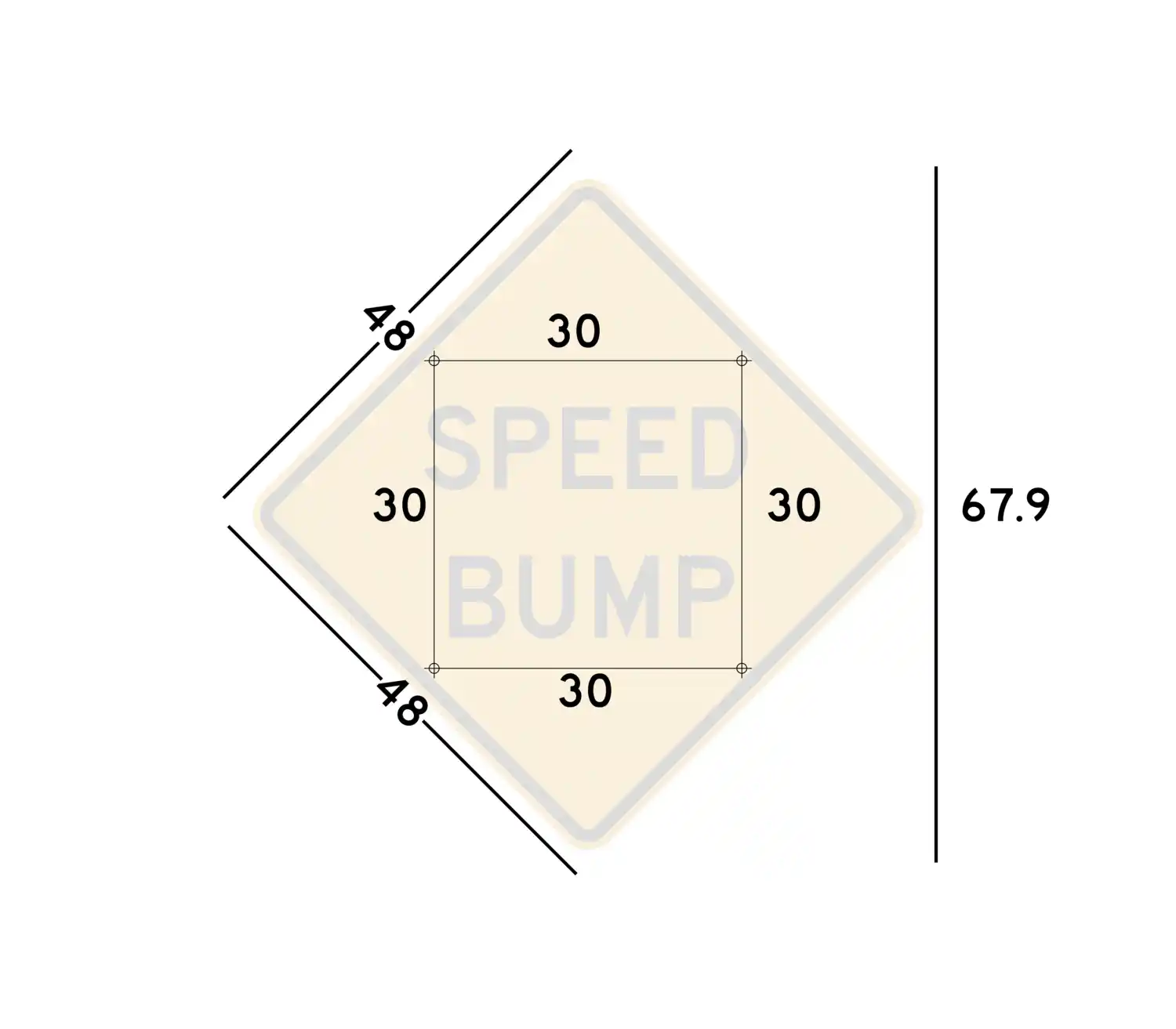

Mounting Hole Placement: | ![]() |
Example Use:
At the entrance of the Atmore Mall, the management observed that many drivers approached the main gate at speeds that were potentially hazardous for pedestrians and other vehicles. To remedy this, they installed a prominently displayed 'Speed Bump' sign. This sign was placed about 100 feet before the actual speed bump, giving drivers ample warning and time to decelerate. Additionally, the speed bump itself was painted with bright yellow stripes to increase its visibility. As a result, drivers, forewarned by the sign, began to approach the entrance with more caution, ensuring a safer environment for all mall visitors.
