Road Narrows Signs
SKU# W5-1
Road Narrows Sign Details:
- Road Narrows Sign is manufactured on durable rust-proof .080" aluminum
- Pre-punched 3/8" mounting holes in top and bottom for easy installation.
- Meets M.U.T.C.D. specifications for highway use.
- See Road Narrows Signs in our catalog on page 23.
In Stock - Usually ships same or next business day.
High Intensity Prismatic Reflective on .080" Aluminum:
| MATERIAL | SIZE | WORDING | PRICE PER SIGN | ADD TO CART | Catalog Part # | ||
|---|---|---|---|---|---|---|---|
| 1 to 4 | 5 to 9 | 10 + | |||||
High Intensity Prismatic |
♦ 24" x 24" | Road Narrows | $54.10 | $51.39 | $48.69 | W5-1-2424-HIP | |
| 30" x 30" | Road Narrows | $79.60 | $75.62 | $71.64 | W5-1-3030-HIP | ||
| 36" x 36" | Road Narrows | $98.70 | $93.77 | $88.83 | W5-1-3636-HIP | ||
| 48" x 48" | Road Narrows | $211.50 | $200.92 | $190.35 | W5-1-4848-HIP | ||
Engineer Grade Reflective on .080" Aluminum:
| MATERIAL | SIZE | WORDING | PRICE PER SIGN | ADD TO CART | Catalog Part # | ||
|---|---|---|---|---|---|---|---|
| 1 to 4 | 5 to 9 | 10 + | |||||
Engineer Grade |
♦ 24" x 24" | Road Narrows | $49.30 | $46.83 | $44.37 | W5-1-2424-ENG | |
| 30" x 30" | Road Narrows | $72.20 | $68.59 | $64.98 | W5-1-3030-ENG | ||
| 36" x 36" | Road Narrows | $102.70 | $97.56 | $92.43 | W5-1-3636-ENG | ||
| 48" x 48" | Road Narrows | $203.60 | $193.42 | $183.24 | W5-1-4848-ENG | ||
Fluorescent Yellow Prismatic Reflective on .080" Aluminum:
| MATERIAL | SIZE | WORDING | PRICE PER SIGN | ADD TO CART | Catalog Part # | ||
|---|---|---|---|---|---|---|---|
| 1 to 4 | 5 to 9 | 10 + | |||||
Fluorescent Yellow Prismatic |
♦ 24" x 24" | Road Narrows | $62.00 | $58.90 | $55.80 | W5-1-2424-FYP | |
| 30" x 30" | Road Narrows | $91.40 | $86.83 | $82.26 | W5-1-3030-FYP | ||
| 36" x 36" | Road Narrows | $121.80 | $115.71 | $109.62 | W5-1-3636-FYP | ||
| 48" x 48" | Road Narrows | $207.90 | $197.50 | $187.11 | W5-1-4848-FYP | ||
♦ Sign size is available, although not specifically included in Federal M.U.T.C.D.
Available Reflective Finishes:
| High Intensity Prismatic Reflective | Engineer Grade Reflective | Fluorescent Yellow Prismatic Reflective |
|---|---|---|
|
|
|
Catalog Page 22Click to view
Catalog Page 23Click to view
Catalog Page 24Click to view
Road Narrows Sign Specifications:
Legend: |
ROAD NARROWS |
MUTCD Sign Code #: |
W5-1 |
Shape: |
Diamond |
Color: |
BLACK on YELLOW |

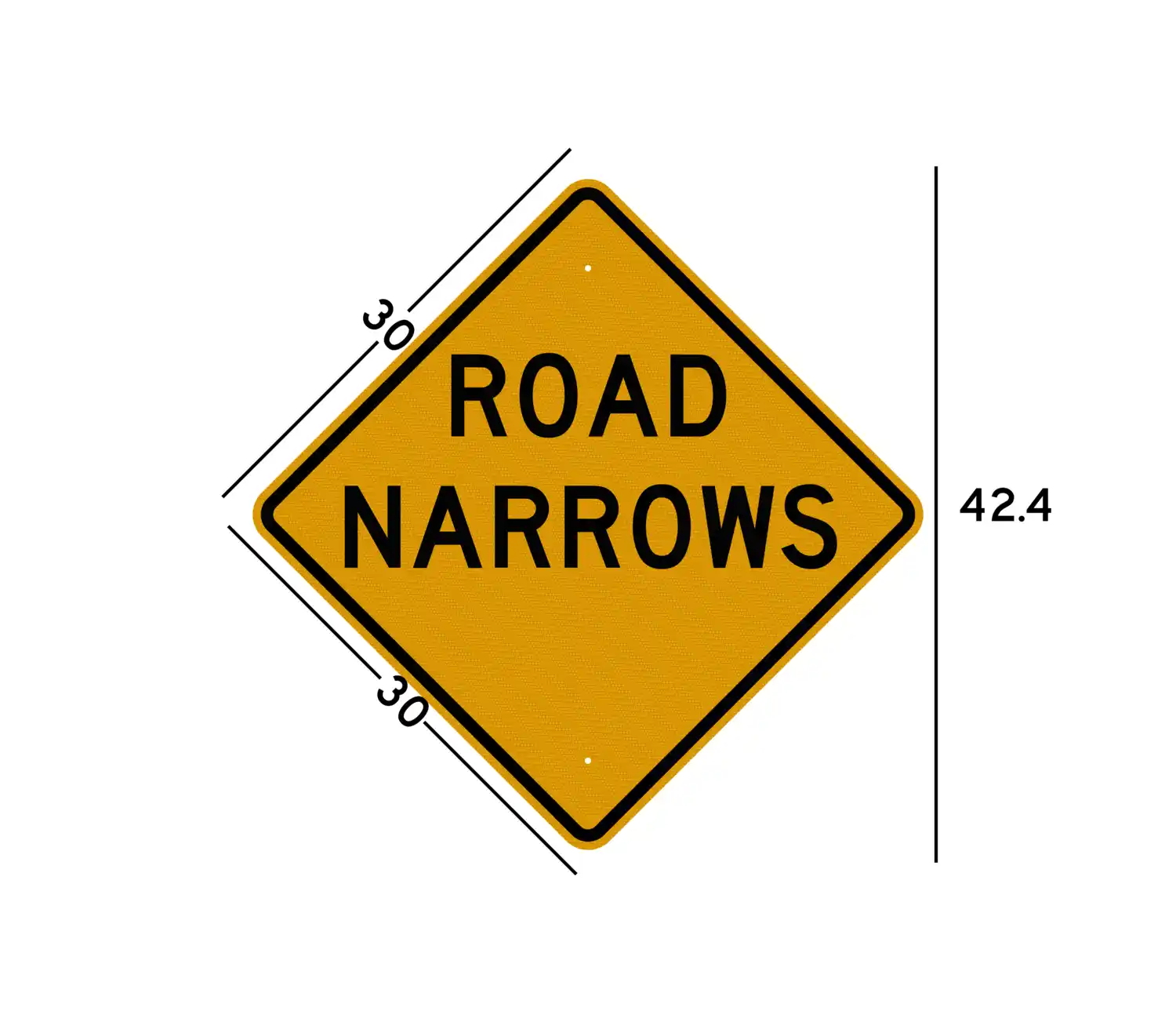

Available Road Narrows Sign Sizes and Weights: | Size: 24" x 24"; Ship Weight: 5 lbs |
| Size: 30" x 30"; Ship Weight: 7.8 lbs | |
| Size: 36" x 36"; Ship Weight: 11.2 lbs | |
| Size: 48" x 48"; Ship Weight: 19.9 lbs | |
Available Styles: | High Intensity Prismatic Reflective on .080" Aluminum |
| Engineer Grade Reflective on .080" Aluminum | |
| Fluorescent Yellow Prismatic Reflective on .080" Aluminum | |

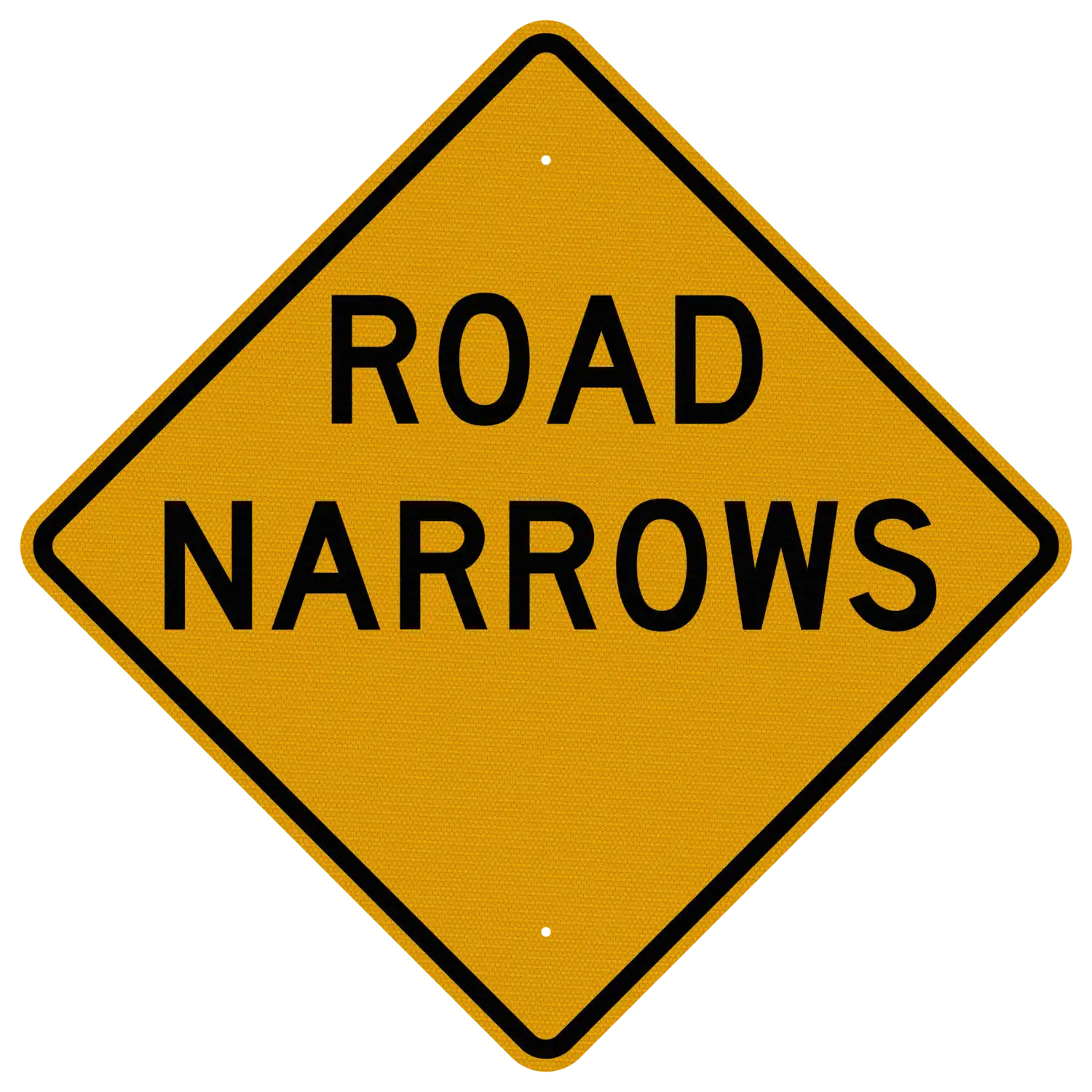

Full Road Narrows Sign Description: |
Road Narrows Signs have a yellow background color. The text and border are black. Road Narrows Signs are diamond shaped. |

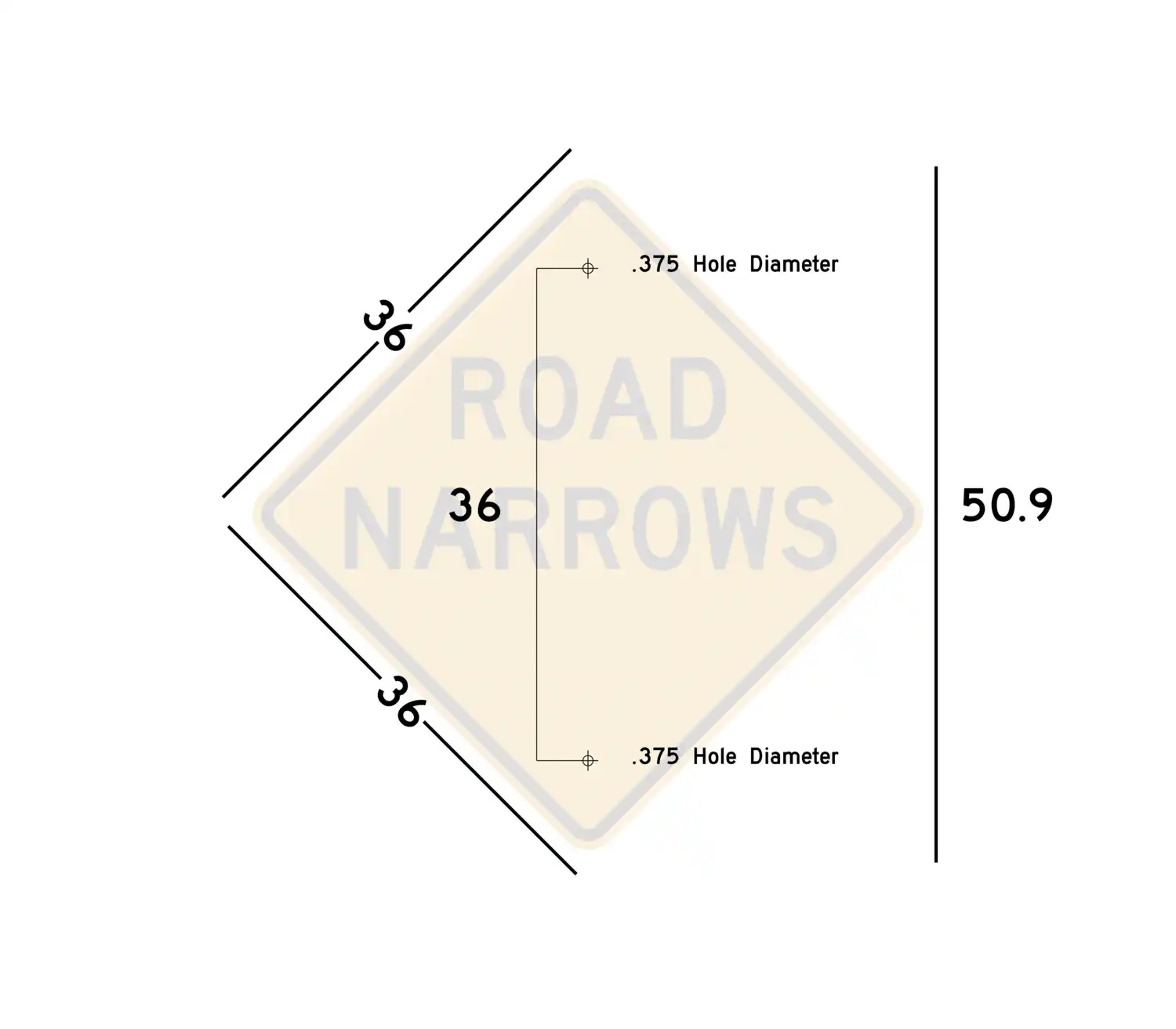

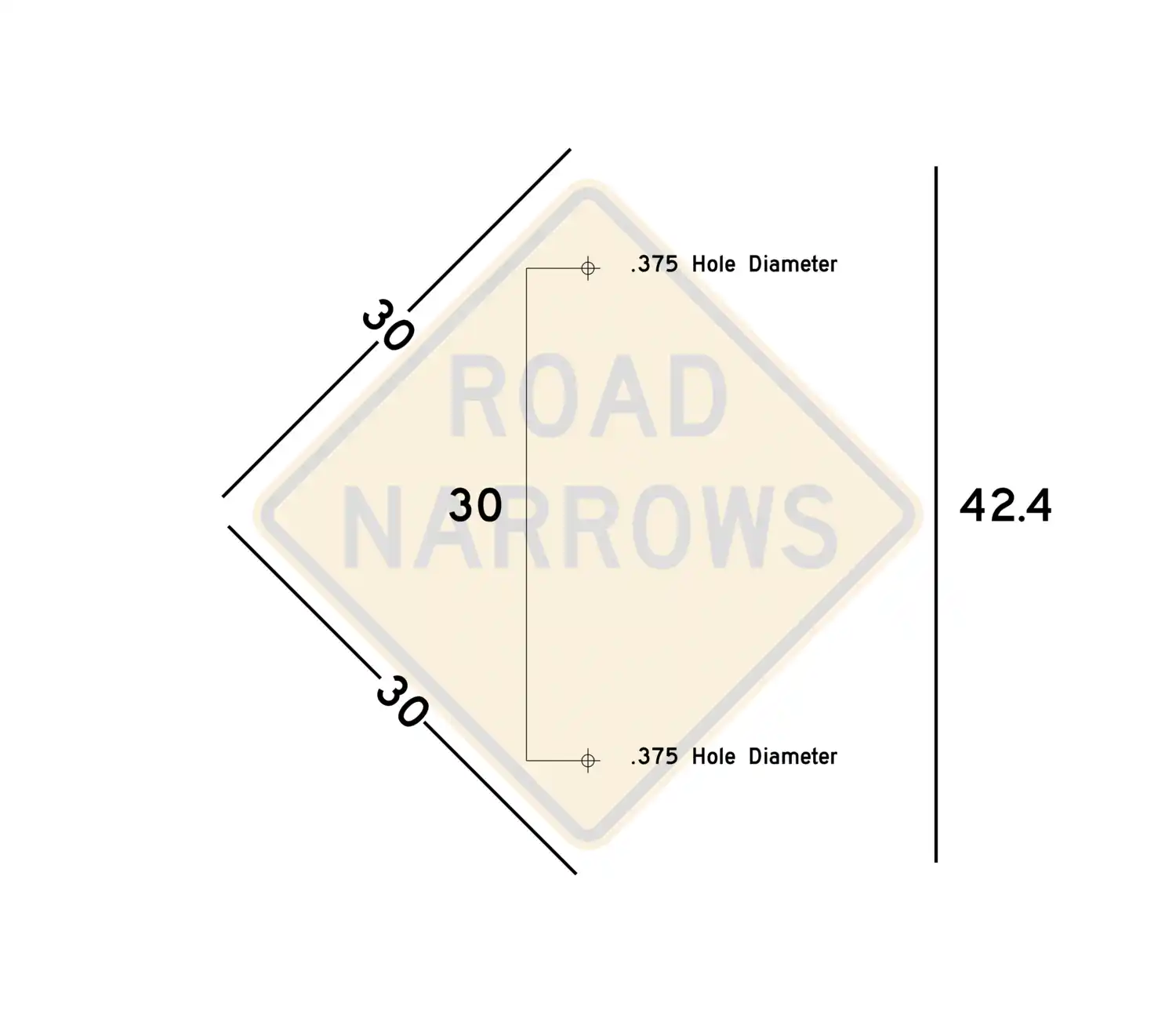

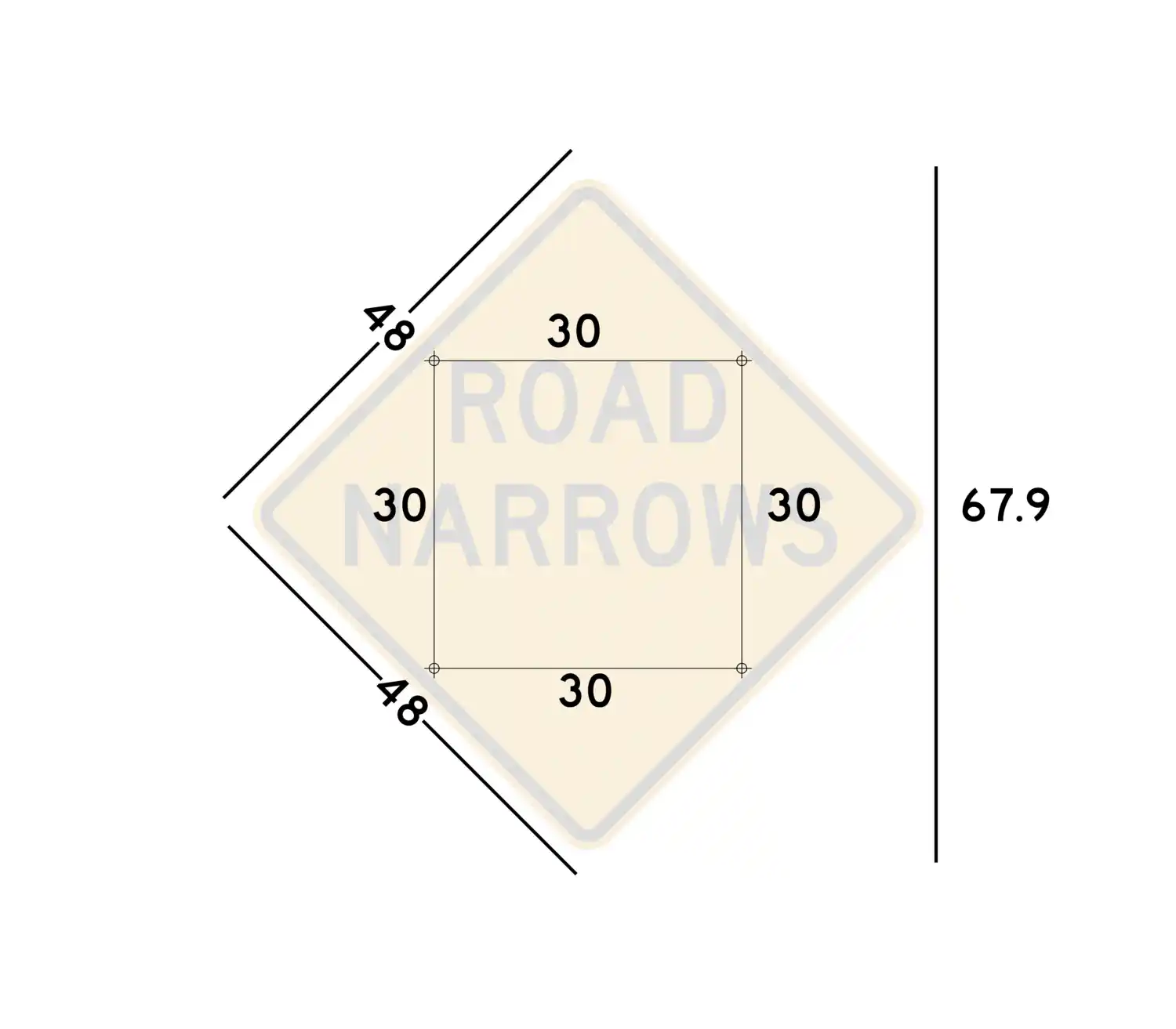

Mounting Hole Placement: |
 |
