Uneven Lanes Signs
The Uneven Lanes sign, MUTCD W8-11, indicates that the roadway ahead has uneven pavement, with one or more lanes that may be lower or higher than the adjacent lanes. It helps to warn drivers of the potential hazards associated with driving on uneven pavement and encourages them to adjust their speed and driving behavior accordingly, improving safety and reducing the risk of accidents.
Uneven Lanes Sign Details:
- Sign is manufactured on durable rust-proof .080" aluminum
- Pre-punched 3/8" mounting holes in top and bottom for easy installation.
- Meets M.U.T.C.D. specifications for highway use.
- See in our catalog on page 57.
In Stock - Usually ships same or next business day.
High Intensity Prismatic Reflective on .080" Aluminum:
MATERIAL | SIZE | PRICE PER SIGN | ADD TO CART | Catalog Part # | ||
---|---|---|---|---|---|---|
1 to 2 | 3 to 5 | 6 + | ||||
High Intensity Prismatic | 30" x 30" | $95.37 | $85.83 | $81.06 | W8-11C-3030-HIP | |
36" x 36" | $145.97 | $131.37 | $124.07 | W8-11C-3636-HIP | ||
48" x 48" | $226.93 | $204.24 | $192.89 | W8-11C-4848-HIP |
Fluorescent Orange Prismatic Reflective on .080" Aluminum:
MATERIAL | SIZE | PRICE PER SIGN | ADD TO CART | Catalog Part # | ||
---|---|---|---|---|---|---|
1 to 2 | 3 to 5 | 6 + | ||||
Fluorescent Orange Prismatic | 30" x 30" | $111.87 | $100.68 | $95.09 | W8-11C-3030-FLO | |
36" x 36" | $154.77 | $139.29 | $131.55 | W8-11C-3636-FLO | ||
48" x 48" | $245.19 | $220.67 | $208.41 | W8-11C-4848-FLO |
Available Reflective Finishes:
High Intensity Prismatic Reflective | Fluorescent Orange Prismatic Reflective |
---|---|
|
|
Sign Posts
Sign Installation Hardware
Other Road Condition Signs
Click to view
Click to view
Click to view
Click to view
Click to view
Click to view
Click to view
Click to view
Specifications:
Legend: | UNEVEN LANES |
MUTCD Sign Code #: | W8-11C |
Shape: | Diamond |
Color: | BLACK on ORANGE |

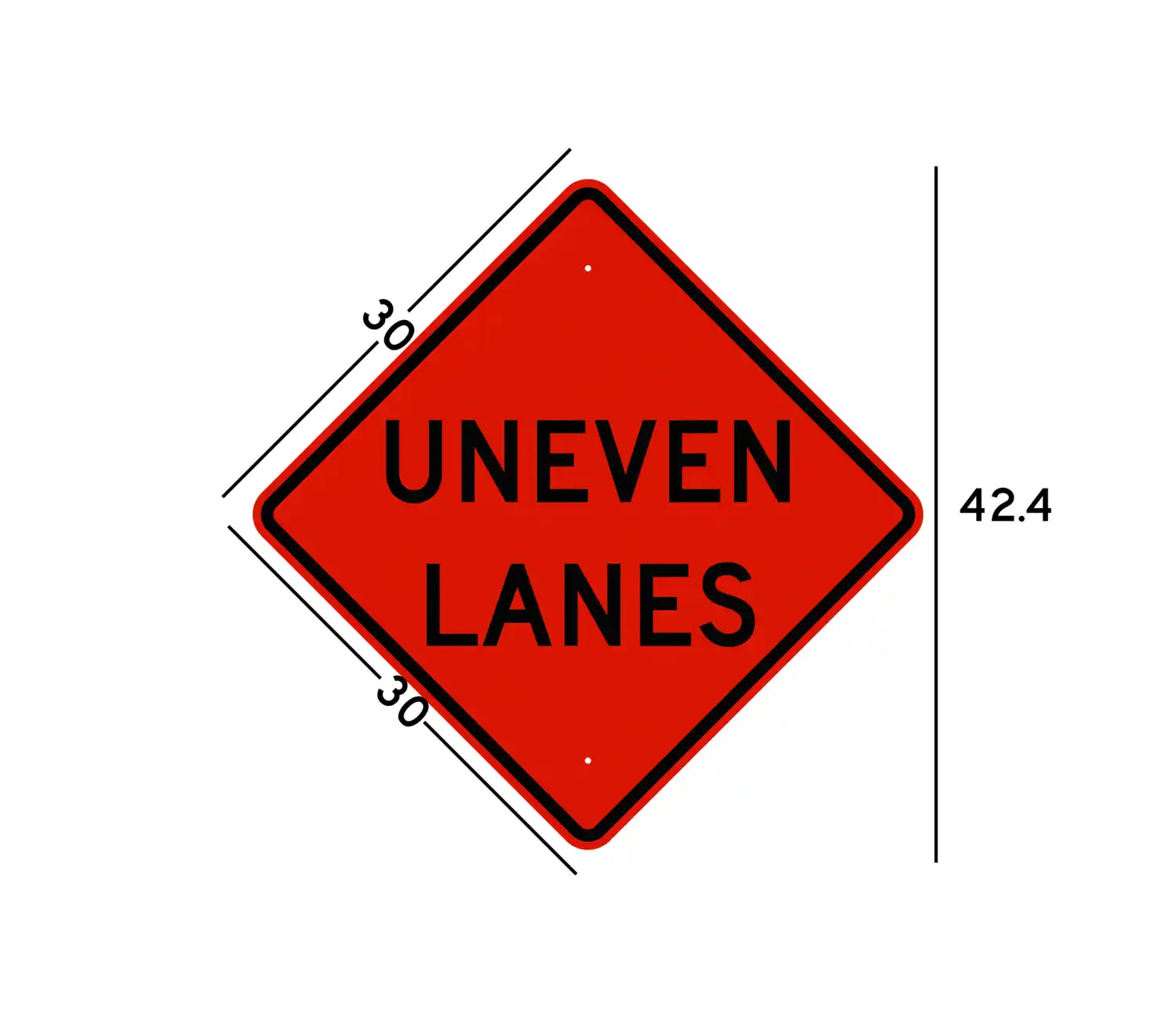

Available Sizes and Weights: | Size: 30" x 30"; Ship Weight: 7.8 lbs |
Size: 36" x 36"; Ship Weight: 11.2 lbs | |
Size: 48" x 48"; Ship Weight: 19.9 lbs | |
Available Styles: | High Intensity Prismatic Reflective on .080" Aluminum |
Fluorescent Orange Prismatic Reflective on .080" Aluminum | |

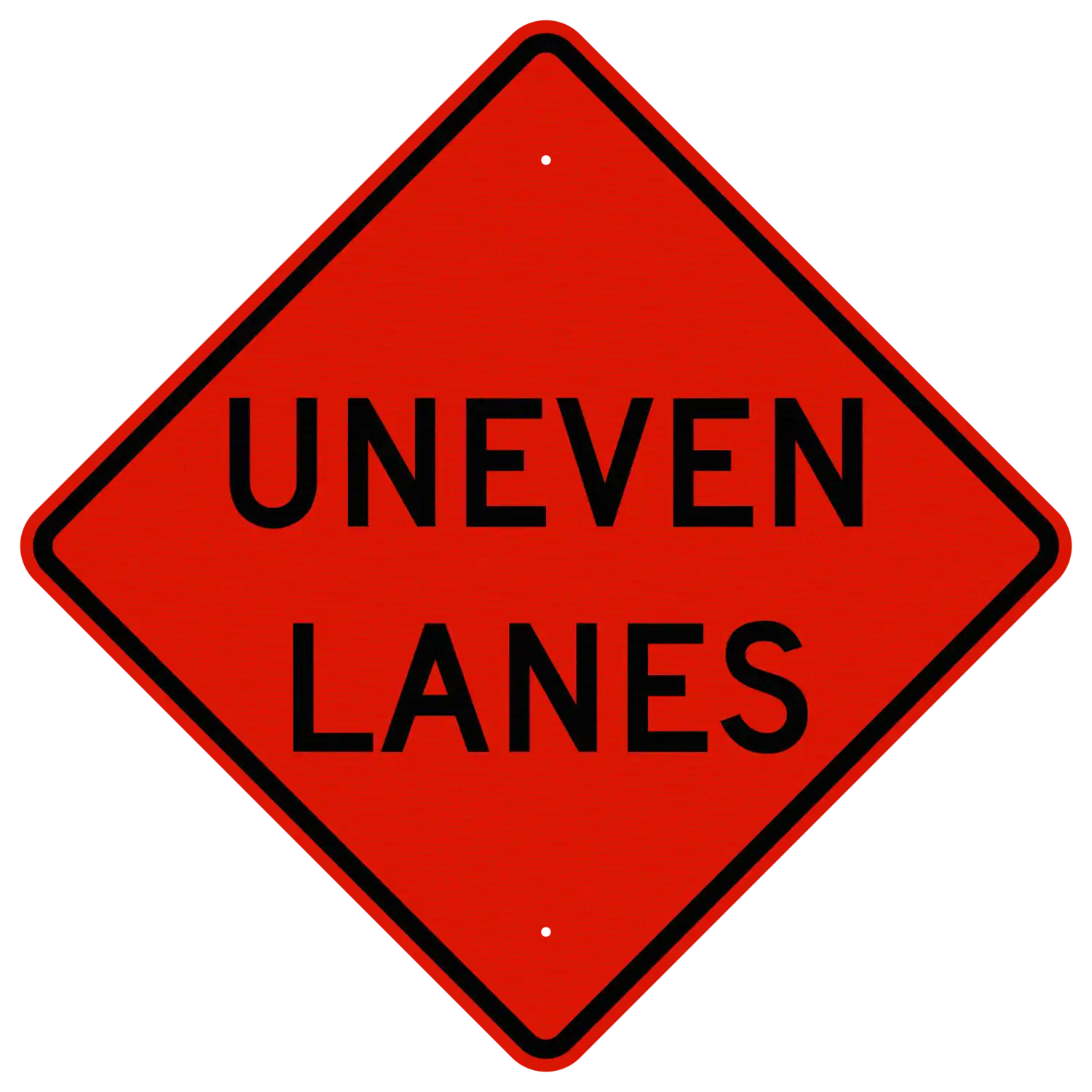

Full Description: | W8-11C have a orange background color. The text and border are black and it is in the shape of a diamond. |

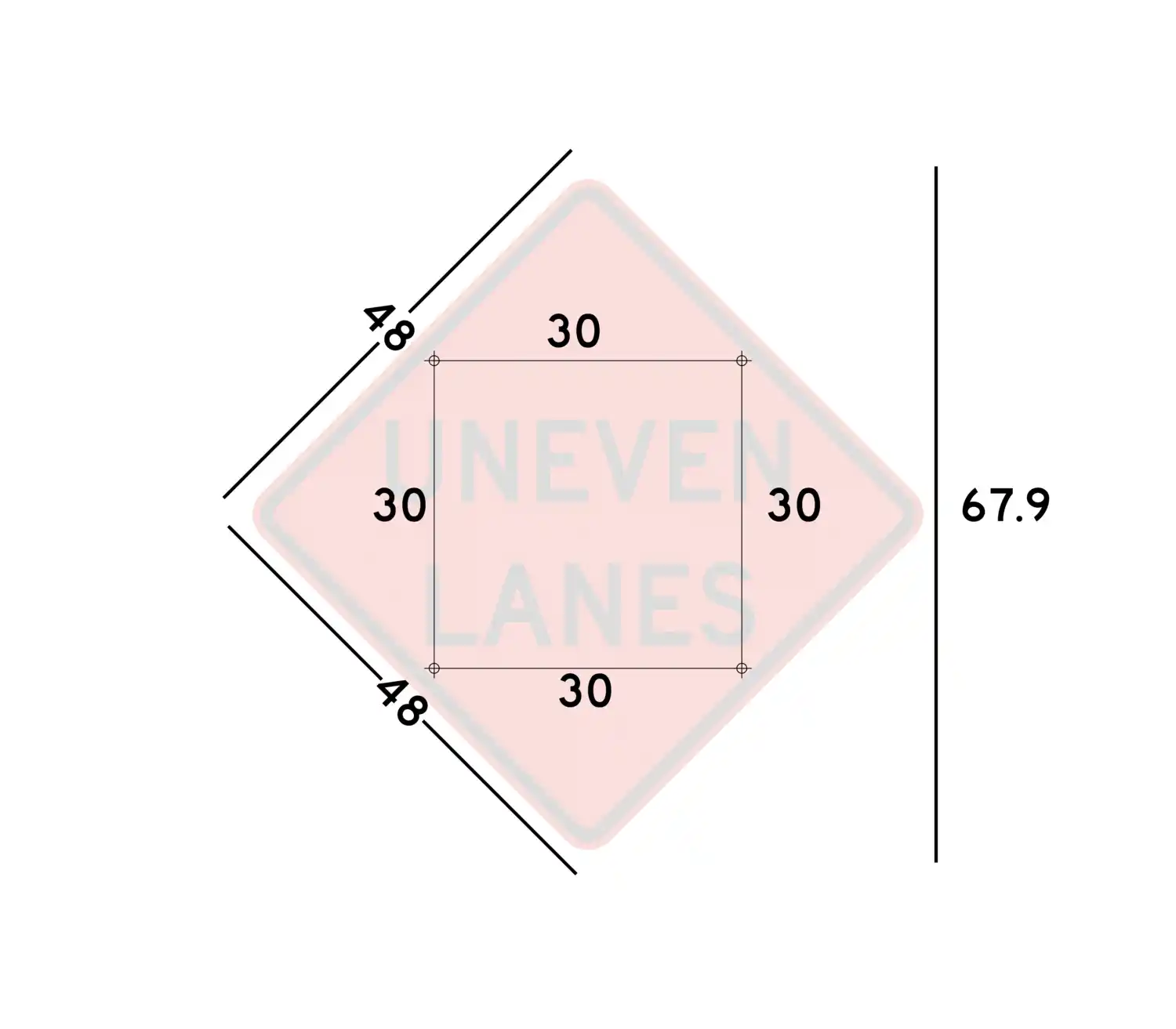

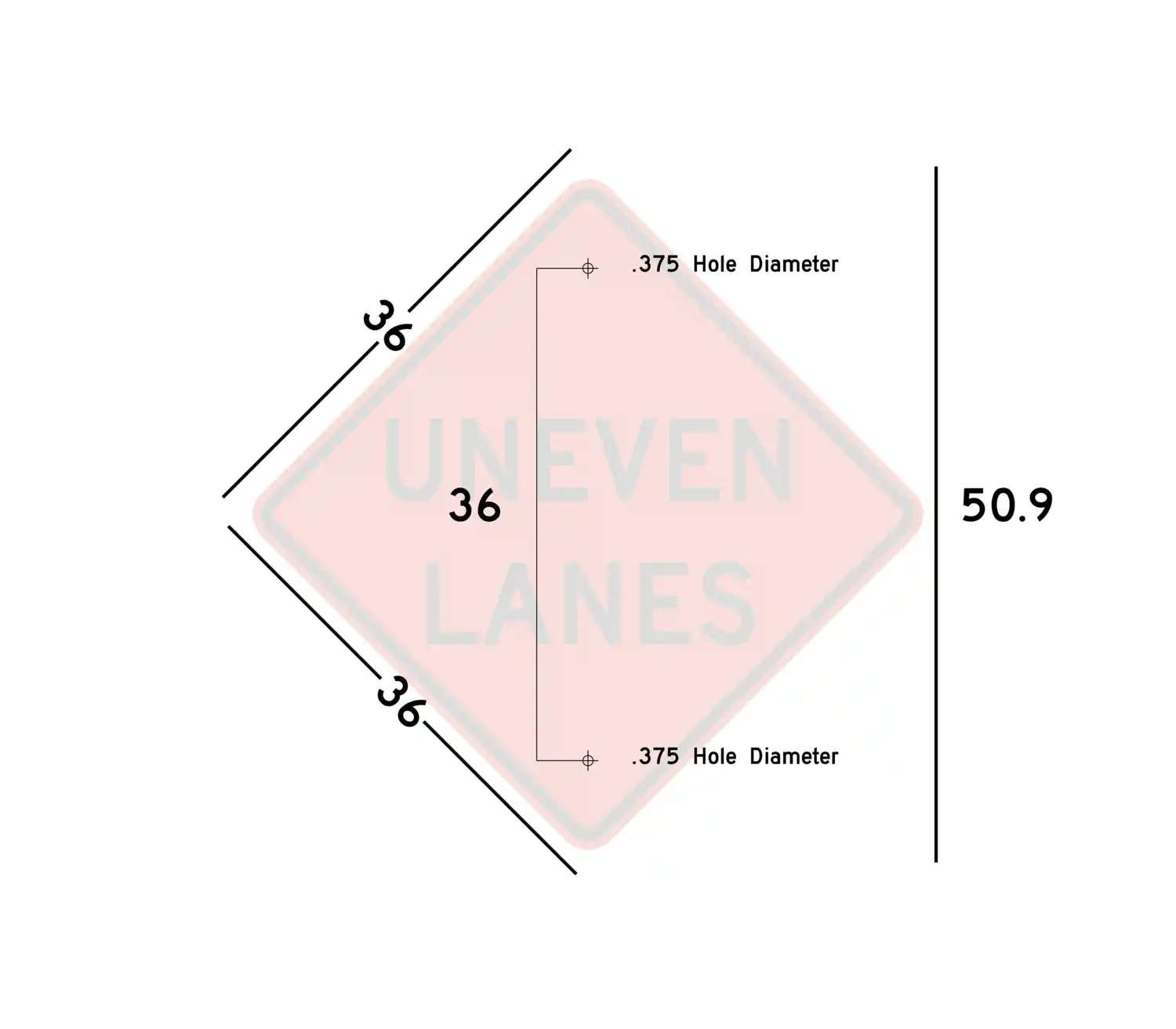

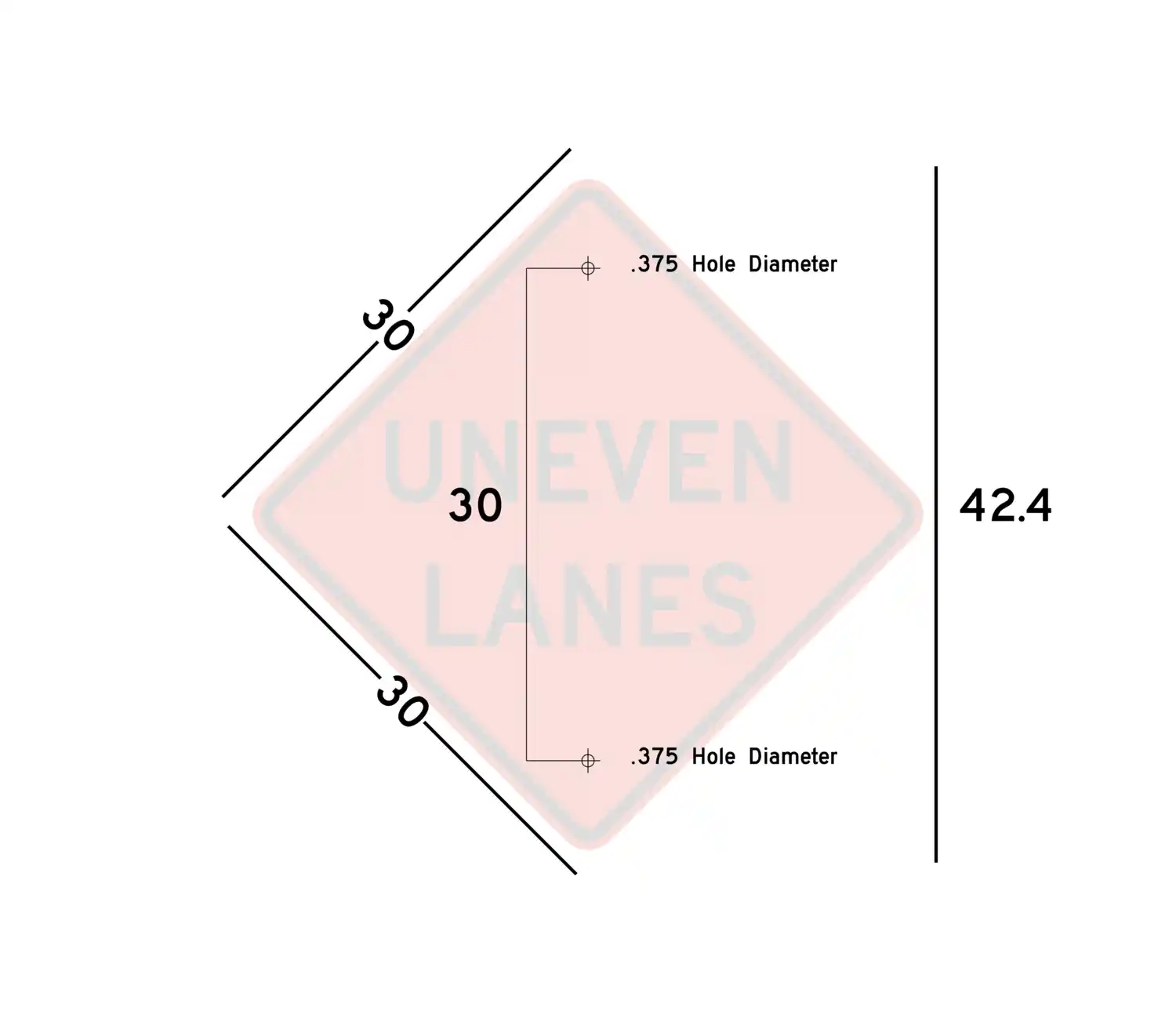

Mounting Hole Placement: |
Example Use:
On a stretch of Highway 101 approaching the coastal town of Newport, the state's Department of Transportation placed an 'Uneven Lanes' sign. This was due to ongoing roadwork that resulted in one lane being slightly elevated compared to the adjacent lane. As drivers transitioned from one lane to the other, especially at higher speeds, there was a noticeable bump, which could be jarring and potentially unsafe if caught off-guard. The placement of the 'Uneven Lanes' sign provided advance warning to motorists, prompting them to reduce speed and be cautious while changing lanes
