Reserved Parking Handicap Symbol Sign (R7-8)
The R7-8 Reserved Parking sign marks an accessible parking space with the International Symbol of Accessibility. It is the standard regulatory sign for handicap parking spaces.
MUTCD-compliant, on rust-proof .080" aluminum. One size, two prismatic reflective grades — $43.67 to $55.66 per sign, or from $39.30 at volume.
- 5 to 9
- $41.49
- 10 +
- $39.30
✓ In stock Free Shipping
R7-8-1218-HIP(None)MUTCD-compliant, on rust-proof .080" aluminum.
- In stock
Ships in 1-3 Business Days
Free Shipping on this item
Volume pricing
at 5+
In stockBrowse the collection of Handicap Parking Signs
All R7-8 prices
Every size and sheeting combination. Click to select.
| Size | High Intensity Prismatic | OmniCube™ Full Cube |
|---|---|---|
| 12 x 18 | $43.67 each (1-4) 5-9: $41.49 10+: $39.30 | $55.66 each (1-4) 5-9: $52.88 10+: $50.09 |
R7-8 Sign Specifications
| Legend: | RESERVED PARKING HANDICAP SYMBOL |
|---|---|
| MUTCD Sign Code #: | R7-8 |
| Shape: | Vertical Rectangle |
| Color: | GREEN/BLUE on WHITE |
| Available Sizes and Weights: | Size: 12 x 18; Ship Weight: 1.9 lbs |
| Available Styles: | High Intensity Prismatic Reflective on .080" Aluminum |
| OmniCube™ Full Cube Prismatic Reflective on .080" Aluminum | |

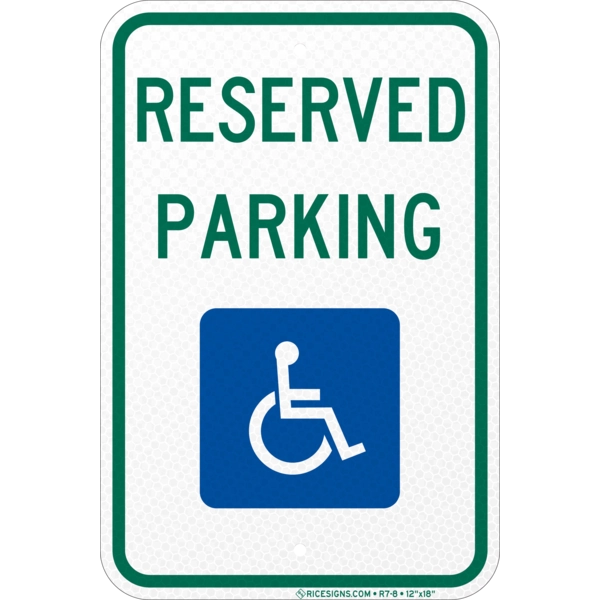

| Full Description: | R7-8 has a white background color. The text and border are green/blue and it is in the shape of a vertical rectangle. |
R7-8 Purpose and Use
The R7-8 is the federal standard sign reserving a parking space for vehicles that display a valid disability plate or placard.

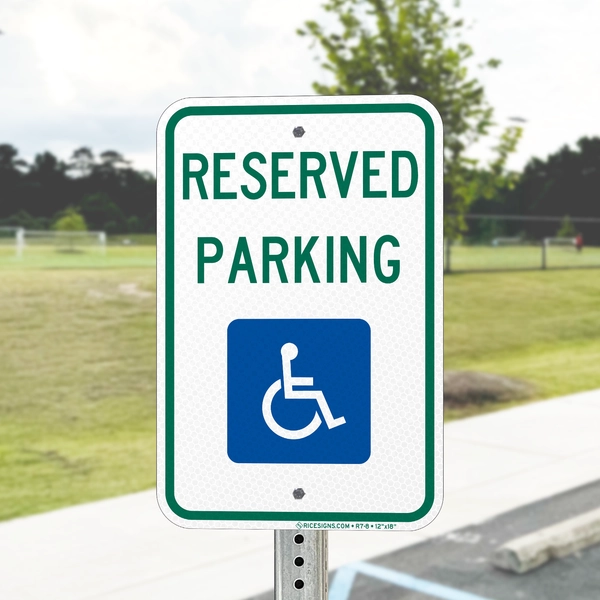

Set one at the head of every accessible stall, centered on the space, with the bottom edge at least 60 inches above the surface so it clears a parked van.
R7-8 Questions
What is the difference between the R7-8 and the R7-8a?
The R7-8 is the standard MUTCD sign and pairs the accessible symbol with RESERVED PARKING wording. The R7-8a states the restriction in text. Specifications that call for the federal standard sign mean the R7-8.
How high does an R7-8 have to be mounted?
Mount it with the bottom edge at least 60 inches above the ground. The 2010 ADA Standards set that minimum so the sign remains visible over a parked van.
R7-8 Reflective Sheeting Options
Because the R7-8 backs a legal parking restriction that has to stay legible for years of enforcement, the T-11500 OmniCube - up to 60 percent brighter with a 12-year outdoor durability rating - is the safer choice when night visibility matters most, while the T-6500 High Intensity Prismatic delivers proven 10-year durability.
- Most Common Reflective Finish
- Very Reflective At Night
- Required for Most Highway Signs
- 10 Year Outdoor Durability
- Brightest and Most Visible
- Most Reflective At Night
- Up to 60 percent brighter than HIP
- 12 Year Outdoor Durability

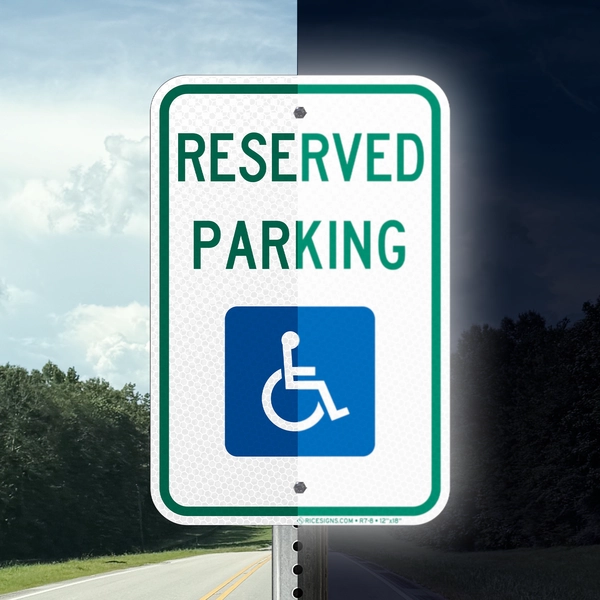

The R7-8 puts a green/blue legend on a white reflective background, and white returns more light than any other color under ASTM D4956, so nearly the entire face lights up under headlights. That is why stepping up to the T-11500 OmniCube produces such a visible change on this sign: you are brightening the color that already dominates the sign face.
Compare T-6500 and T-11500 OmniCube retroreflectivity, durability and warranty →

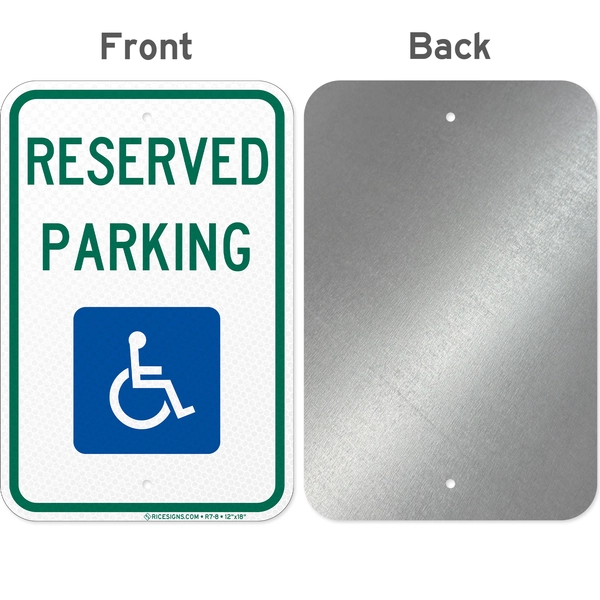

R7-8 Mounting Hole Pattern and Spacing
The R7-8 has mounting holes on the vertical centerline, equally spaced from the top and bottom edges: the standard pattern for u-channel and square post mounting.
