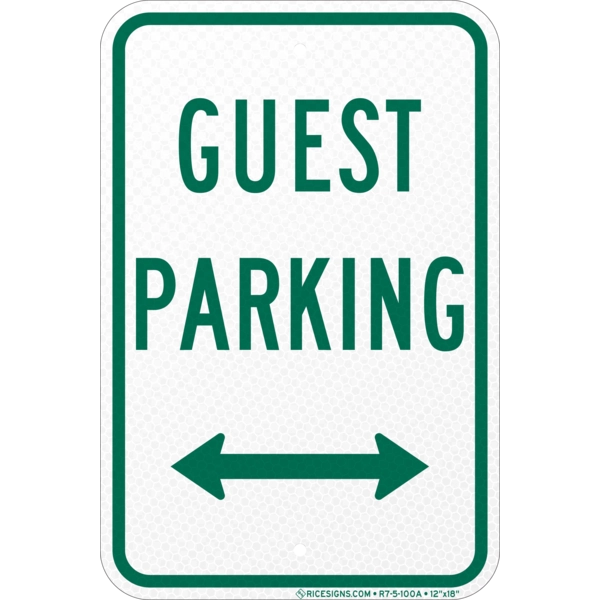

Guest Parking With Arrow Sign (R7-5-100A)
White regulatory reserved-parking sign reading Guest Parking with a directional arrow, directing guests toward the reserved parking spaces.
One size, two prismatic reflective grades — $37.95 to $48.51 per sign, or from $34.16 at volume.
- 5 to 9
- $36.05
- 10 +
- $34.16
✓ In stock Free Shipping
R7-5-100A-1218-HIP(None)Designed in accordance with the MUTCD design standards, on rust-proof .080" aluminum.
- In stock
Ships in 1-3 Business Days
Free Shipping on this item
Volume pricing
at 5+
In stockBrowse the collection of Reserved Parking Signs
All R7-5-100A prices
Every size and sheeting combination. Click to select.
| Size | High Intensity Prismatic | OmniCube™ Full Cube |
|---|---|---|
| 12 x 18 | $37.95 each (1-4) 5-9: $36.05 10+: $34.16 | $48.51 each (1-4) 5-9: $46.08 10+: $43.66 |
R7-5-100A Sign Specifications
| Legend: | GUEST PARKING WITH ARROW |
|---|---|
| Sign Code #: | R7-5-100A |
| Shape: | Vertical Rectangle |
| Color: | GREEN on WHITE |
| Available Sizes and Weights: | Size: 12 x 18; Ship Weight: 1.9 lbs |
| Available Styles: | High Intensity Prismatic Reflective on .080" Aluminum |
| OmniCube™ Full Cube Prismatic Reflective on .080" Aluminum | |
| Full Description: | R7-5-100A has a white background color. The text and border are green and it is in the shape of a vertical rectangle. |
R7-5-100A Purpose and Use
Guest Parking With Arrow steers a resident guest to the correct block of spaces from a lot entrance.

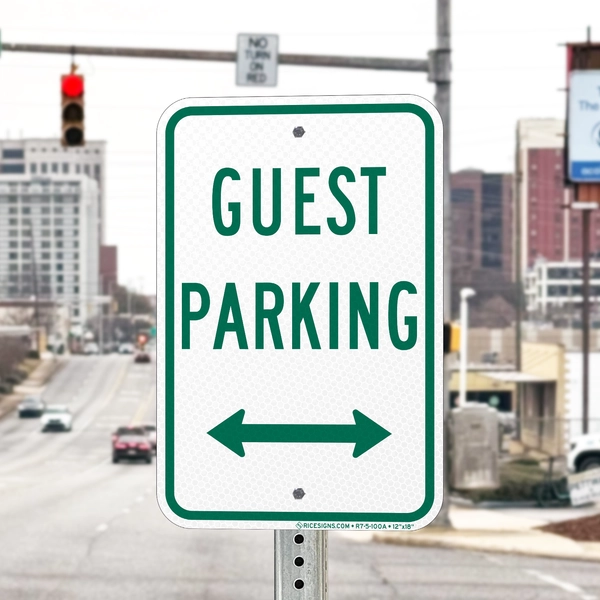

Install it at a driveway split in an apartment or HOA property to route guests to the correct block of stalls.
R7-5-100A Questions
Where should a guest parking sign with an arrow be installed?
At the driveway split in an apartment or HOA property, so an arriving guest turns toward the correct block of stalls on the first pass.
Do I still need signs at the guest stalls themselves?
Yes. The arrow sign routes a driver to the area; a sign at the stalls establishes the restriction that the area is reserved.
R7-5-100A Reflective Sheeting Options

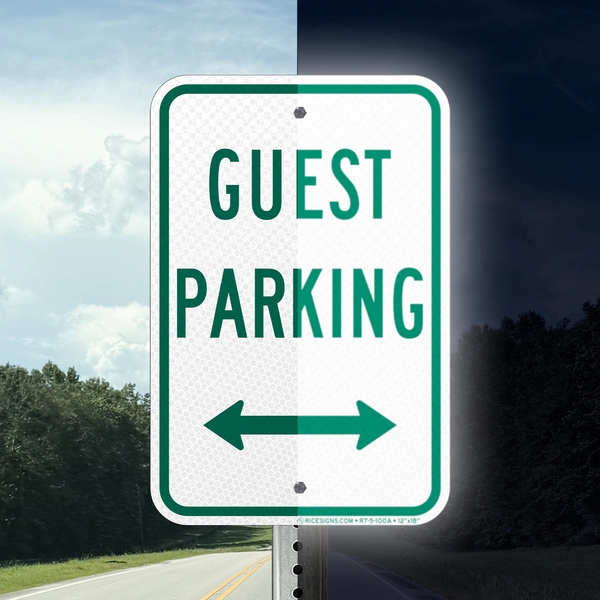

Because the R7-5-100A is read from a short distance under direct headlights in private lots, the T-11500 OmniCube - up to 60 percent brighter with a 12-year outdoor durability rating - is the safer choice when night visibility matters most, while the T-6500 High Intensity Prismatic delivers proven 10-year durability.
- Most Common Reflective Finish
- Very Reflective At Night
- Required for Most Highway Signs
- 10 Year Outdoor Durability
- Brightest and Most Visible
- Most Reflective At Night
- Up to 60 percent brighter than HIP
- 12 Year Outdoor Durability
The R7-5-100A puts a green legend on a white reflective background, and white returns more light than any other color under ASTM D4956, so nearly the entire face lights up under headlights. That is why stepping up to the T-11500 OmniCube produces such a visible change on this sign: you are brightening the color that already dominates the sign face.
Compare T-6500 and T-11500 OmniCube retroreflectivity, durability and warranty →
R7-5-100A Mounting Hole Pattern and Spacing

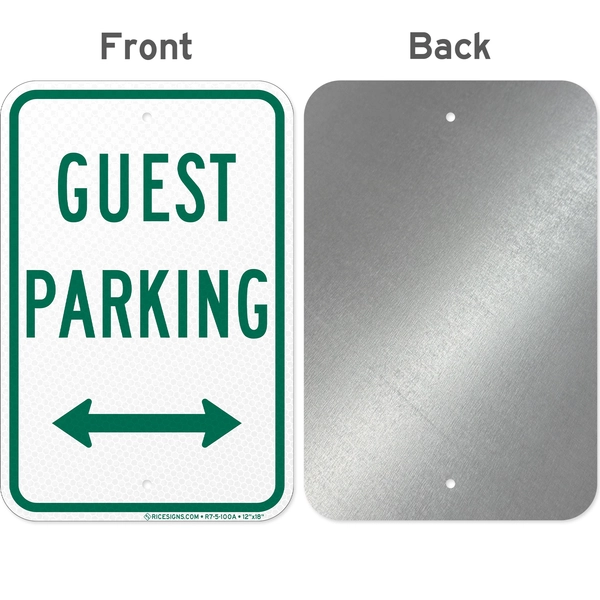

The R7-5-100A has mounting holes on the vertical centerline, equally spaced from the top and bottom edges: the standard pattern for u-channel and square post mounting.
