Turn Left Sign (W1-1L)
SKU# W1-1L

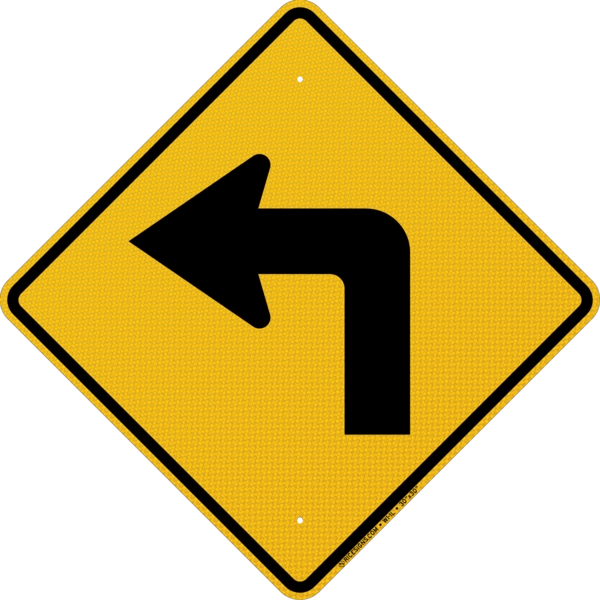

Turn Left (W1-1L): black left-turn arrow on a yellow diamond, specified where the road swings hard to the left.
W1-1L Price
High Intensity Prismatic Reflective on .080" Aluminum
| MATERIAL | SIZE | WORDING | PRICE | ADD TO CART | Catalog Part # |
|---|---|---|---|---|---|
High Intensity Prismatic |
24" x 24" High Intensity Prismatic |
Turn Left | 1 to 4: $82.61 5 to 9: $78.48 10 +: $74.35 |
SKU:W1-1L-2424-HIP |
W1-1L-2424-HIP |
30" x 30" High Intensity Prismatic |
Turn Left | 1 to 4: $112.20 5 to 9: $106.59 10 +: $100.98 |
SKU:W1-1L-3030-HIP |
W1-1L-3030-HIP | |
36" x 36" High Intensity Prismatic |
Turn Left | 1 to 4: $189.75 5 to 9: $180.26 10 +: $170.78 |
SKU:W1-1L-3636-HIP |
W1-1L-3636-HIP |
In Stock - Usually ships same or next business day.
Fluorescent Yellow Prismatic Reflective on .080" Aluminum| MATERIAL | SIZE | WORDING | PRICE | ADD TO CART | Catalog Part # |
|---|---|---|---|---|---|
Avery T-11511 Fluorescent Yellow OmniCube™ Full Cube Retroreflective |
24" x 24" Avery T-11511 Fluorescent Yellow OmniCube™ Full Cube Retroreflective |
Turn Left | 1 to 4: $88.99 5 to 9: $84.54 10 +: $80.09 |
SKU:W1-1L-2424-FYP |
W1-1L-2424-FYP |
30" x 30" Avery T-11511 Fluorescent Yellow OmniCube™ Full Cube Retroreflective |
Turn Left | 1 to 4: $131.67 5 to 9: $125.09 10 +: $118.50 |
SKU:W1-1L-3030-FYP |
W1-1L-3030-FYP | |
36" x 36" Avery T-11511 Fluorescent Yellow OmniCube™ Full Cube Retroreflective |
Turn Left | 1 to 4: $200.97 5 to 9: $190.92 10 +: $180.87 |
SKU:W1-1L-3636-FYP |
W1-1L-3636-FYP |
In Stock - Usually ships same or next business day.
Turn Left Sign Specifications
- Sign is manufactured on durable rust-proof .080" aluminum
- Pre-punched 3/8" mounting holes in top and bottom for easy installation.
- Meets M.U.T.C.D. specifications for highway use.
See catalog page 20.
Drivers read this sign as an instruction to brake, not merely to steer — which is why substituting W1-2L (Curve Left) on genuinely tight geometry is a safety problem rather than a labeling one. Chevron alignment signs (W1-8) are commonly run through the turn itself to reinforce the path, with a W13-1P plaque below the diamond when an advisory speed applies. The right-hand equivalent is W1-1R.
Available Reflective Finishes:
- Most common reflective finish used for traffic signs
- Meets federal minimum requirements
- 10 Year Outdoor Durability
- Brightest and most visible
- Exceeds federal minimum requirements
- 10 Year Outdoor Durability
Sign Posts
Sign Installation Hardware
Sign Installation Hardware
Other Curve and Turn Signs
Turn Right - W1-1R
Curve Right - W1-2R
Curve Left - W1-2L
Reverse Turn Right - W1-3R
Reverse Turn Left - W1-3L
Turn Right With Speed Limit - W1-1AR
Turn Left With Speed Limit - W1-1AL
Curve Right With Speed Limit - W1-2AR
Curve Left With Speed Limit - W1-2AL
Reverse Curve Right - W1-4R
Reverse Curve Left - W1-4L
Winding Road Right - W1-5R
Winding Road Left - W1-5L
Chevron Alignment - W1-8
Large Single Arrow - W1-6
Large Double Arrow - W1-7
Hazard Board - W1-7A
W1-1L Sign Specifications
| Legend: | TURN LEFT |
| MUTCD Sign Code #: | W1-1L |
| Shape: | Diamond |
| Color: | BLACK on YELLOW |
| Available Sizes and Weights: | Size: 24" x 24"; Ship Weight: 5 lbs |
| Size: 30" x 30"; Ship Weight: 7.8 lbs | |
| Size: 36" x 36"; Ship Weight: 11.2 lbs | |
| Available Styles: | High Intensity Prismatic Reflective on .080" Aluminum |
| Fluorescent Yellow Prismatic Reflective on .080" Aluminum | |
| Full Description: | W1-1L has a yellow background color. The text and border are black and it is in the shape of a diamond. |
| Mounting Hole Placement: |  |

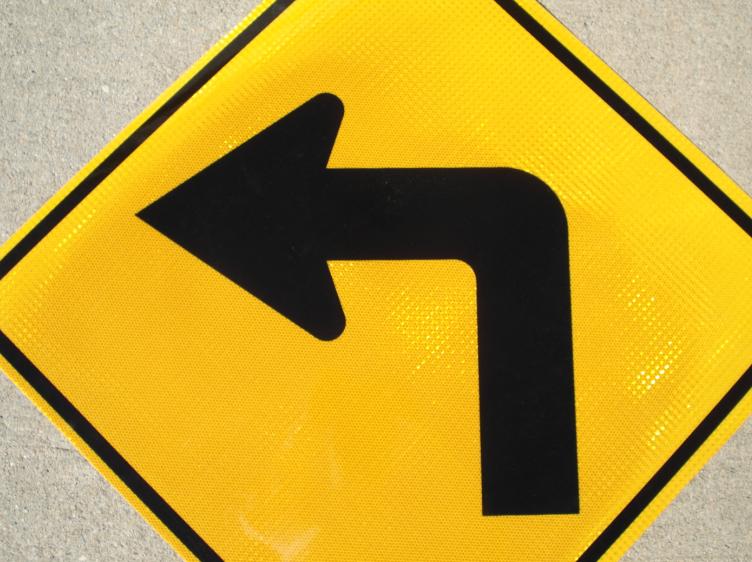

Turn Left Sign Photos:
