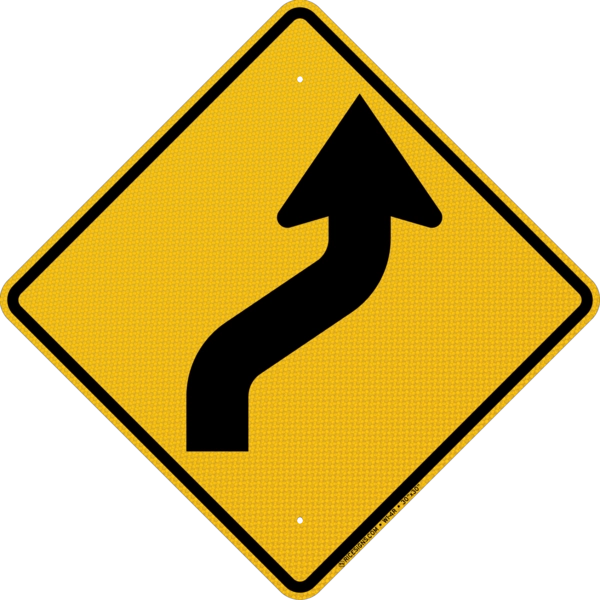

Reverse Curve Right Signs
SKU# W1-4R
Reverse Curve Right Sign Details:
- Sign is manufactured on durable rust-proof .080" aluminum
- Pre-punched 3/8" mounting holes in top and bottom for easy installation.
- Meets M.U.T.C.D. specifications for highway use.
- See in our catalog on page 20.
In Stock - Usually ships same or next business day.
High Intensity Prismatic Reflective on .080" Aluminum:
| MATERIAL | SIZE | PRICE PER SIGN | ADD TO CART | Catalog Part # | ||
|---|---|---|---|---|---|---|
| 1 to 4 | 5 to 9 | 10 + | ||||
High Intensity Prismatic | 24" x 24" | $72.60 | $68.97 | $65.34 | W1-4R-2424-HIP | |
| 30" x 30" | $97.90 | $93.01 | $88.11 | W1-4R-3030-HIP | ||
| 36" x 36" | $163.79 | $155.60 | $147.41 | W1-4R-3636-HIP | ||
Fluorescent Yellow Prismatic Reflective on .080" Aluminum:
| MATERIAL | SIZE | PRICE PER SIGN | ADD TO CART | Catalog Part # | ||
|---|---|---|---|---|---|---|
| 1 to 4 | 5 to 9 | 10 + | ||||
Fluorescent Yellow Prismatic | 24" x 24" | $80.85 | $76.81 | $72.77 | W1-4R-2424-FYP | |
| 30" x 30" | $117.81 | $111.92 | $106.03 | W1-4R-3030-FYP | ||
| 36" x 36" | $179.08 | $170.13 | $161.17 | W1-4R-3636-FYP | ||
Available Reflective Finishes:
| High Intensity Prismatic Reflective | Fluorescent Yellow Prismatic Reflective |
|---|---|
|
|
 |  |  |
 |  |  |
 |
Sign Posts
Sign Installation Hardware
Other Curve and Turn Signs
Catalog Page 19Click to view
Catalog Page 20Click to view
Catalog Page 21Click to view
Specifications:
| Legend: | REVERSE CURVE RIGHT |
| MUTCD Sign Code #: | W1-4R |
| Shape: | Diamond |
| Color: | BLACK on YELLOW |
| Available Sizes and Weights: | Size: 24" x 24"; Ship Weight: 5 lbs |
| Size: 30" x 30"; Ship Weight: 7.8 lbs | |
| Size: 36" x 36"; Ship Weight: 11.2 lbs | |
| Available Styles: | High Intensity Prismatic Reflective on .080" Aluminum |
| Fluorescent Yellow Prismatic Reflective on .080" Aluminum | |
| Full Description: | W1-4R have a yellow background color. The text and border are black and it is in the shape of a diamond. |
| Mounting Hole Placement: |  |
Reverse Curve Right Sign Photos:

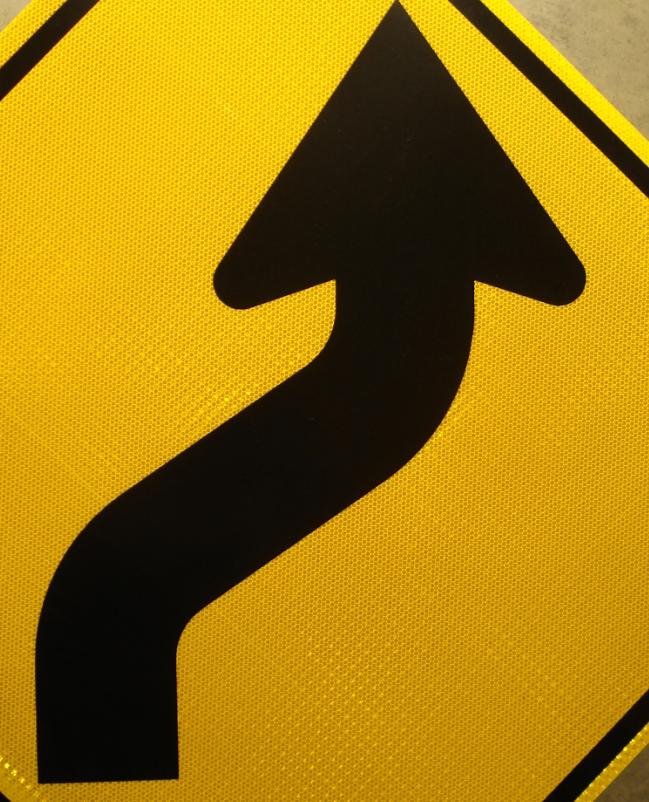

Detailed picture of our reverse curve right highway sign.
Example Use:
On a dark, rainy night, a driver is navigating a poorly lit rural highway. As they approach a section of the road that first curves to the right and then back to the left, the potential for an accident increases due to reduced visibility and wet road conditions. In this scenario, a Reverse Curve Right sign plays a crucial role in maintaining driver safety. Placed well in advance of the curve sequence, this sign alerts the driver to the upcoming change in the road’s direction. Upon seeing the sign, which is designed with reflective materials to be highly visible even in low light, the driver is prompted to reduce their speed, adjust their lane position, and increase their focus on the road ahead. The Reverse Curve Right sign effectively communicates the nature of the upcoming road condition, allowing the driver to anticipate and smoothly navigate through the right and then the left curve, thereby reducing the likelihood of skidding, veering into another lane, or running off the road. In this way, the sign serves as a vital tool for enhancing road safety under challenging driving conditions.
