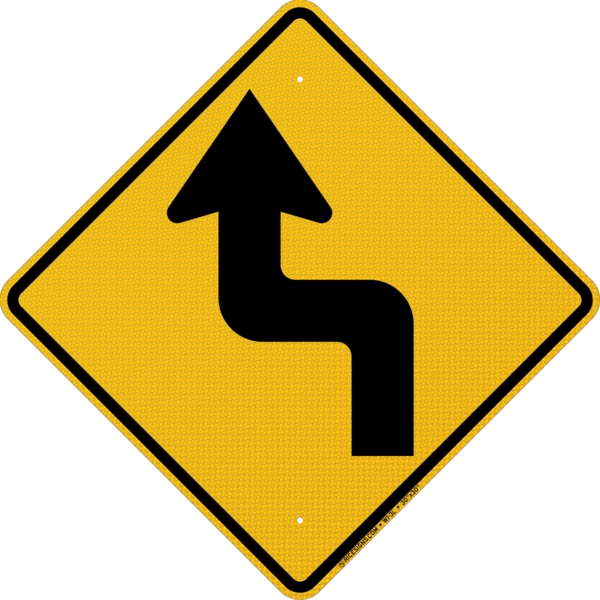

Reverse Turn Left Sign (W1-3L)
The W1-3L Reverse Turn Left sign — black double-back arrow on yellow, for a left turn immediately followed by a right.
W1-3L Price
High Intensity Prismatic Reflective on .080" Aluminum
| MATERIAL | SIZE | WORDING | PRICE | ADD TO CART | Catalog Part # |
|---|---|---|---|---|---|
High Intensity Prismatic | 24" x 24" High Intensity Prismatic | Reverse Turn Left | 1 to 4: $82.61 5 to 9: $78.48 10 +: $74.35 |
SKU:W1-3L-2424-HIP |
W1-3L-2424-HIP |
30" x 30" High Intensity Prismatic | Reverse Turn Left | 1 to 4: $112.20 5 to 9: $106.59 10 +: $100.98 |
SKU:W1-3L-3030-HIP |
W1-3L-3030-HIP | |
36" x 36" High Intensity Prismatic | Reverse Turn Left | 1 to 4: $189.75 5 to 9: $180.26 10 +: $170.78 |
SKU:W1-3L-3636-HIP |
W1-3L-3636-HIP |
In Stock - Usually ships same or next business day.
Fluorescent Yellow Prismatic Reflective on .080" Aluminum| MATERIAL | SIZE | WORDING | PRICE | ADD TO CART | Catalog Part # |
|---|---|---|---|---|---|
Fluorescent Yellow Prismatic | 24" x 24" Fluorescent Yellow Prismatic | Reverse Turn Left | 1 to 4: $88.99 5 to 9: $84.54 10 +: $80.09 |
SKU:W1-3L-2424-FYP |
W1-3L-2424-FYP |
30" x 30" Fluorescent Yellow Prismatic | Reverse Turn Left | 1 to 4: $131.67 5 to 9: $125.09 10 +: $118.50 |
SKU:W1-3L-3030-FYP |
W1-3L-3030-FYP | |
36" x 36" Fluorescent Yellow Prismatic | Reverse Turn Left | 1 to 4: $200.97 5 to 9: $190.92 10 +: $180.87 |
SKU:W1-3L-3636-FYP |
W1-3L-3636-FYP |
In Stock - Usually ships same or next business day.
Reverse Turn Left Sign Specifications
- Sign is manufactured on durable rust-proof .080" aluminum
- Pre-punched 3/8" mounting holes in top and bottom for easy installation.
- Meets M.U.T.C.D. specifications for highway use.
See catalog page 20.
Two considerations drive the specification: the turns must be sharp rather than sweeping, which rules out W1-4L (Reverse Curve Left), and there must be exactly two of them, which rules out W1-5 (Winding Road). Because both turns sit close together, the advance sign is typically the only warning drivers receive before the first one, so placement upstream matters more than on a single-turn approach. W1-3R begins with a right.
Available Reflective Finishes:
- Most common reflective finish used for traffic signs
- Meets federal minimum requirements
- 10 Year Outdoor Durability
- Brightest and most visible
- Exceeds federal minimum requirements
- 10 Year Outdoor Durability
Sign Posts
Sign Installation Hardware
Sign Installation Hardware
Other Curve and Turn Signs
Turn Right - W1-1R
Turn Left - W1-1L
Curve Right - W1-2R
Curve Left - W1-2L
Reverse Turn Right - W1-3R
Turn Right With Speed Limit - W1-1AR
Turn Left With Speed Limit - W1-1AL
Curve Right With Speed Limit - W1-2AR
Curve Left With Speed Limit - W1-2AL
Reverse Curve Right - W1-4R
Reverse Curve Left - W1-4L
Winding Road Right - W1-5R
Winding Road Left - W1-5L
Chevron Alignment - W1-8
Large Single Arrow - W1-6
Large Double Arrow - W1-7
Hazard Board - W1-7A
W1-3L Sign Specifications
| Legend: | REVERSE TURN LEFT |
| MUTCD Sign Code #: | W1-3L |
| Shape: | Diamond |
| Color: | BLACK on YELLOW |
| Available Sizes and Weights: | Size: 24" x 24"; Ship Weight: 5 lbs |
| Size: 30" x 30"; Ship Weight: 7.8 lbs | |
| Size: 36" x 36"; Ship Weight: 11.2 lbs | |
| Available Styles: | High Intensity Prismatic Reflective on .080" Aluminum |
| Fluorescent Yellow Prismatic Reflective on .080" Aluminum | |
| Full Description: | W1-3L has a yellow background color. The text and border are black and it is in the shape of a diamond. |
| Mounting Hole Placement: |  |
