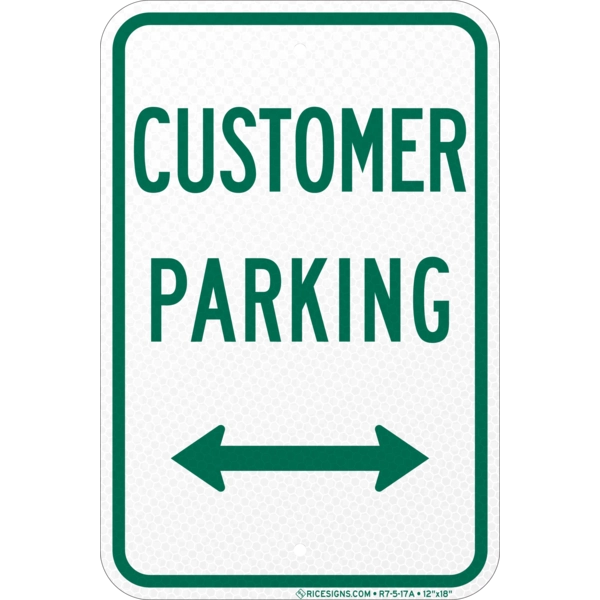

Customer Parking With Arrow Sign (R7-5-17A)
White regulatory reserved-parking sign reading Customer Parking with a directional arrow, guiding customers to designated parking spaces.
One size, two prismatic reflective grades — $37.95 to $48.51 per sign, or from $34.16 at volume.
- 5 to 9
- $36.05
- 10 +
- $34.16
✓ In stock Free Shipping
R7-5-17A-1218-HIP(None)Designed in accordance with the MUTCD design standards, on rust-proof .080" aluminum.
- In stock
Ships in 1-3 Business Days
Free Shipping on this item
Volume pricing
at 5+
In stockBrowse the collection of Reserved Parking Signs
All R7-5-17A prices
Every size and sheeting combination. Click to select.
| Size | High Intensity Prismatic | OmniCube™ Full Cube |
|---|---|---|
| 12 x 18 | $37.95 each (1-4) 5-9: $36.05 10+: $34.16 | $48.51 each (1-4) 5-9: $46.08 10+: $43.66 |
R7-5-17A Sign Specifications
| Legend: | CUSTOMER PARKING WITH ARROW |
|---|---|
| Sign Code #: | R7-5-17A |
| Shape: | Vertical Rectangle |
| Color: | GREEN on WHITE |
| Available Sizes and Weights: | Size: 12 x 18; Ship Weight: 1.9 lbs |
| Available Styles: | High Intensity Prismatic Reflective on .080" Aluminum |
| OmniCube™ Full Cube Prismatic Reflective on .080" Aluminum | |
| Full Description: | R7-5-17A has a white background color. The text and border are green and it is in the shape of a vertical rectangle. |
R7-5-17A Purpose and Use
Customer Parking With Arrow directs shoppers to the customer area of a shared or multi-tenant lot.
Post it at the entrance to a shared or multi-tenant lot with the arrow pointing to the customer stalls.
R7-5-17A Questions
How does an arrow help in a shared retail lot?
Multi tenant lots often have customer areas that are not obvious from the entrance. The arrow directs shoppers to the correct section instead of leaving them to guess.
Should each tenant get its own arrow sign?
Only where the lot is genuinely divided by tenant. Otherwise a single customer parking area is easier to sign and easier to enforce.
R7-5-17A Reflective Sheeting Options
Because the R7-5-17A is read from a short distance under direct headlights in private lots, the T-11500 OmniCube - up to 60 percent brighter with a 12-year outdoor durability rating - is the safer choice when night visibility matters most, while the T-6500 High Intensity Prismatic delivers proven 10-year durability.
- Most Common Reflective Finish
- Very Reflective At Night
- Required for Most Highway Signs
- 10 Year Outdoor Durability
- Brightest and Most Visible
- Most Reflective At Night
- Up to 60 percent brighter than HIP
- 12 Year Outdoor Durability
The R7-5-17A puts a green legend on a white reflective background, and white returns more light than any other color under ASTM D4956, so nearly the entire face lights up under headlights. That is why stepping up to the T-11500 OmniCube produces such a visible change on this sign: you are brightening the color that already dominates the sign face.
Compare T-6500 and T-11500 OmniCube retroreflectivity, durability and warranty →
R7-5-17A Mounting Hole Pattern and Spacing
The R7-5-17A has mounting holes on the vertical centerline, equally spaced from the top and bottom edges: the standard pattern for u-channel and square post mounting.
