Begin Daytime Headlight Section Sign (R16-10)
SKU# R16-10
MUTCD R16-10 — white horizontal rectangle marking the start of a daytime-lighting zone.
R16-10 Price
High Intensity Prismatic Reflective on .080" Aluminum
| MATERIAL | SIZE | WORDING | PRICE | ADD TO CART | Catalog Part # |
|---|---|---|---|---|---|
High Intensity Prismatic |
48" x 15" High Intensity Prismatic |
Begin Daytime Headlight Section | 1 to 4: $99.22 5 to 9: $94.26 10 +: $89.30 |
SKU:R16-10-4815-HIP |
R16-10-4815-HIP |
72" x 24" High Intensity Prismatic |
Begin Daytime Headlight Section | 1 to 4: $247.94 5 to 9: $235.54 10 +: $223.15 |
SKU:R16-10-7224-HIP |
R16-10-7224-HIP | |
96" x 30" High Intensity Prismatic |
Begin Daytime Headlight Section | 1 to 4: $351.23 5 to 9: $333.67 10 +: $316.11 |
SKU:R16-10-9630-HIP |
R16-10-9630-HIP |
In Stock - Usually ships same or next business day.
OmniCube™ Full Cube Prismatic Reflective on .080" Aluminum| MATERIAL | SIZE | WORDING | PRICE | ADD TO CART | Catalog Part # |
|---|---|---|---|---|---|
OmniCube™ Full Cube (UPG) |
48" x 15" OmniCube™ Full Cube (UPG) |
Begin Daytime Headlight Section | 1 to 4: $107.80 5 to 9: $102.41 10 +: $97.02 |
SKU:R16-10-4815-UPG |
R16-10-4815-UPG |
72" x 24" OmniCube™ Full Cube (UPG) |
Begin Daytime Headlight Section | 1 to 4: $274.89 5 to 9: $261.15 10 +: $247.40 |
SKU:R16-10-7224-UPG |
R16-10-7224-UPG | |
96" x 30" OmniCube™ Full Cube (UPG) |
Begin Daytime Headlight Section | 1 to 4: $469.59 5 to 9: $446.11 10 +: $422.63 |
SKU:R16-10-9630-UPG |
R16-10-9630-UPG |
In Stock - Usually ships same or next business day.
Begin Daytime Headlight Section Sign Specifications
- Sign is manufactured on durable rust-proof .080" aluminum

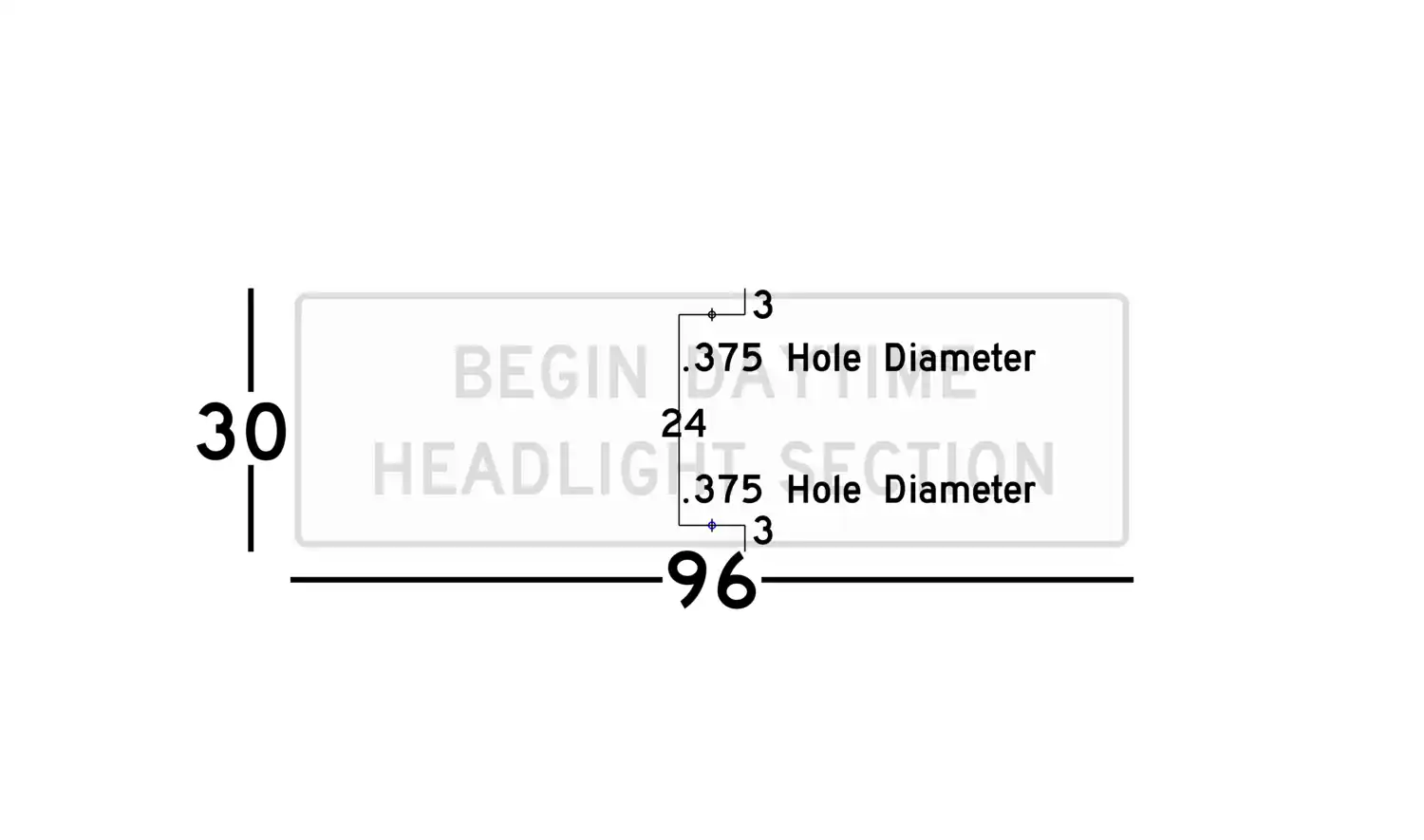

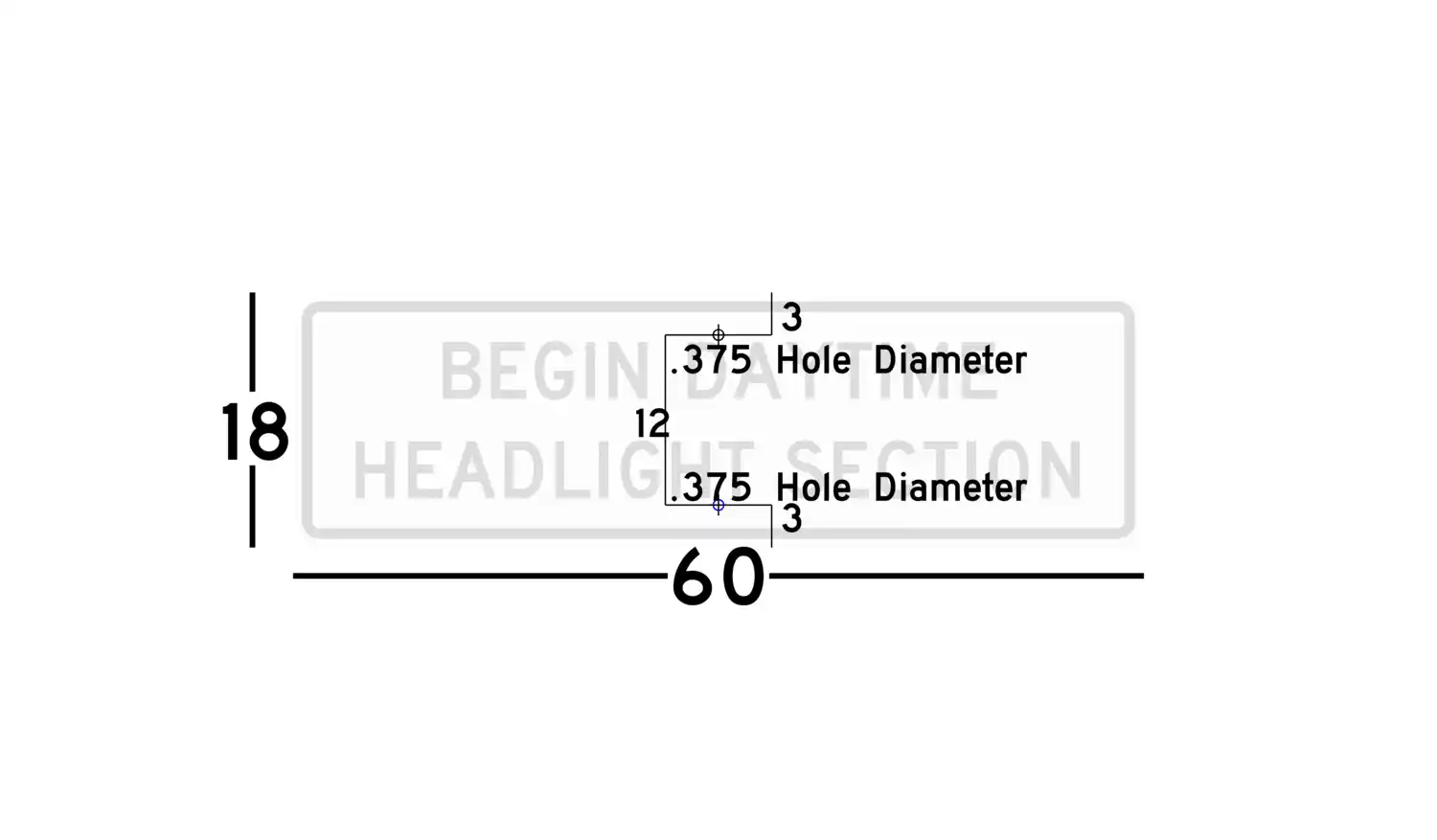

- Pre-punched 3/8" mounting holes in top and bottom for easy installation.
- Meets M.U.T.C.D. specifications for highway use.
See catalog page 10.
Daytime lighting corridors are designated where crash history or persistent glare and shadow justify them, and the obligation runs until it is formally lifted. R16-11 is the companion that lifts it, and the two are ordered as a pair since an unterminated zone leaves drivers guessing. Position it at the boundary itself rather than in advance of it.
Available Reflective Finishes:
- Most common reflective finish used for traffic signs
- Meets federal minimum requirements
- 10 Year Outdoor Durability
- Brightest and most visible
- Exceeds federal minimum requirements
- 10 Year Outdoor Durability
Sign Posts
Sign Installation Hardware
Sign Installation Hardware
Other Headlight Use Signs
R16-10 Sign Specifications
| Legend: | BEGIN DAYTIME HEADLIGHT SECTION |
| MUTCD Sign Code #: | R16-10 |
| Shape: | Horizontal Rectangle |
| Color: | BLACK on WHITE |

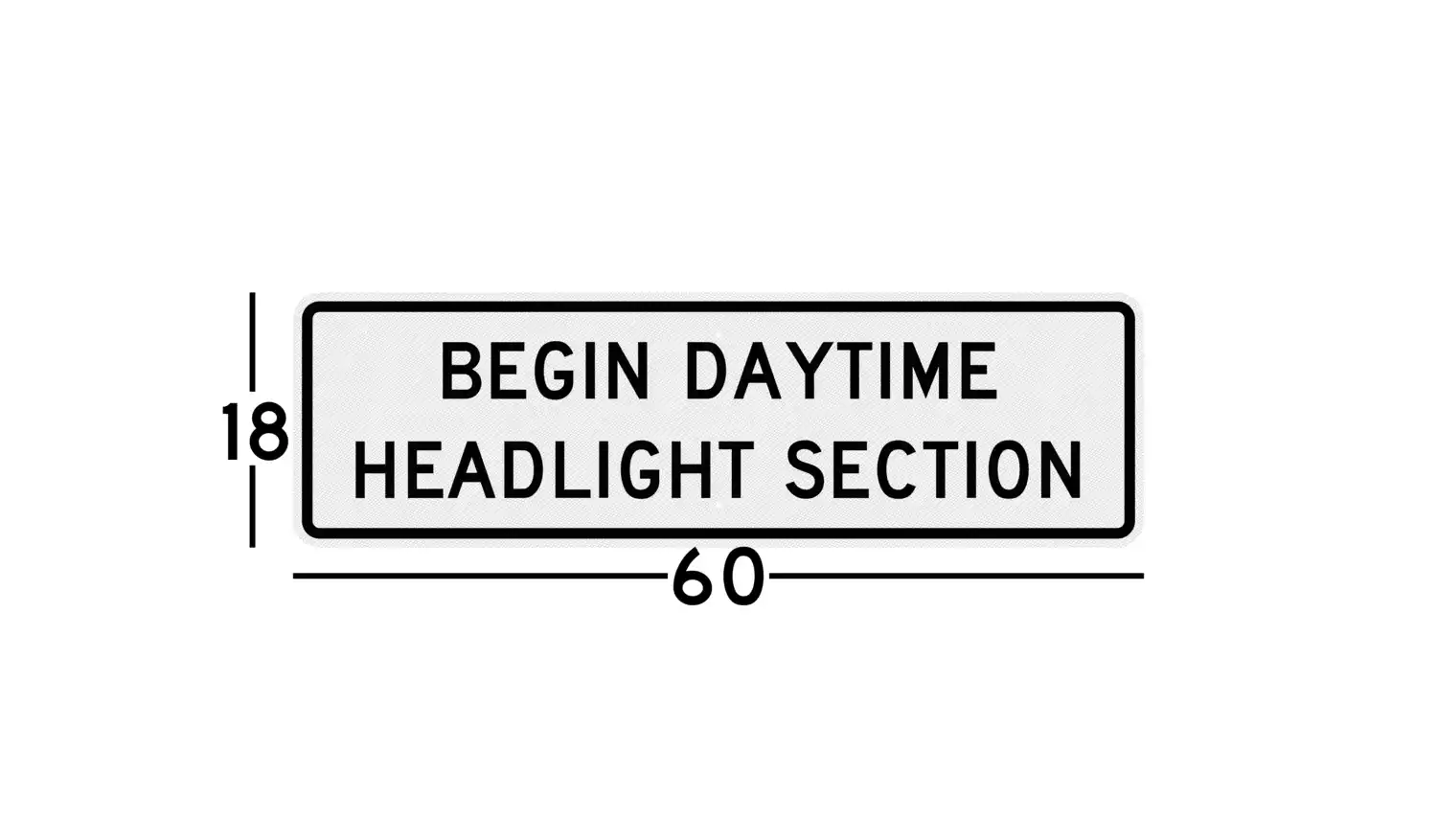

| Available Sizes and Weights: | Size: 48" x 15"; Ship Weight: 6.2 lbs |
| Size: 72" x 24"; Ship Weight: 14.9 lbs | |
| Size: 96" x 30"; Ship Weight: 24.8 lbs | |
| Available Styles: | High Intensity Prismatic Reflective on .080" Aluminum |
| OmniCube™ Full Cube Prismatic Reflective on .080" Aluminum | |

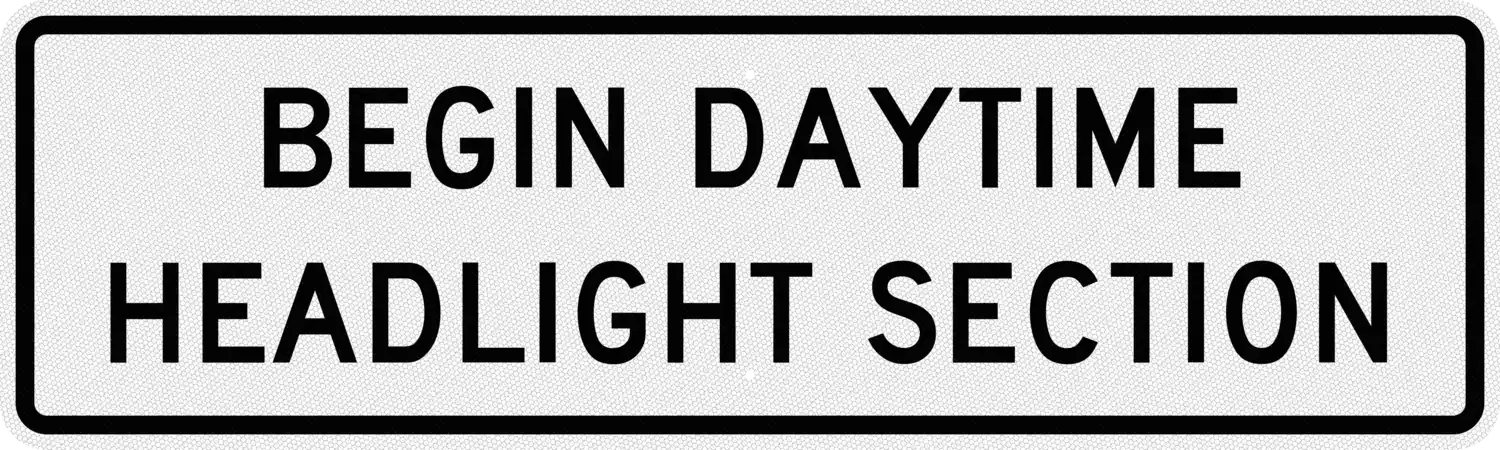

| Full Description: | R16-10 has a white background color. The text and border are black and it is in the shape of a horizontal rectangle. |
