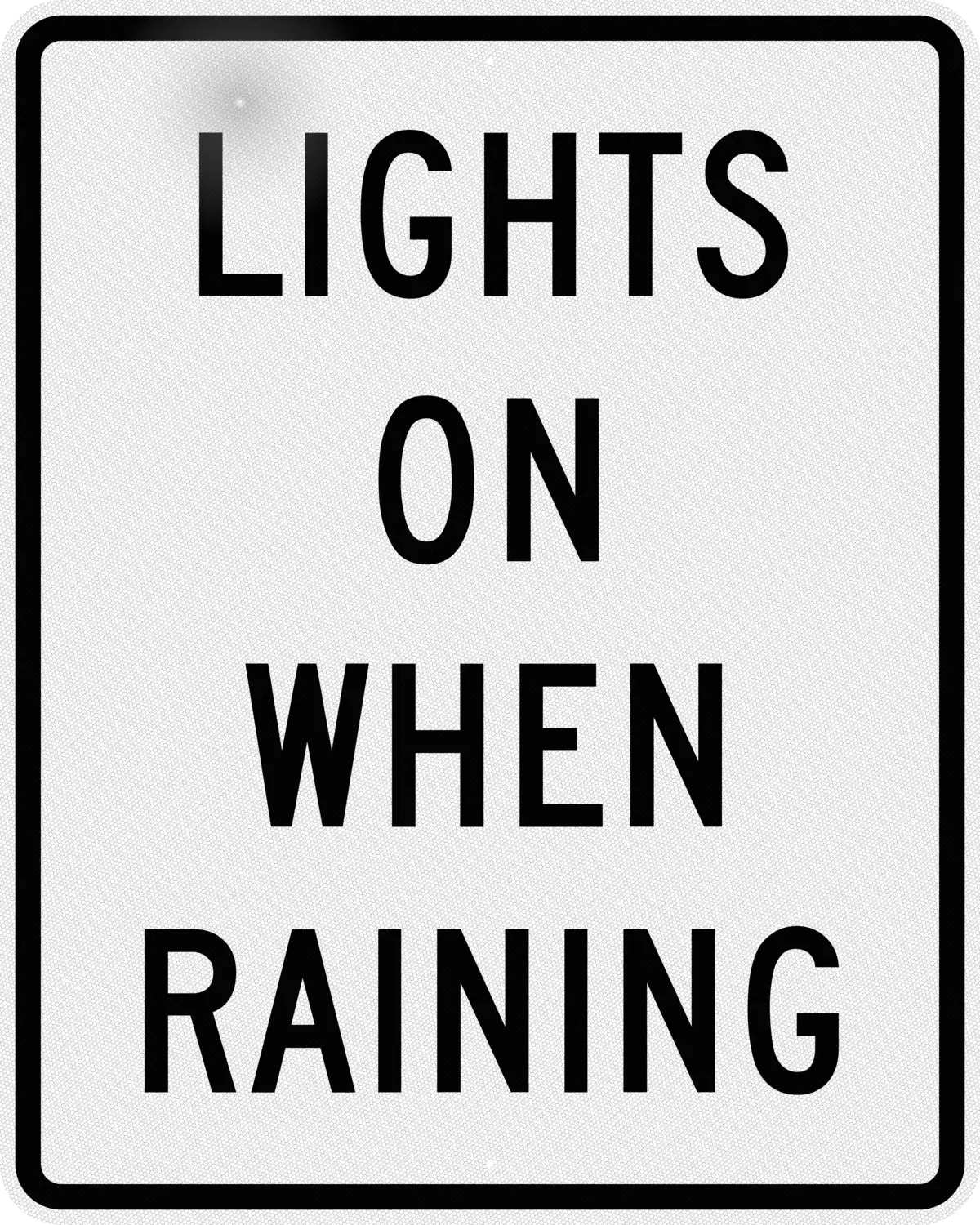

Lights On When Raining Sign (R16-6)
SKU# R16-6
MUTCD R16-6 — white vertical rectangle directing headlight use during rainfall.
R16-6 Price
High Intensity Prismatic Reflective on .080" Aluminum
| MATERIAL | SIZE | WORDING | PRICE | ADD TO CART | Catalog Part # |
|---|---|---|---|---|---|
High Intensity Prismatic | 24" x 30 " High Intensity Prismatic | Lights On When Raining | 1 to 4: $99.22 5 to 9: $94.26 10 +: $89.30 |
SKU:R16-6-2430-HIP |
R16-6-2430-HIP |
36" x 48" High Intensity Prismatic | Lights On When Raining | 1 to 4: $247.94 5 to 9: $235.54 10 +: $223.15 |
SKU:R16-6-3648-HIP |
R16-6-3648-HIP | |
48" x 60" High Intensity Prismatic | Lights On When Raining | 1 to 4: $351.23 5 to 9: $333.67 10 +: $316.11 |
SKU:R16-6-4860-HIP |
R16-6-4860-HIP |
In Stock - Usually ships same or next business day.
Full Cube Prismatic Reflective on .080" Aluminum| MATERIAL | SIZE | WORDING | PRICE | ADD TO CART | Catalog Part # |
|---|---|---|---|---|---|
Full Cube Prismatic | 24" x 30 " Full Cube Prismatic | Lights On When Raining | 1 to 4: $107.80 5 to 9: $102.41 10 +: $97.02 |
SKU:R16-6-2430-UPG |
R16-6-2430-UPG |
36" x 48" Full Cube Prismatic | Lights On When Raining | 1 to 4: $274.89 5 to 9: $261.15 10 +: $247.40 |
SKU:R16-6-3648-UPG |
R16-6-3648-UPG | |
48" x 60" Full Cube Prismatic | Lights On When Raining | 1 to 4: $469.59 5 to 9: $446.11 10 +: $422.63 |
SKU:R16-6-4860-UPG |
R16-6-4860-UPG |
In Stock - Usually ships same or next business day.
Lights On When Raining Sign Specifications
- Sign is manufactured on durable rust-proof .080" aluminum
- Pre-punched 3/8" mounting holes in top and bottom for easy installation.
- Meets M.U.T.C.D. specifications for highway use.
See catalog page 10.
The distinction from R16-5 is the trigger: this version keys to precipitation rather than to whether the wipers are running, which matters in states whose statute is written that way. Drivers unfamiliar with local law are the audience, so placement clusters at borders and on high-volume approaches. Neither panel carries an advisory speed or supplements one.
Available Reflective Finishes:
- Most common reflective finish used for traffic signs
- Meets federal minimum requirements
- 10 Year Outdoor Durability
- Brightest and most visible
- Exceeds federal minimum requirements
- 10 Year Outdoor Durability
Sign Posts
Sign Installation Hardware
Sign Installation Hardware
Other Headlight Use Signs
R16-6 Sign Specifications
| Legend: | LIGHTS ON WHEN RAINING |
| MUTCD Sign Code #: | R16-6 |
| Shape: | Vertical Rectangle |
| Color: | BLACK on WHITE |

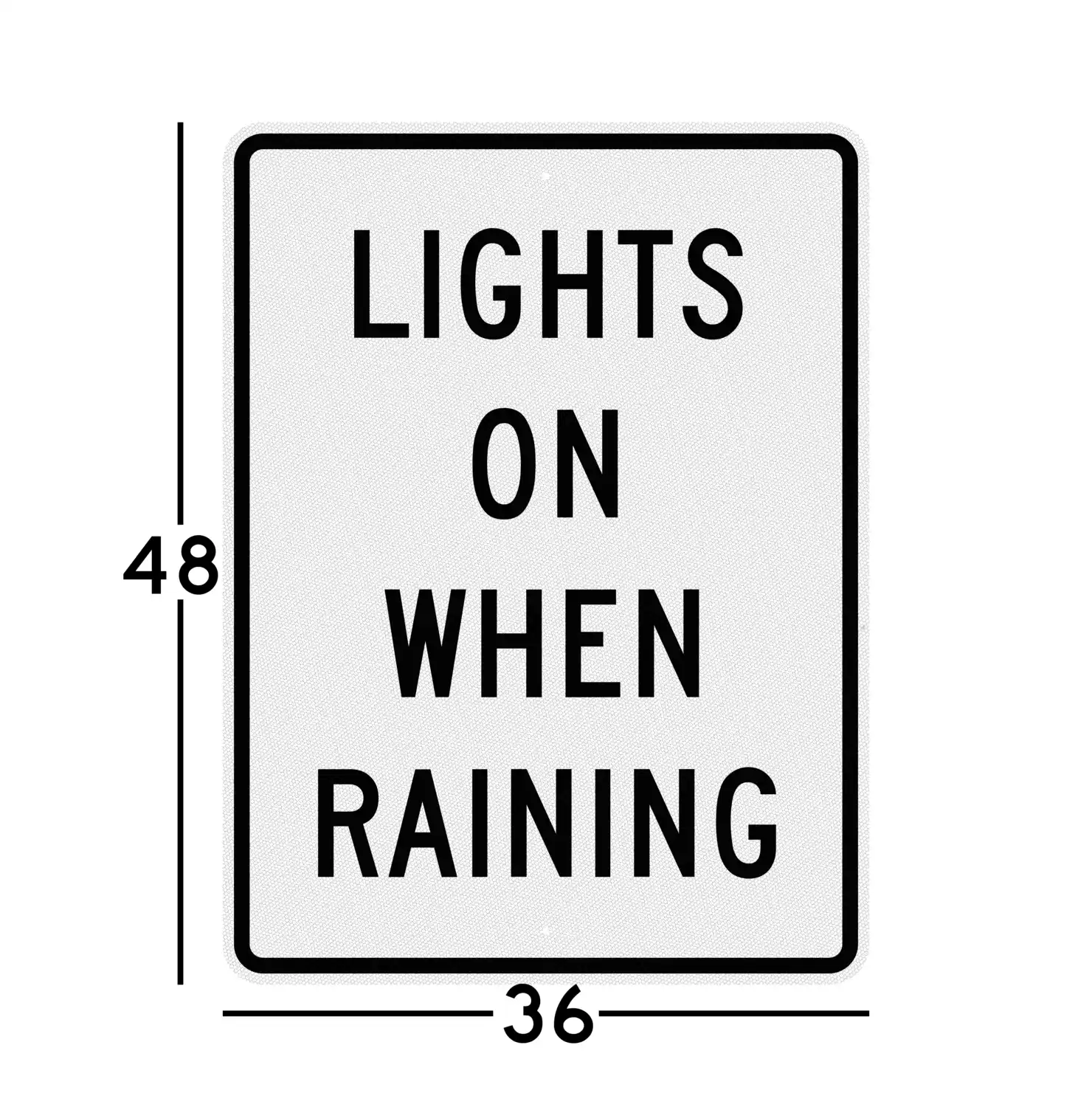

| Available Sizes and Weights: | Size: 24" x 30 "; Ship Weight: 6.2 lbs |
| Size: 36" x 48"; Ship Weight: 14.9 lbs | |
| Size: 48" x 60"; Ship Weight: 24.8 lbs | |
| Available Styles: | High Intensity Prismatic Reflective on .080" Aluminum |
| Full Cube Prismatic Reflective on .080" Aluminum | |
| Full Description: | R16-6 has a white background color. The text and border are black and it is in the shape of a vertical rectangle. |

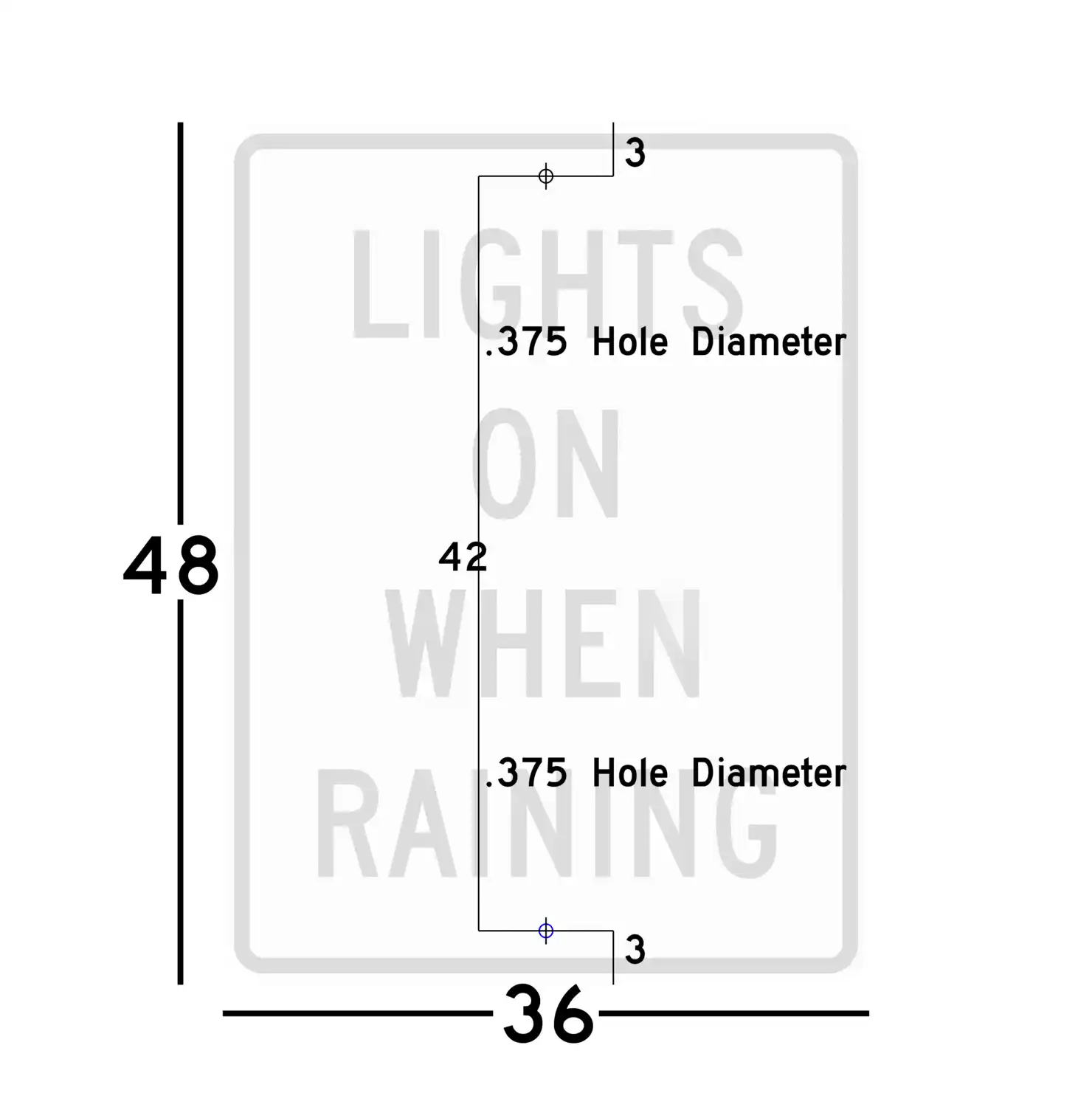

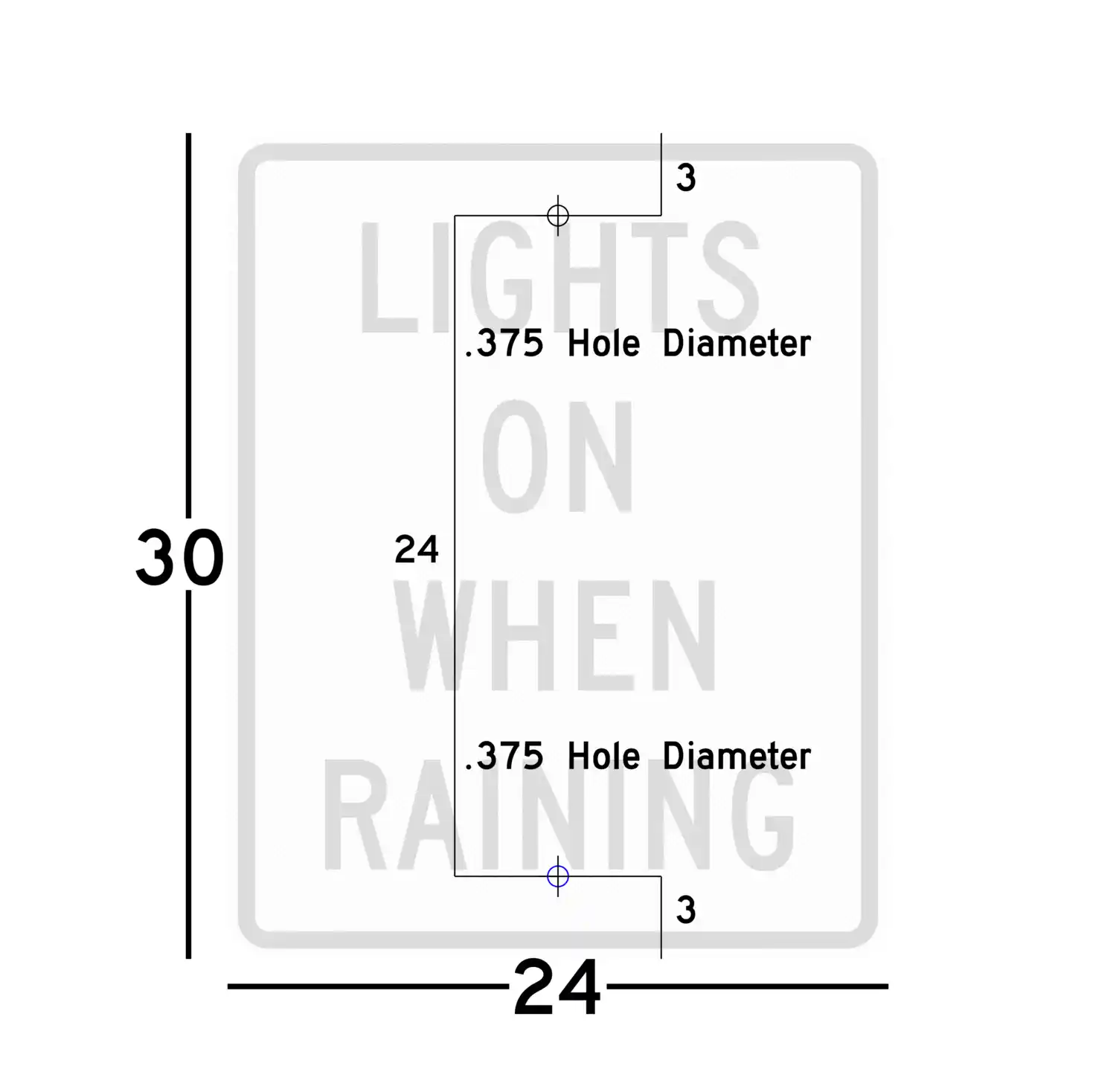

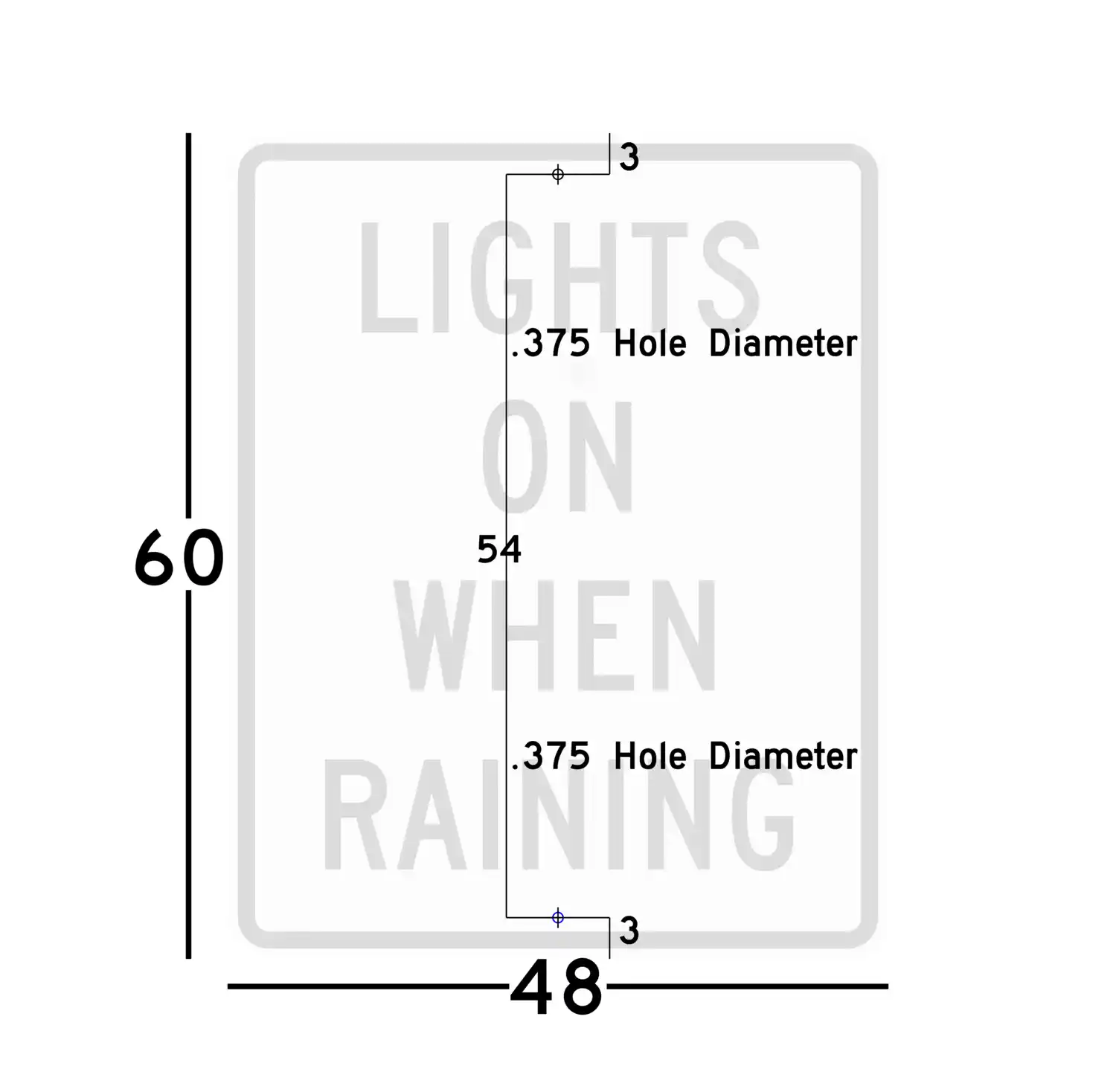

| Mounting Hole Placement: |  |
