End Daytime Headlight Section Sign (R16-11)
SKU# R16-11
End Daytime Headlight Section (R16-11): a white horizontal rectangle releasing the lighting requirement.
R16-11 Price
High Intensity Prismatic Reflective on .080" Aluminum
| MATERIAL | SIZE | WORDING | PRICE | ADD TO CART | Catalog Part # |
|---|---|---|---|---|---|
High Intensity Prismatic |
48" x 15" High Intensity Prismatic |
End Daytime Headlight Section | 1 to 4: $99.22 5 to 9: $94.26 10 +: $89.30 |
SKU:R16-11-4815-HIP |
R16-11-4815-HIP |
72" x 24" High Intensity Prismatic |
End Daytime Headlight Section | 1 to 4: $247.94 5 to 9: $235.54 10 +: $223.15 |
SKU:R16-11-7224-HIP |
R16-11-7224-HIP | |
96" x 30" High Intensity Prismatic |
End Daytime Headlight Section | 1 to 4: $351.23 5 to 9: $333.67 10 +: $316.11 |
SKU:R16-11-9630-HIP |
R16-11-9630-HIP |
In Stock - Usually ships same or next business day.
OmniCube™ Full Cube Prismatic Reflective on .080" Aluminum| MATERIAL | SIZE | WORDING | PRICE | ADD TO CART | Catalog Part # |
|---|---|---|---|---|---|
OmniCube™ Full Cube (UPG) |
48" x 15" OmniCube™ Full Cube (UPG) |
End Daytime Headlight Section | 1 to 4: $107.80 5 to 9: $102.41 10 +: $97.02 |
SKU:R16-11-4815-UPG |
R16-11-4815-UPG |
72" x 24" OmniCube™ Full Cube (UPG) |
End Daytime Headlight Section | 1 to 4: $274.89 5 to 9: $261.15 10 +: $247.40 |
SKU:R16-11-7224-UPG |
R16-11-7224-UPG | |
96" x 30" OmniCube™ Full Cube (UPG) |
End Daytime Headlight Section | 1 to 4: $469.59 5 to 9: $446.11 10 +: $422.63 |
SKU:R16-11-9630-UPG |
R16-11-9630-UPG |
In Stock - Usually ships same or next business day.
End Daytime Headlight Section Sign Specifications
- Sign is manufactured on durable rust-proof .080" aluminum

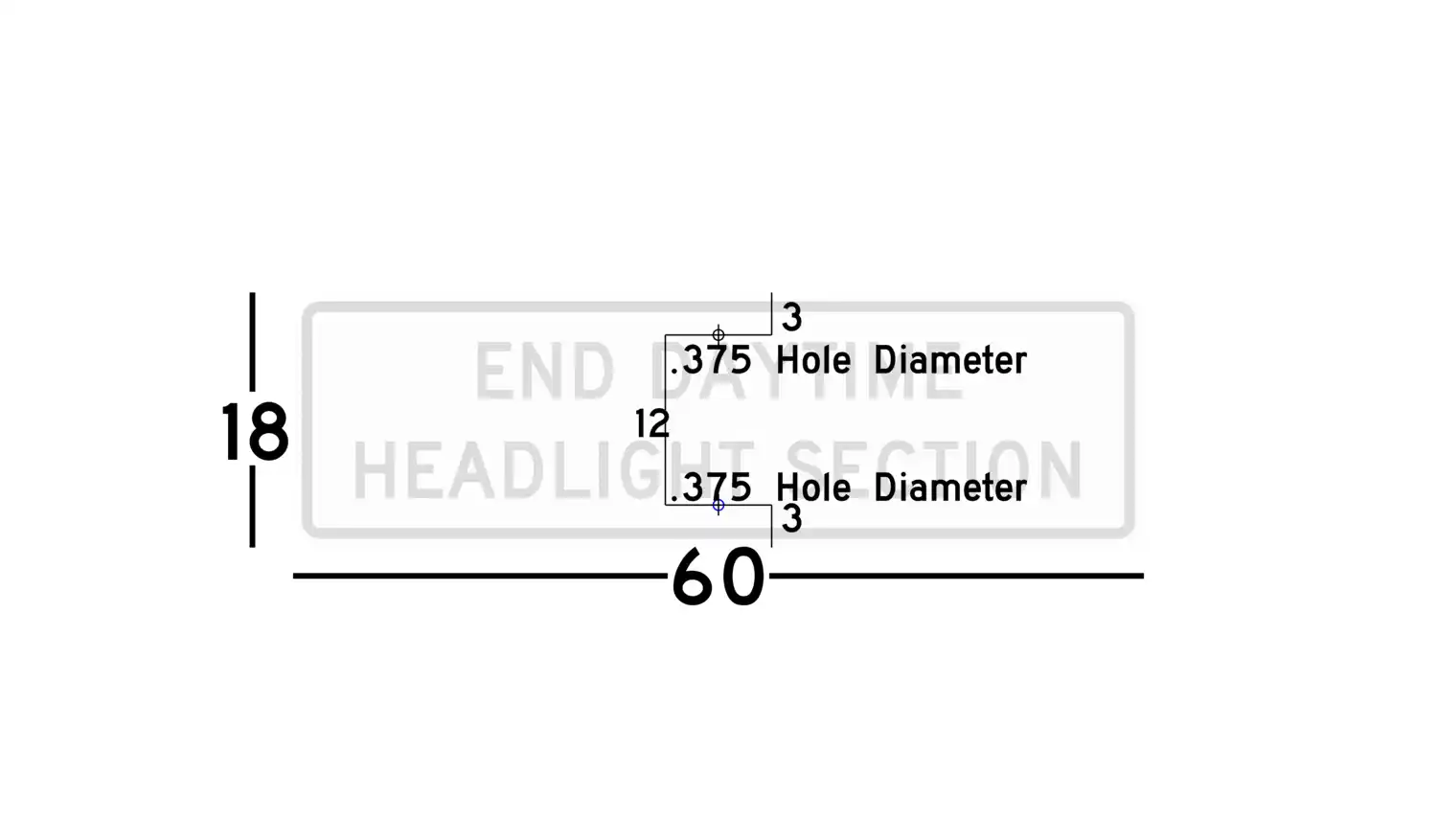

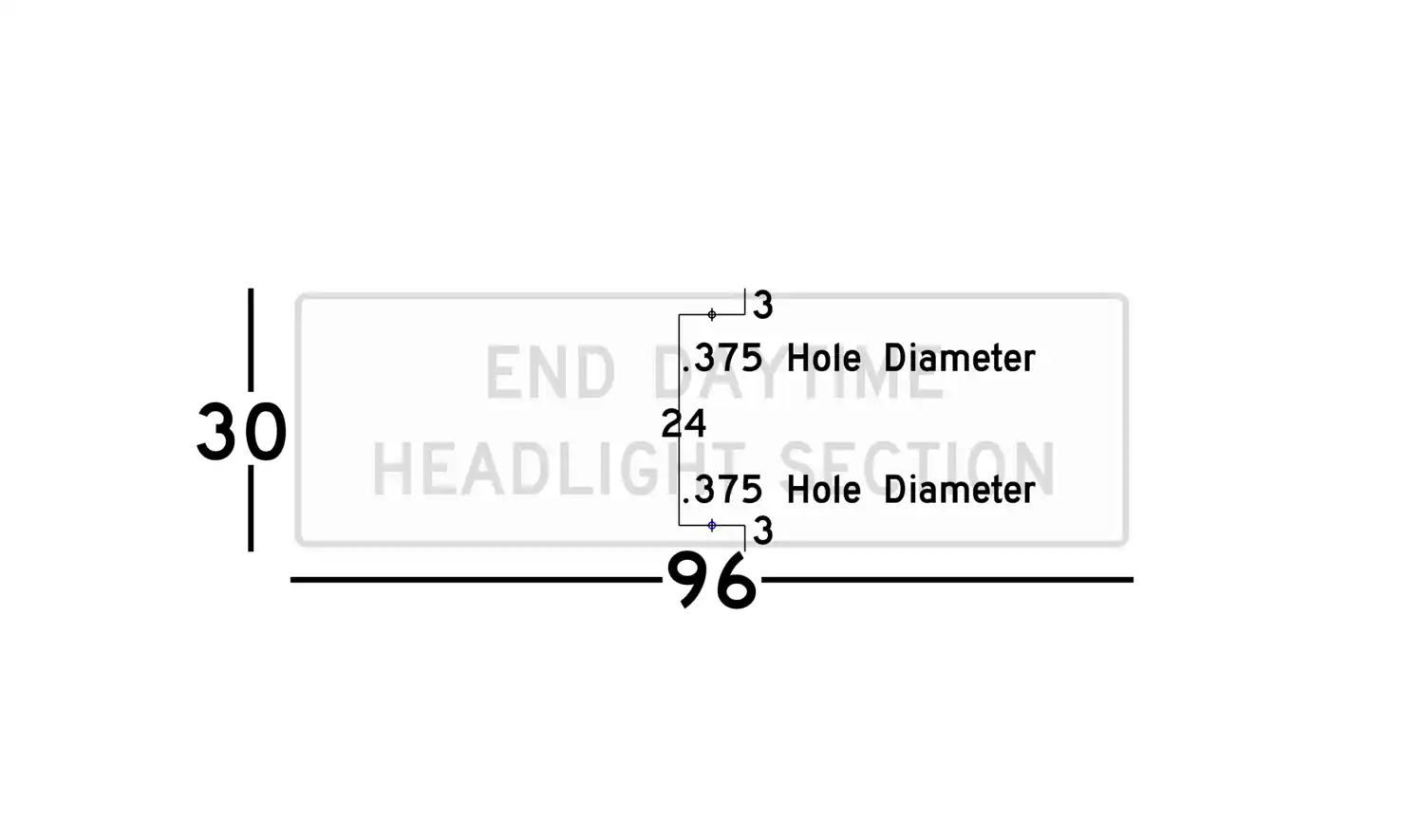

- Pre-punched 3/8" mounting holes in top and bottom for easy installation.
- Meets M.U.T.C.D. specifications for highway use.
See catalog page 10.
Ordering this without R16-10 leaves a corridor with a terminus but no beginning, so the two are normally specified together. Drivers reaching it may switch off, though nothing obliges them to — the panel withdraws an obligation rather than imposing one. For tunnel and pass segments where location rather than daylight is the trigger, R16-9 fills the equivalent slot.
Available Reflective Finishes:
- Most common reflective finish used for traffic signs
- Meets federal minimum requirements
- 10 Year Outdoor Durability
- Brightest and most visible
- Exceeds federal minimum requirements
- 10 Year Outdoor Durability
Sign Posts
Sign Installation Hardware
Sign Installation Hardware
Other Headlight Use Signs

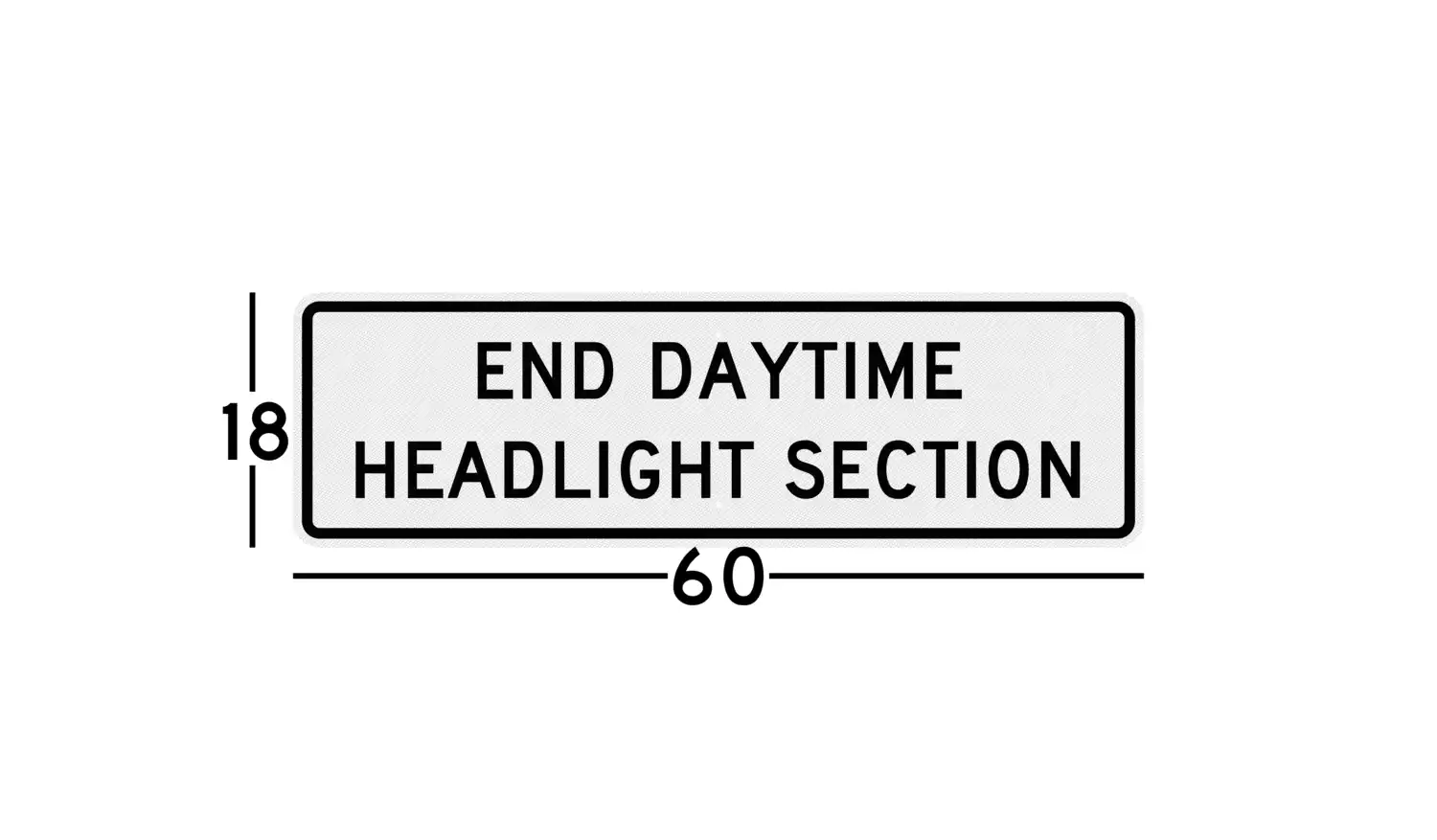

R16-11 Sign Specifications
| Legend: | END DAYTIME HEADLIGHT SECTION |
| MUTCD Sign Code #: | R16-11 |
| Shape: | Horizontal Rectangle |
| Color: | BLACK on WHITE |
| Available Sizes and Weights: | Size: 48" x 15"; Ship Weight: 6.2 lbs |
| Size: 72" x 24"; Ship Weight: 14.9 lbs | |
| Size: 96" x 30"; Ship Weight: 24.8 lbs | |
| Available Styles: | High Intensity Prismatic Reflective on .080" Aluminum |
| OmniCube™ Full Cube Prismatic Reflective on .080" Aluminum | |

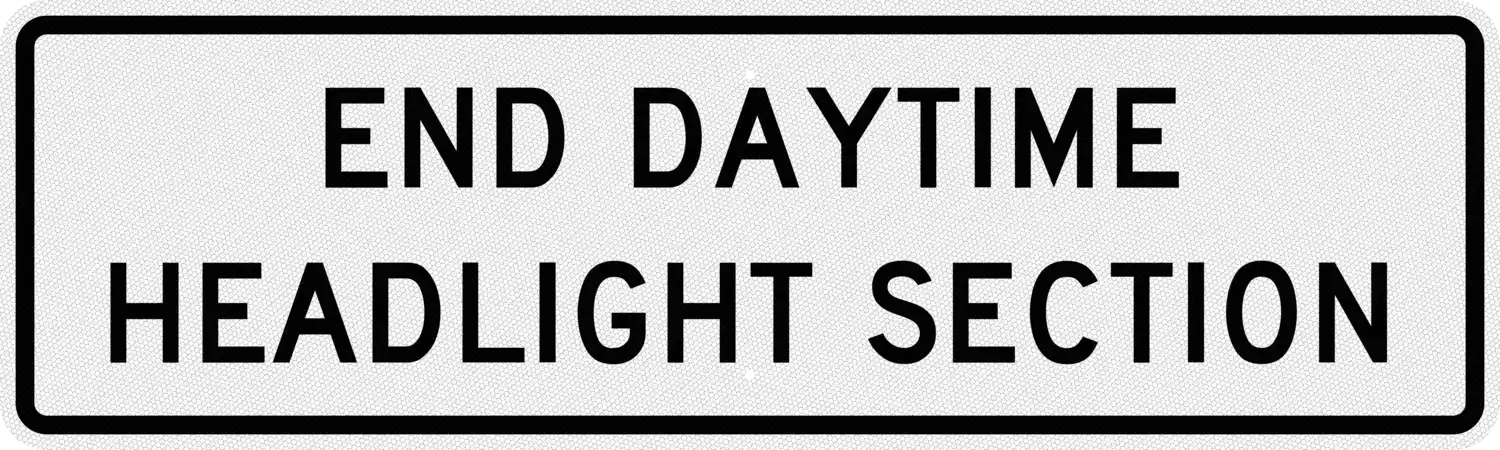

| Full Description: | R16-11 has a white background color. The text and border are black and it is in the shape of a horizontal rectangle. |
