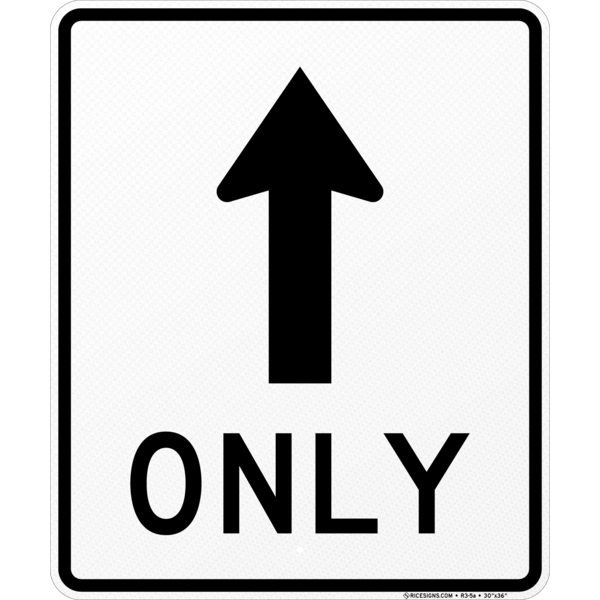

Mandatory Movement Straight Sign (R3-5a)
Mandatory Movement Straight (R3-5a): a white vertical rectangle confining the lane to a through movement.
R3-5a Price
High Intensity Prismatic Reflective on .080" Aluminum
| MATERIAL | SIZE | WORDING | PRICE | ADD TO CART | Catalog Part # |
|---|---|---|---|---|---|
High Intensity Prismatic | 30" x 36" High Intensity Prismatic | Mandatory Movement Straight | 1 to 4: $131.56 5 to 9: $124.98 10 +: $118.40 |
SKU:R3-5a-3036-HIP |
R3-5a-3036-HIP |
In Stock - Usually ships same or next business day.
Full Cube Prismatic Reflective on .080" Aluminum| MATERIAL | SIZE | WORDING | PRICE | ADD TO CART | Catalog Part # |
|---|---|---|---|---|---|
Full Cube Prismatic | 30" x 36" Full Cube Prismatic | Mandatory Movement Straight | 1 to 4: $143.55 5 to 9: $136.37 10 +: $129.20 |
SKU:R3-5a-3036-UPG |
R3-5a-3036-UPG |
In Stock - Usually ships same or next business day.
Mandatory Movement Straight Sign Specifications
- Sign is manufactured on durable rust-proof .080" aluminum
- Pre-punched 3/8" mounting holes in top and bottom for easy installation.
- Meets M.U.T.C.D. specifications for highway use.
See catalog page 9.
It prohibits turns from the lane, which is the difference from the R3-6 series where a turn remains available. Typical use is a through lane flanked by turn lanes, where drivers might otherwise assume a turn is permitted. R3-5L and R3-5R handle the mandatory-turn cases.
Available Reflective Finishes:
- Most common reflective finish used for traffic signs
- Meets federal minimum requirements
- 10 Year Outdoor Durability
- Brightest and most visible
- Exceeds federal minimum requirements
- 10 Year Outdoor Durability
Sign Posts
Sign Installation Hardware
Sign Installation Hardware
Other Lane Control Signs
Mandatory Movement Left - R3-5L
Mandatory Movement Right - R3-5R
Optional Movement Left Or Straight - R3-6L
Optional Movement Right Or Straight - R3-6R
Alternate Movement Right Ok - R3-6ALT-R
Alternate Movement Left Ok - R3-6ALT-L
Lane Movement Two Lanes - R3-8
Lane Movement Three Lanes - R3-8a
Mandatory Movement Three Lanes - R3-8b
Left Lane Must Turn Left - R3-7L
Right Lane Must Turn Right - R3-7R
Two-way Left Turn Only (overhead) - R3-9a
Two-way Left Turn Only (post-mounted) - R3-9b
Begin Left Turn Lane With Arrow - R3-20L
Begin Right Turn Lane With Arrow - R3-20R
Hov 2+ Only 2 Or More Persons Per Vehicle - R3-10
Hov 2+ Only Time Restrictions - R3-11
Hov 2+ Lane Ahead - R3-12
Hov 2+ Only 2 Or More Persons Per Vehicle - R3-13
Hov 2+ Only Time Restrictions - R3-14
R3-5a Sign Specifications
| Legend: | MANDATORY MOVEMENT STRAIGHT |
| MUTCD Sign Code #: | R3-5a |
| Shape: | Vertical Rectangle |
| Color: | BLACK on WHITE |
| Available Sizes and Weights: | Size: 30" x 36"; Ship Weight: 9.3 lbs |
| Available Styles: | High Intensity Prismatic Reflective on .080" Aluminum |
| Full Cube Prismatic Reflective on .080" Aluminum | |
| Full Description: | R3-5a has a white background color. The text and border are black and it is in the shape of a vertical rectangle. |
| Mounting Hole Placement: |  |
