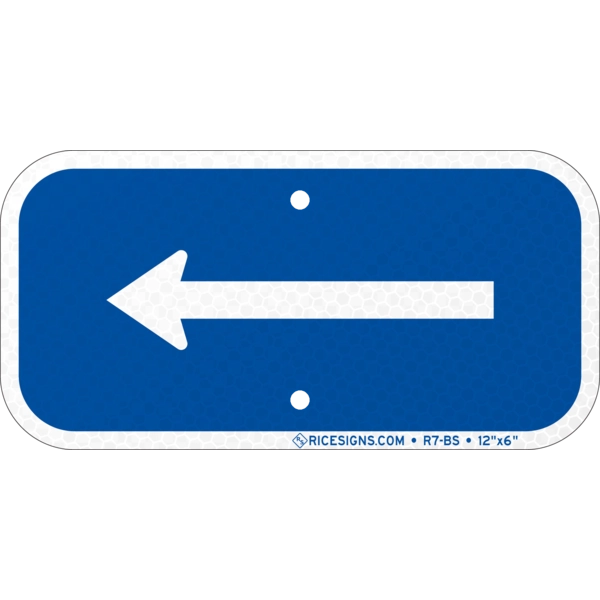

Single Arrow Blue Sign (R7-BS)
The R7-BS placard uses a blue single arrow to show the direction an accessible-parking regulation applies. It is a blue plaque used with handicap parking signs.
Two sizes, two prismatic reflective grades — $23.76 to $42.13 per sign, or from $21.38 at volume.
- 5 to 9
- $22.57
- 10 +
- $21.38
✓ In stock Free Shipping
R7-BS-126-HIP(None)Designed in accordance with the MUTCD design standards, on rust-proof .080" aluminum.
- In stock
Ships in 1-3 Business Days
Free Shipping on this item
Volume pricing
at 5+
In stockBrowse the collection of Arrow Placard Signs
All R7-BS prices
Every size and sheeting combination. Click to select.
| Size | High Intensity Prismatic | OmniCube™ Full Cube |
|---|---|---|
| 12 x 6 | $23.76 each (1-4) 5-9: $22.57 10+: $21.38 | $32.45 each (1-4) 5-9: $30.83 10+: $29.21 |
| 18 x 9 | $32.23 each (1-4) 5-9: $30.62 10+: $29.01 | $42.13 each (1-4) 5-9: $40.02 10+: $37.92 |
R7-BS Sign Specifications
| Legend: | SINGLE ARROW BLUE |
|---|---|
| Sign Code #: | R7-BS |
| Shape: | Horizontal Rectangle |
| Color: | WHITE on BLUE |
| Available Sizes and Weights: | Size: 12 x 6; Ship Weight: 0.6 lbs |
| Size: 18 x 9; Ship Weight: 1.4 lbs | |
| Available Styles: | High Intensity Prismatic Reflective on .080" Aluminum |
| OmniCube™ Full Cube Prismatic Reflective on .080" Aluminum | |
| Full Description: | R7-BS has a blue background color. The text and border are white and it is in the shape of a horizontal rectangle. |
R7-BS Purpose and Use
Pointing one way only, the Single Arrow Blue placard keeps an accessible parking reservation from being read as covering neighboring spaces.

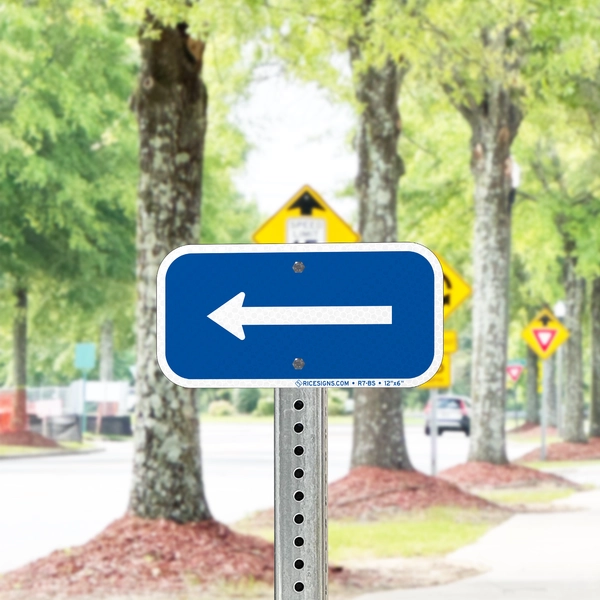

Use it under an R7-8 where a single accessible stall sits to one side of the post, so the reservation is not read as covering the next space over.
R7-BS Questions
Why would I need a single arrow on an accessible parking sign?
Where one accessible stall sits to the side of the post, the R7-BS keeps the reservation from being read as covering the adjacent space, which is a common source of wrongful towing disputes.
Does the R7-BS replace the van accessible placard?
No. The arrow indicates direction only. A van accessible stall still needs the R7-8P or D9-6P placard in addition to the arrow.
R7-BS Reflective Sheeting Options
Because the R7-BS mounts below a main sign and should match the sheeting above it, the T-11500 OmniCube - up to 60 percent brighter with a 12-year outdoor durability rating - is the safer choice when night visibility matters most, while the T-6500 High Intensity Prismatic delivers proven 10-year durability.
- Most Common Reflective Finish
- Very Reflective At Night
- Required for Most Highway Signs
- 10 Year Outdoor Durability
- Brightest and Most Visible
- Most Reflective At Night
- Up to 60 percent brighter than HIP
- 12 Year Outdoor Durability

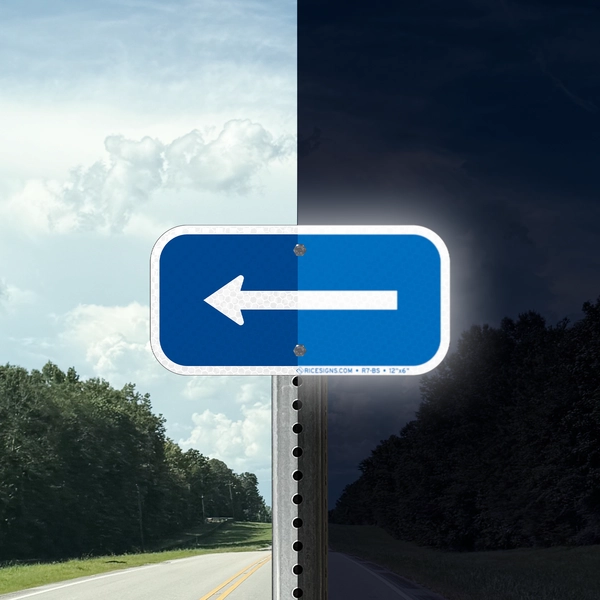

The R7-BS puts a white legend on a majority blue background, and blue has lower retroreflectivity than white as defined by ASTM D4956. This sign therefore starts with less light return than a white-background sign of the same size. That makes the T-11500 OmniCube the more important upgrade here, not the less — it is what gets a blue sign readable from as far off as the sign it modifies rather than only from a car length away.
Compare T-6500 and T-11500 OmniCube retroreflectivity, durability and warranty →

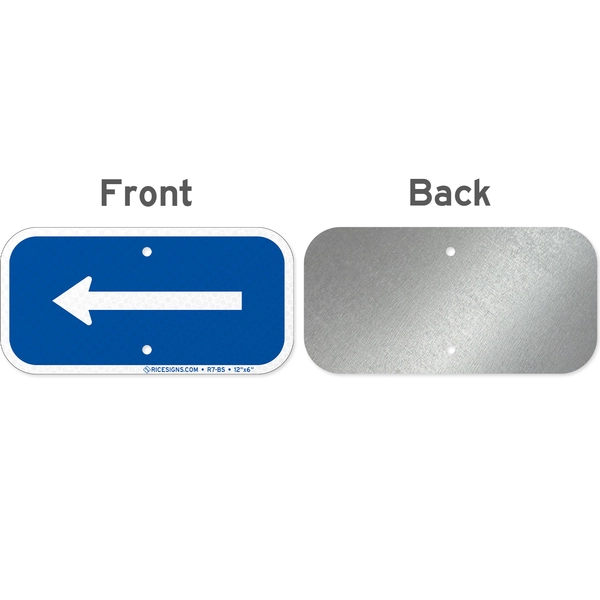

R7-BS Mounting Hole Pattern and Spacing
The R7-BS is a horizontal placard, so its mounting holes are spaced to line up with the holes of the sign it mounts beneath, letting both share a single post without drilling
