Double Arrow Red Sign (R7-RD)
The R7-RD placard uses a red double arrow to show that a parking prohibition applies in both directions. It is a white plaque used with no-parking signs.
Two sizes, two prismatic reflective grades — $23.76 to $42.13 per sign, or from $21.38 at volume.
- 5 to 9
- $22.57
- 10 +
- $21.38
✓ In stock Free Shipping
R7-RD-126-HIP(None)Designed in accordance with the MUTCD design standards, on rust-proof .080" aluminum.
- In stock
Ships in 1-3 Business Days
Free Shipping on this item
Volume pricing
at 5+
In stockBrowse the collection of Arrow Placard Signs
All R7-RD prices
Every size and sheeting combination. Click to select.
| Size | High Intensity Prismatic | OmniCube™ Full Cube |
|---|---|---|
| 12 x 6 | $23.76 each (1-4) 5-9: $22.57 10+: $21.38 | $32.45 each (1-4) 5-9: $30.83 10+: $29.21 |
| 18 x 9 | $32.23 each (1-4) 5-9: $30.62 10+: $29.01 | $42.13 each (1-4) 5-9: $40.02 10+: $37.92 |
R7-RD Sign Specifications
| Legend: | DOUBLE ARROW RED |
|---|---|
| Sign Code #: | R7-RD |
| Shape: | Horizontal Rectangle |
| Color: | RED on WHITE |
| Available Sizes and Weights: | Size: 12 x 6; Ship Weight: 0.6 lbs |
| Size: 18 x 9; Ship Weight: 1.4 lbs | |
| Available Styles: | High Intensity Prismatic Reflective on .080" Aluminum |
| OmniCube™ Full Cube Prismatic Reflective on .080" Aluminum | |
| Full Description: | R7-RD has a white background color. The text and border are red and it is in the shape of a horizontal rectangle. |
R7-RD Purpose and Use
The Double Arrow Red placard extends a parking prohibition outward in both directions along a curb.

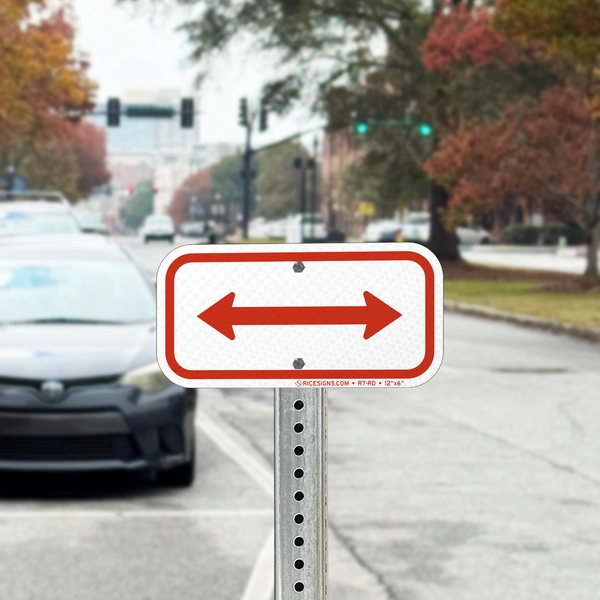

Attach it beneath a no parking, fire lane, or tow away sign placed mid-run along a curb where the restriction continues past the post both ways.
R7-RD Questions
How far does a prohibition with an R7-RD double arrow extend?
It extends in both directions from the post, continuing until another parking sign changes the regulation or the restricted stretch ends.
Where along a curb should the R7-RD be posted?
Mid-run, at the middle of the restricted stretch, so the arrows correctly describe a prohibition that carries past the post both ways.
R7-RD Reflective Sheeting Options
Because the R7-RD mounts below a main sign and should match the sheeting above it, the T-11500 OmniCube - up to 60 percent brighter with a 12-year outdoor durability rating - is the safer choice when night visibility matters most, while the T-6500 High Intensity Prismatic delivers proven 10-year durability.
- Most Common Reflective Finish
- Very Reflective At Night
- Required for Most Highway Signs
- 10 Year Outdoor Durability
- Brightest and Most Visible
- Most Reflective At Night
- Up to 60 percent brighter than HIP
- 12 Year Outdoor Durability

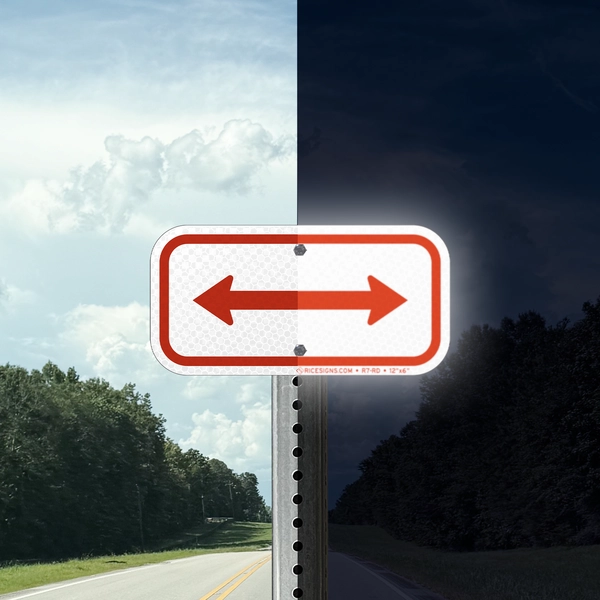

The R7-RD puts a red legend on a white reflective background, and white returns more light than any other color under ASTM D4956, so nearly the entire face lights up under headlights. That is why stepping up to the T-11500 OmniCube produces such a visible change on this sign: you are brightening the color that already dominates the sign face.
Compare T-6500 and T-11500 OmniCube retroreflectivity, durability and warranty →

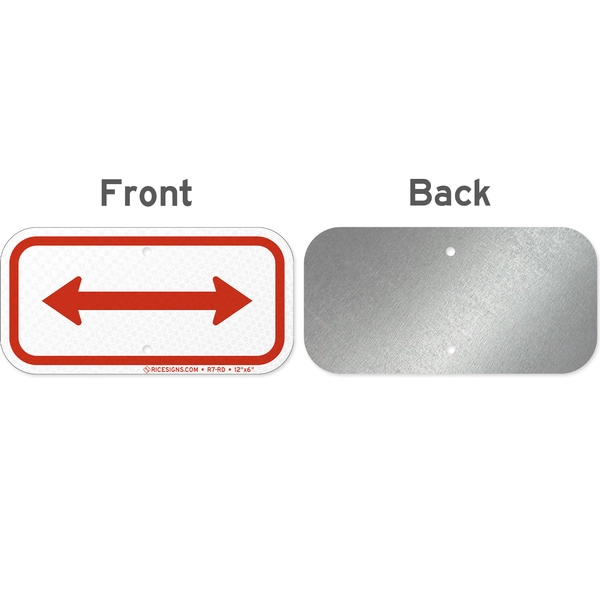

R7-RD Mounting Hole Pattern and Spacing
The R7-RD is a horizontal placard, so its mounting holes are spaced to line up with the holes of the sign it mounts beneath, letting both share a single post without drilling
