Truck Crossing Signs
SKU# W8-6
Truck Crossing Sign Details:
- Truck Crossing Sign is manufactured on durable rust-proof .080" aluminum
- Pre-punched 3/8" mounting holes in top and bottom for easy installation.
- Meets M.U.T.C.D. specifications for highway use.
- See Truck Crossing Signs in our catalog on page 24.
In Stock - Usually ships same or next business day.
High Intensity Prismatic Reflective on .080" Aluminum:
| MATERIAL | SIZE | WORDING | PRICE PER SIGN | ADD TO CART | Catalog Part # | ||
|---|---|---|---|---|---|---|---|
| 1 to 4 | 5 to 9 | 10 + | |||||
High Intensity Prismatic |
24" x 24" | Truck Crossing | $72.60 | $68.97 | $65.34 | W8-6-2424-HIP | |
| 30" x 30" | Truck Crossing | $97.90 | $93.01 | $88.11 | W8-6-3030-HIP | ||
| 36" x 36" | Truck Crossing | $163.79 | $155.60 | $147.41 | W8-6-3636-HIP | ||
| 48" x 48" | Truck Crossing | $244.20 | $231.99 | $219.78 | W8-6-4848-HIP | ||
Fluorescent Yellow Prismatic Reflective on .080" Aluminum:
| MATERIAL | SIZE | WORDING | PRICE PER SIGN | ADD TO CART | Catalog Part # | ||
|---|---|---|---|---|---|---|---|
| 1 to 4 | 5 to 9 | 10 + | |||||
Fluorescent Yellow Prismatic |
24" x 24" | Truck Crossing | $80.85 | $76.81 | $72.77 | W8-6-2424-FYP | |
| 30" x 30" | Truck Crossing | $117.81 | $111.92 | $106.03 | W8-6-3030-FYP | ||
| 36" x 36" | Truck Crossing | $179.08 | $170.13 | $161.17 | W8-6-3636-FYP | ||
| 48" x 48" | Truck Crossing | $308.44 | $293.02 | $277.60 | W8-6-4848-FYP | ||
Available Reflective Finishes:
| High Intensity Prismatic Reflective | Fluorescent Yellow Prismatic Reflective |
|---|---|
|
|
Catalog Page 23Click to view
Catalog Page 24Click to view
Catalog Page 25Click to view
Truck Crossing Sign Specifications:
Legend: |
TRUCK CROSSING |
MUTCD Sign Code #: |
W8-6 |
Shape: |
Diamond |
Color: |
BLACK on YELLOW |

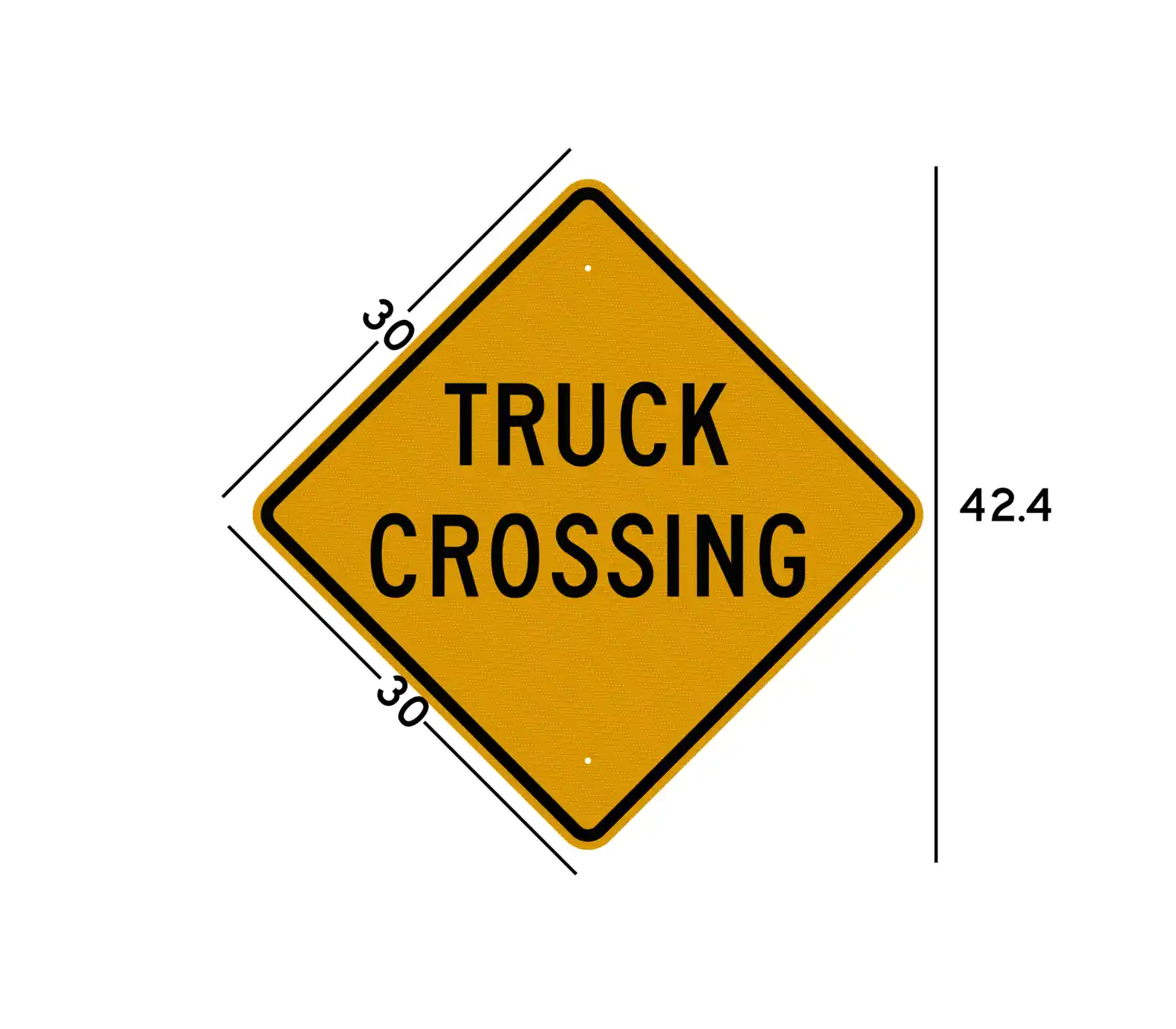

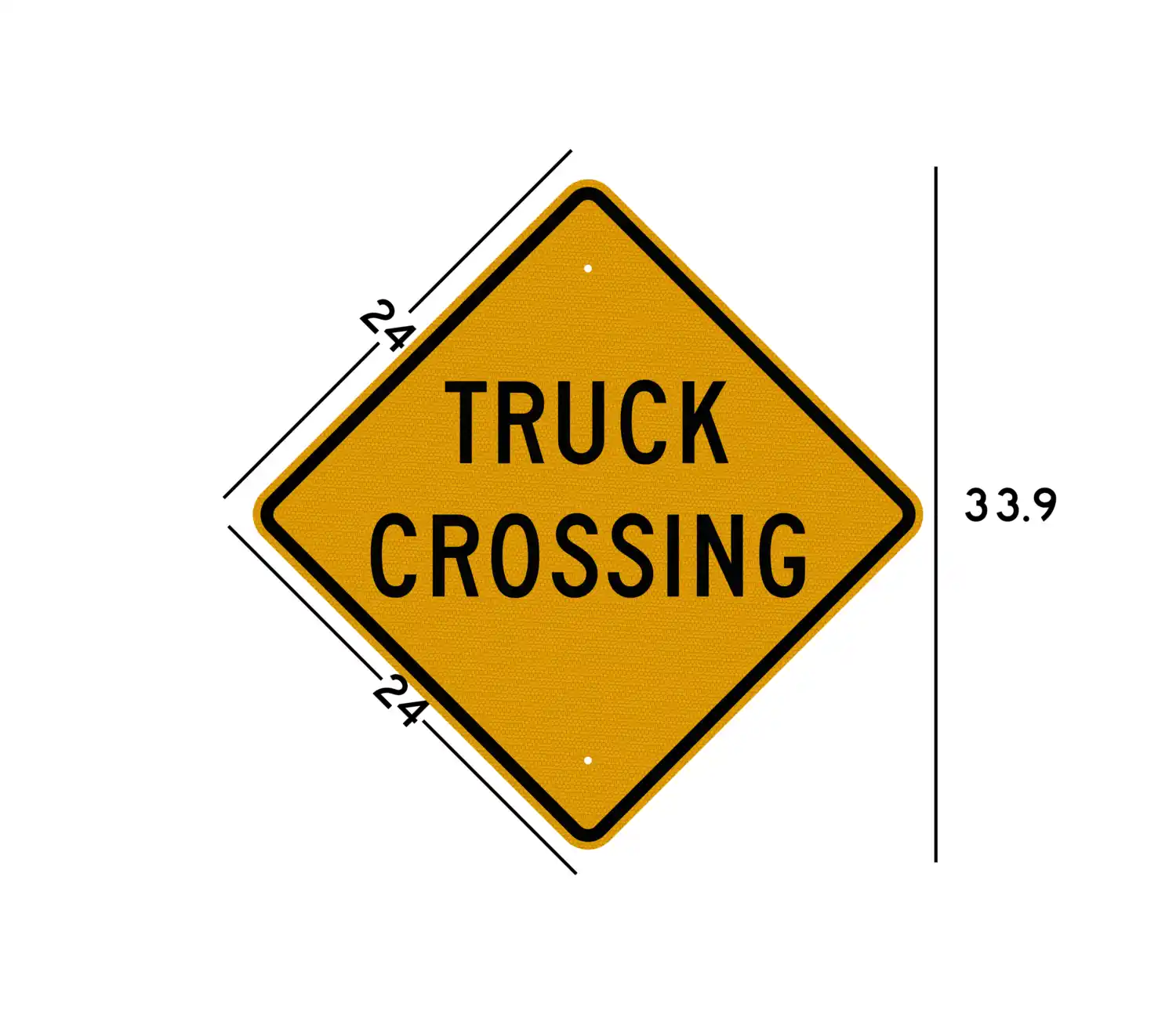

Available Truck Crossing Sign Sizes and Weights: | Size: 24" x 24"; Ship Weight: 5 lbs |
| Size: 30" x 30"; Ship Weight: 7.8 lbs | |
| Size: 36" x 36"; Ship Weight: 11.2 lbs | |
| Size: 48" x 48"; Ship Weight: 19.9 lbs | |
Available Styles: | High Intensity Prismatic Reflective on .080" Aluminum |
| Fluorescent Yellow Prismatic Reflective on .080" Aluminum | |
Full Truck Crossing Sign Description: |

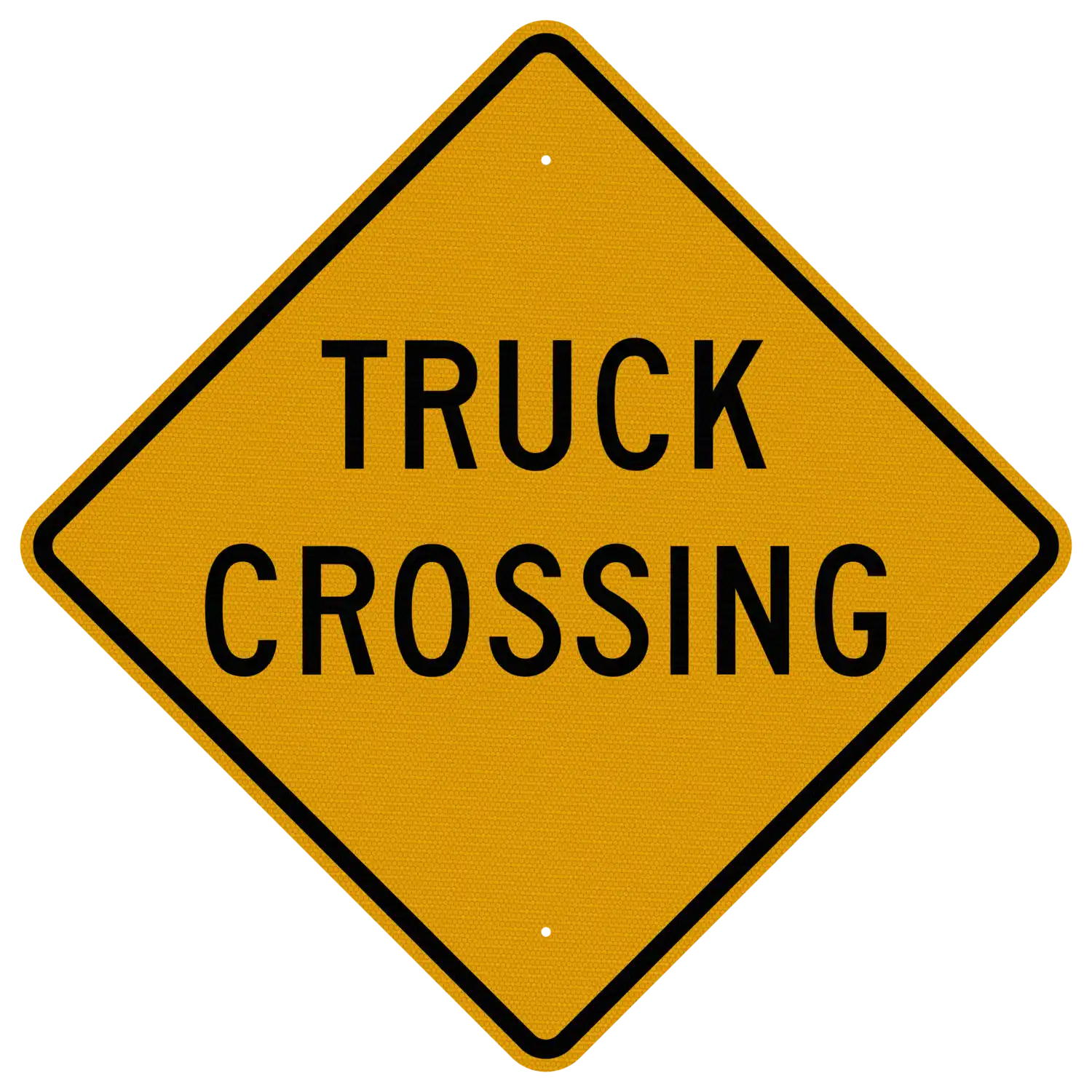

Truck Crossing Signs have a yellow background color. The text and border are black. Truck Crossing Signs are diamond shaped. |

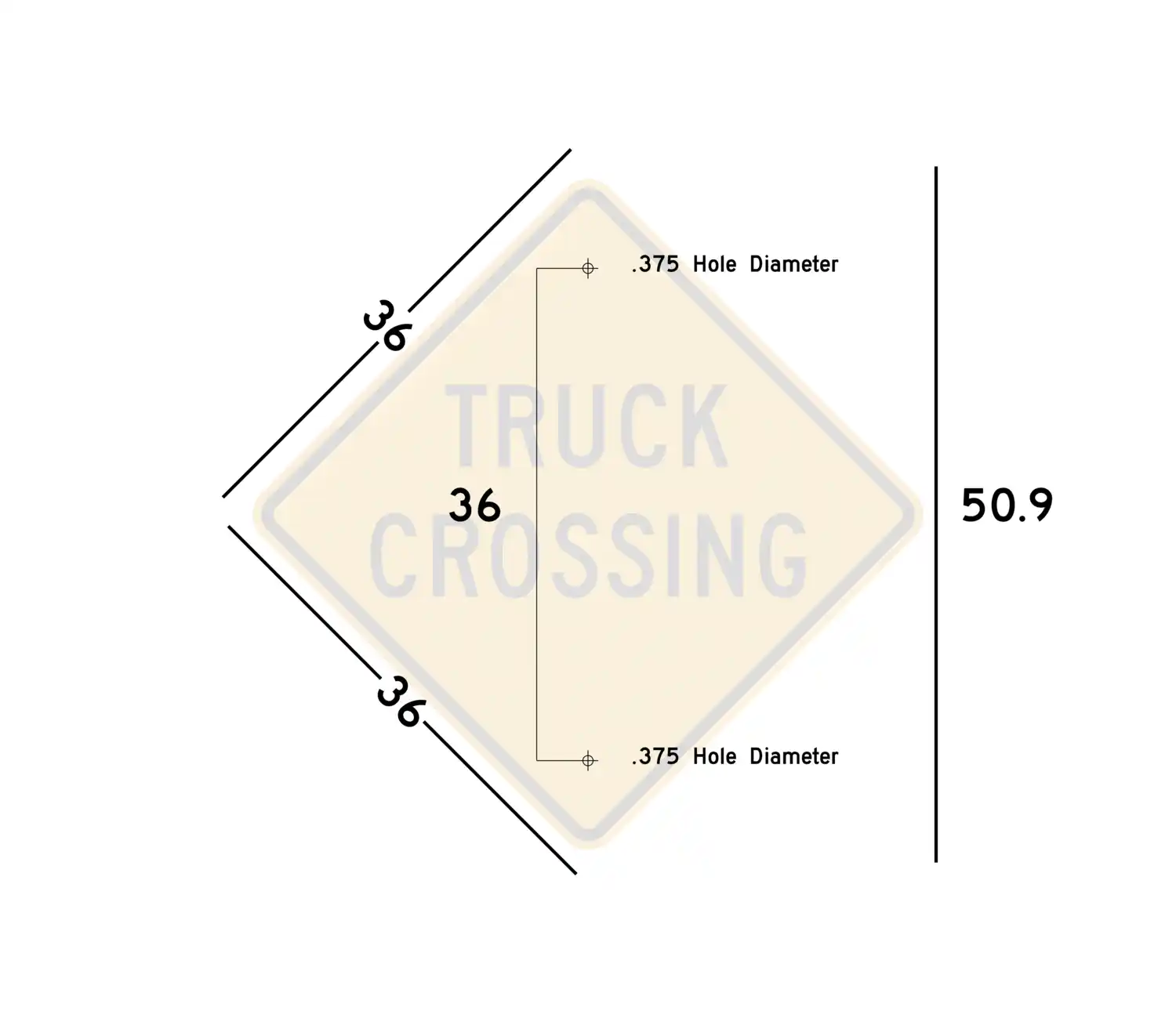

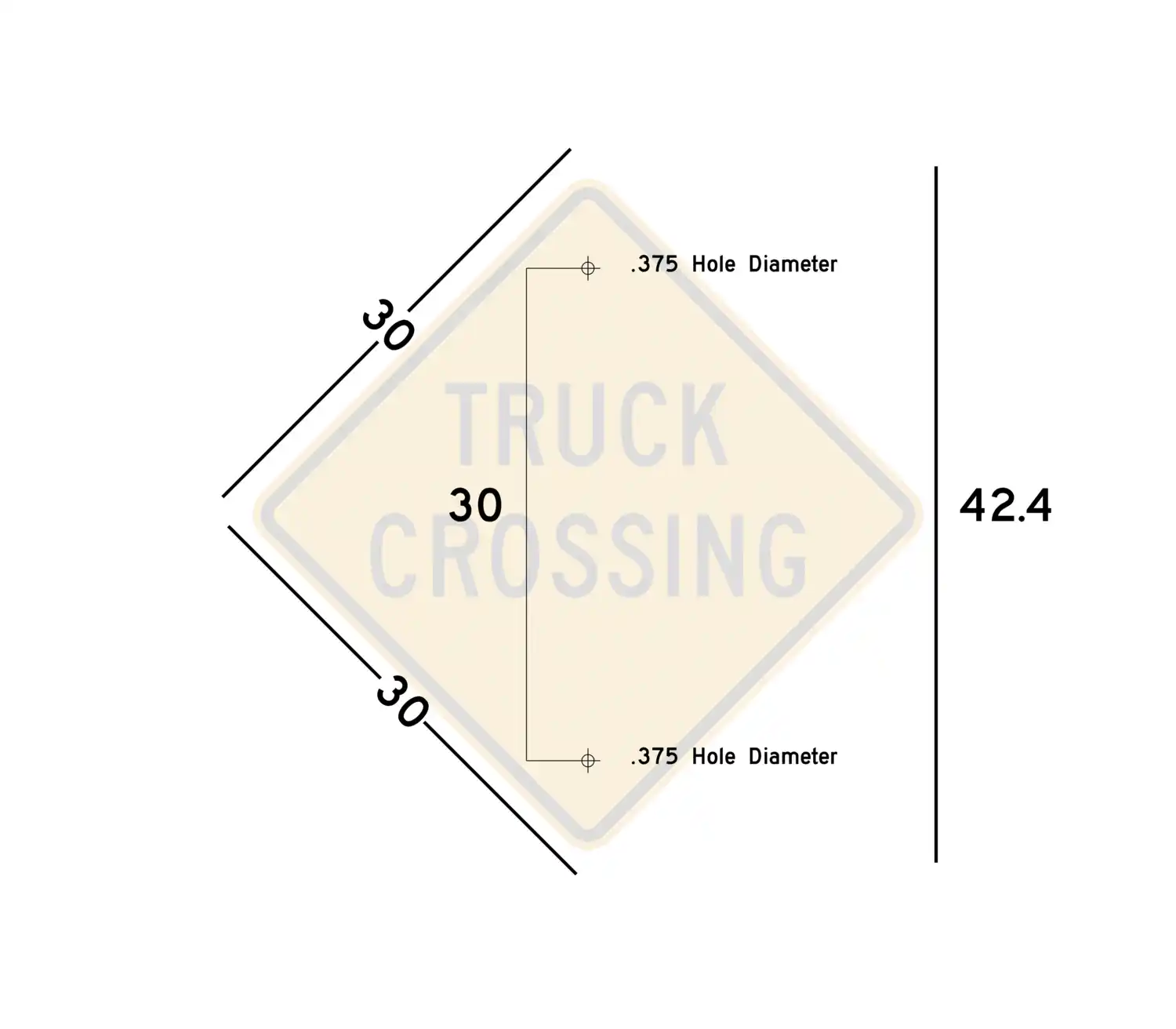

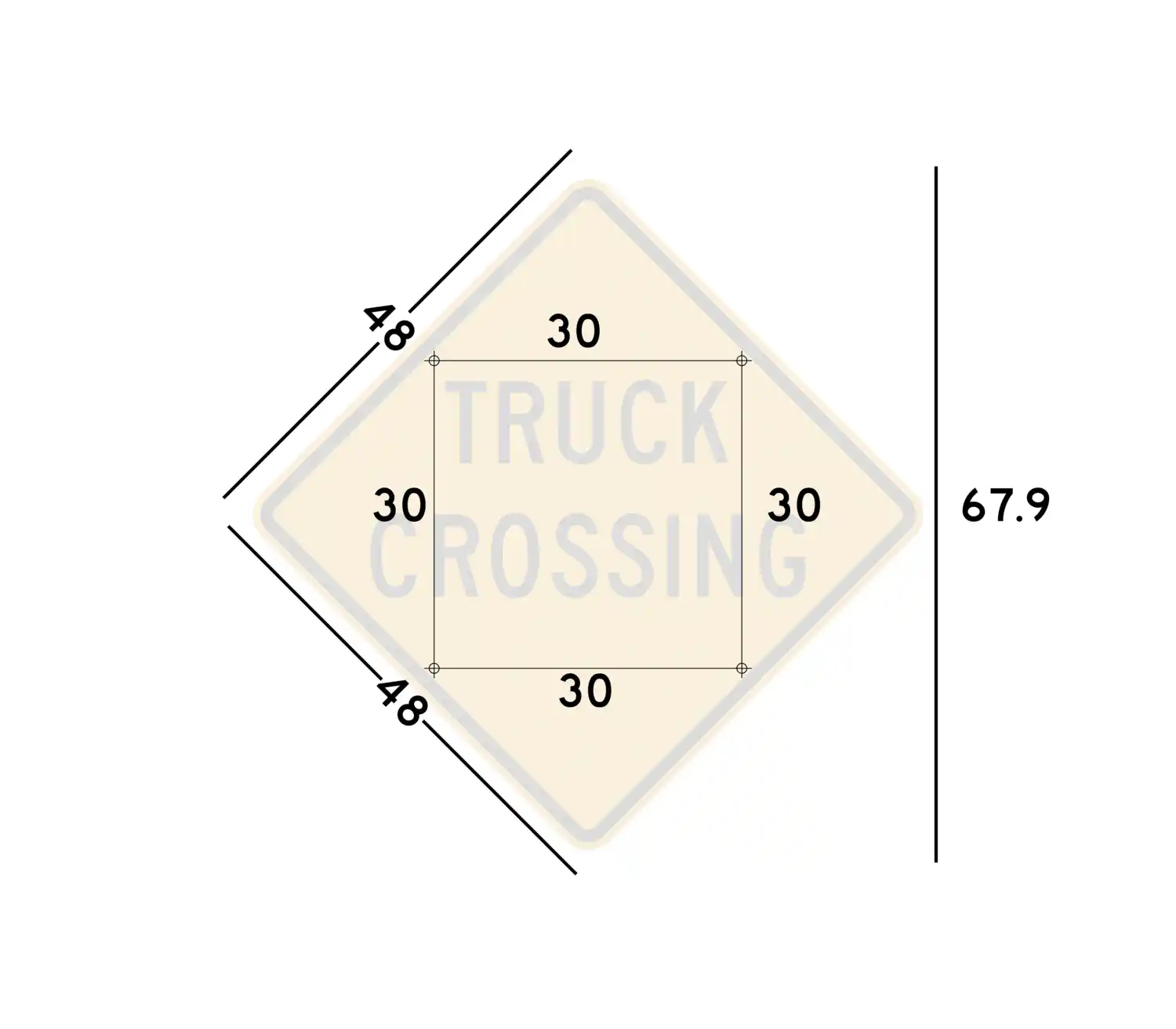

Mounting Hole Placement: |
 |
