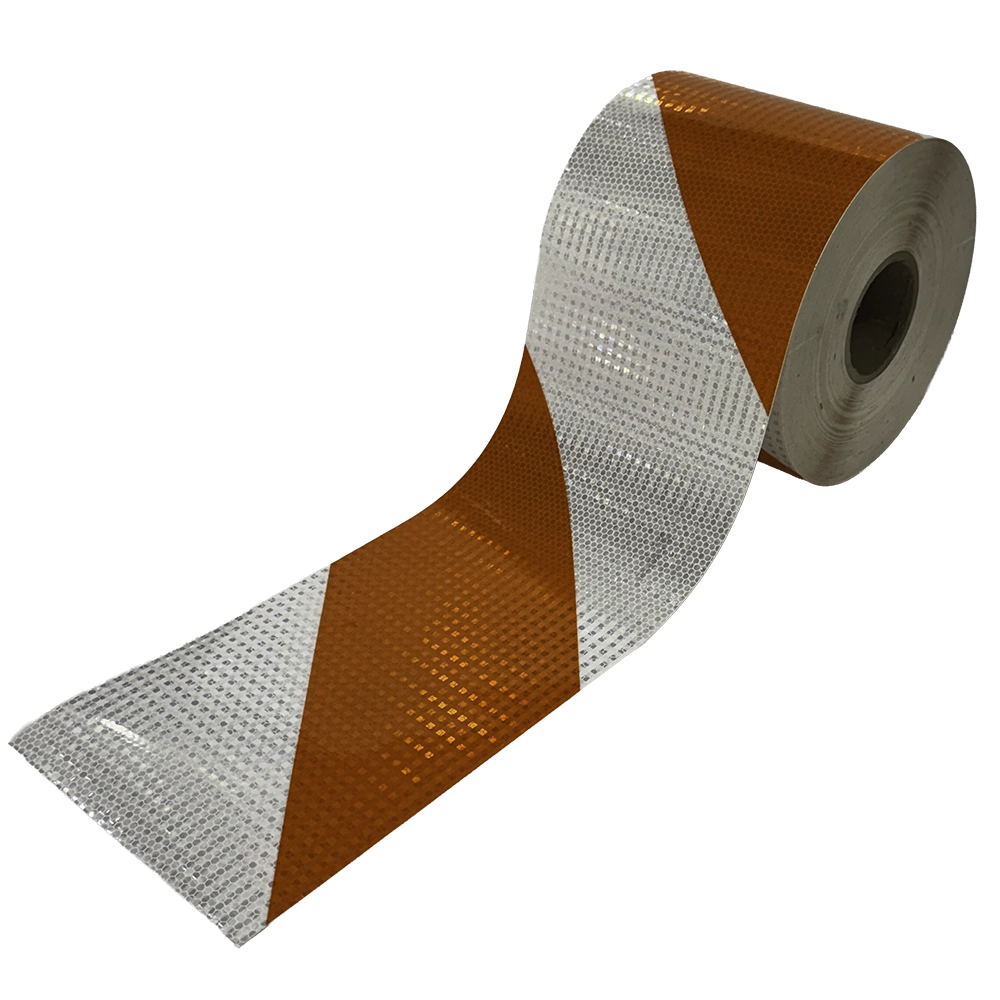

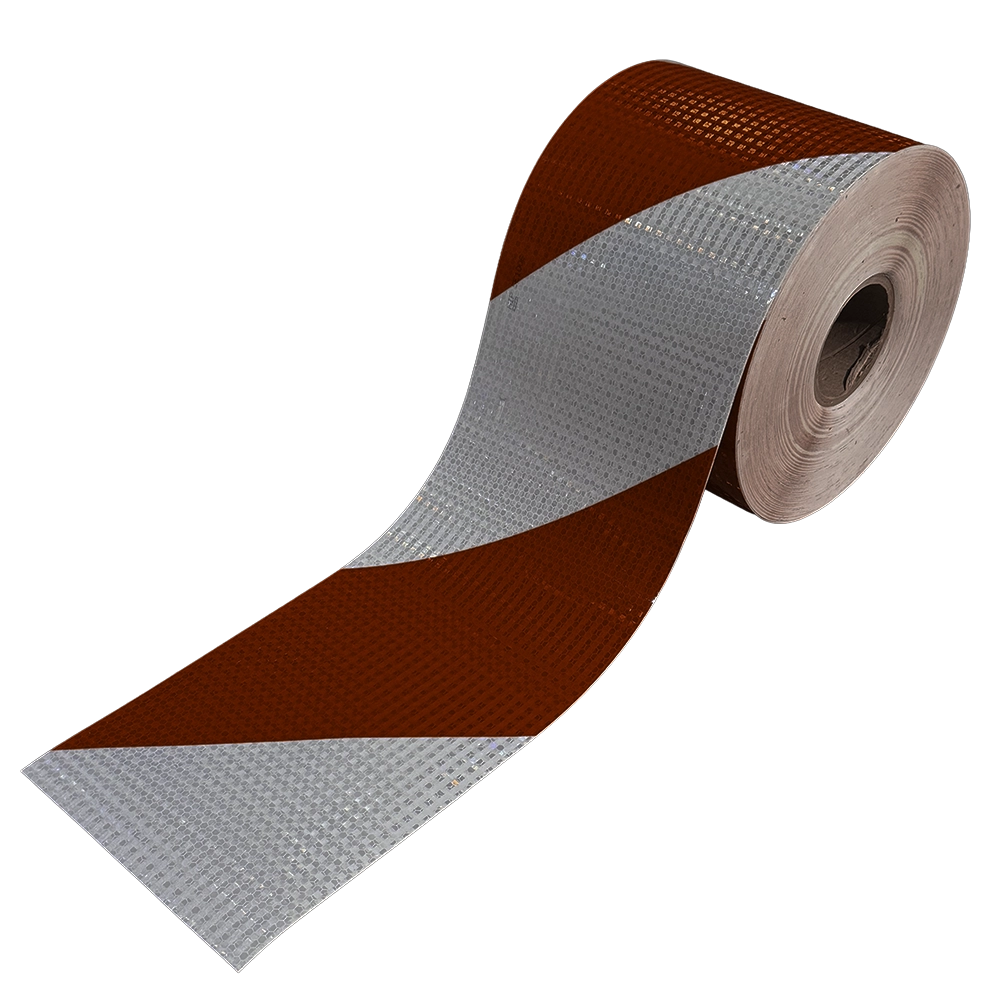

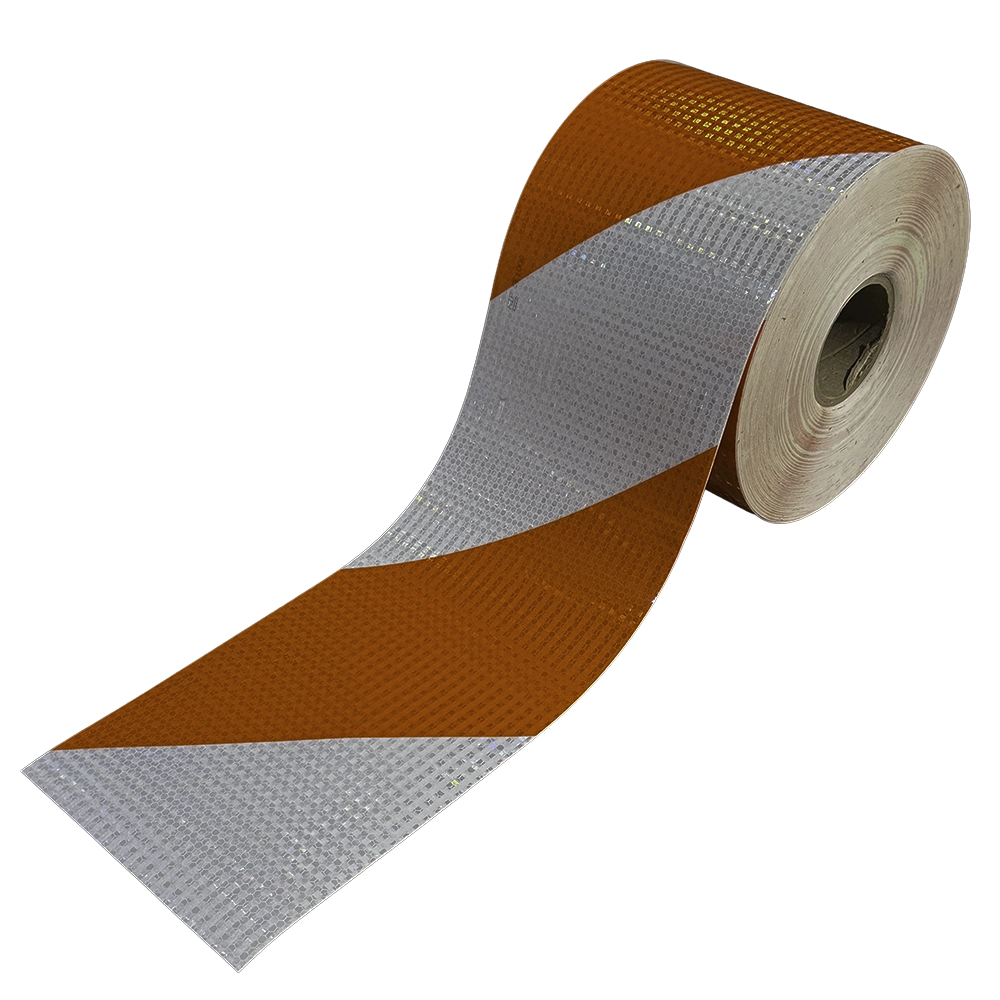

Barricade Sheeting
CART
CART
CART
CART
About Product
What ASTM sheeting types are available for Avery Dennison's Pre-Striped Barricade product?
The Pre-Striped Barricade is available in two ASTM types: HIP (Type IV), and OmniCube (Type XI). Higher types offer greater retroreflective performance, with Type XI being the brightest option in the lineup.
What substrates can the W-6000 HIP Pre-Striped Barricade sheeting be applied to?
The pre-striped barricade variants (W-61XX) are designed for application on properly prepared plastic and wood boards that are free of oil and debris. The product uses a pre-coated high-tack adhesive specifically engineered to bond to plastic or wood surfaces.
What is the minimum application temperature and service temperature range for the W-6000 HIP Series?
The minimum application temperature is 50°F (10°C). Once installed, the product operates in a service temperature range of -10°F to +150°F (-23°C to +65°C).
What does the performance warranty cover, and how long does it last?
The W-6000 HIP Series carries a 3-year performance warranty requiring the sheeting to retain at least 80% of its original retroreflective values. The product must be fabricated and installed within one year of purchase.
What are the key features and benefits of the Pre-Striped Barricade sheeting?
The sheeting features omnidirectional performance, meaning it reflects light back to drivers uniformly regardless of whether it's mounted horizontally on a barricade board or vertically on a panel — there's no "wrong" orientation that would reduce visibility.
- Meets M.U.T.C.D. specifications.
- NCHRP-350 crash tested and approved.
- See Barricade Sheeting in our catalog on page 53.
More Information
Where can I find more information about this product?
The following section in Part 6 of the MUTCD contains more information about A Frame, A Frame I, and A Frame II Barricades: Section 6K.07 – Type 1, 2, or 3 Barricades
