Type I Barricades

These temporary traffic control (TTC) devices are typically used on city streets, sidewalks, and parking lots to partially block roadway access while surfaces are being repaved, repaired, or when traffic must otherwise be temporarily rerouted.

Yes, signs like the R9-9 Sidewalk Closed Sign can be attached between the two horizontal panels of the barricade.

Yes. To boost visibility, a maximum of two Barricade Lights can be installed onto each of these TTC devices.

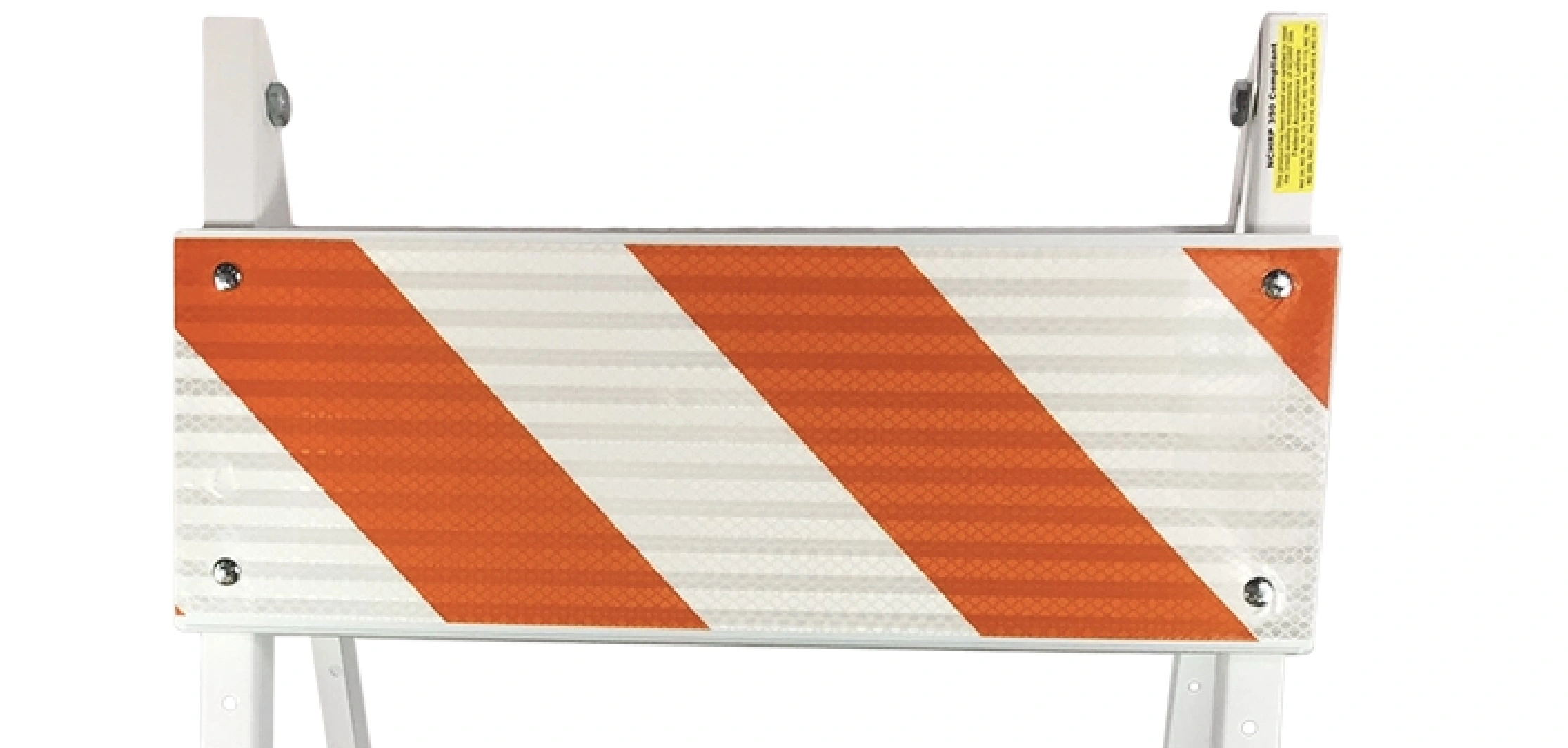

The top panel on the front of a Type I barricade has alternating orange and white stripes slanting downward to the right. In contrast, the back top panel has alternating orange and white stripes slanting downward to the left.

Type I Barricades are best stored in horizontal stacks. We suggest alternating the direction of the barricades to provide more stability, as well as limiting stacks to a maximum of 25 barricades, approximately 50” high.

Yes, panels are pre-installed onto the 14-gauge, painted white steel barricade legs. 3/4” rivets ensure a secure, lasting connection.

The easiest way to open up the barricade is the following:

1. Step 1: Stand the barricade upright and approach from the side.
2. Step 2: Use one hand to grip the bottom of the top panel on the front. Use your other hand to grip the bottom of the top panel on the back.
3. Step 3: Lift the barricade slightly and pull the top panels apart until the barricade does not open any further.

Note: It is essential to pull the barricade apart to its fullest width in order to stabilize its legs and best resist windy conditions.

Install a Barricade Light using the following tools: Socket Wrench (3/4” bit), 10” Crescent Wrench, Ratchet, Anti-Theft Security Bit (included with a purchase of 10+ barricades). We recommend installing barricade lights one at a time.

1. Step 1: Close the barricade and stand it upright against a wall or sturdy fixture.
2. Step 2: Locate the bolt on the inner side of the barricade legs, above the top panel.
3. Step 3: Use the crescent wrench to securely grip the bolt head.
4. Step 4: At the same time, on the outer side, align the socket wrench bit to match the nut.
5. Step 5: Hold the crescent wrench steady while loosening the nut with the socket wrench.
6. Step 6: Carefully remove the nut and bolt from the barricade legs.

1. Step 1: Insert the bolt, threaded side inwards, and hold steady.
2. Step 2: Align the barricade light with the bolt, and lightly screw in bolt into the barricade light by hand.
3. Step 3: Hold the barricade light steady, align the anti-theft security bit with the bolt, and use the ratchet to tighten the bolt into the barricade light.

Repeat the steps for “Removing the bolt” and “Attaching the barricade lights” if you would like to install barricade lights on both ends of the barricade.

You’ll need the following tools to remove a Barricade Light: Socket Wrench (3/4” bit), 10” Crescent Wrench, Ratchet, Anti-Theft Security Bit (included with a purchase of 10+ barricades).

1. Step 1: Hold the barricade light steady while loosening the bolt with the ratchet.
2. Step 2: Carefully remove the bolt from the barricade legs

1. Step 1: Insert the bolt, threaded side outwards.
2. Step 2: Lightly tighten the nut, nylon ring side outwards, onto the bolt by hand.
3. Step 3: Use the crescent wrench to grip the bolt head, tightening the knurl for a secure hold.
4. Step 4: Align the socket wrench bit with the nut and tighten the nut until three threads remain on the bolt. This provides the appropriate tightness needed to allow for smooth opening and closing of the barricade.

This product is compliant with federal MUTCD requirements and NCHRP-350/MASH-approved. The barricade is designed to minimize crash damage for drivers, pedestrians, and workers.

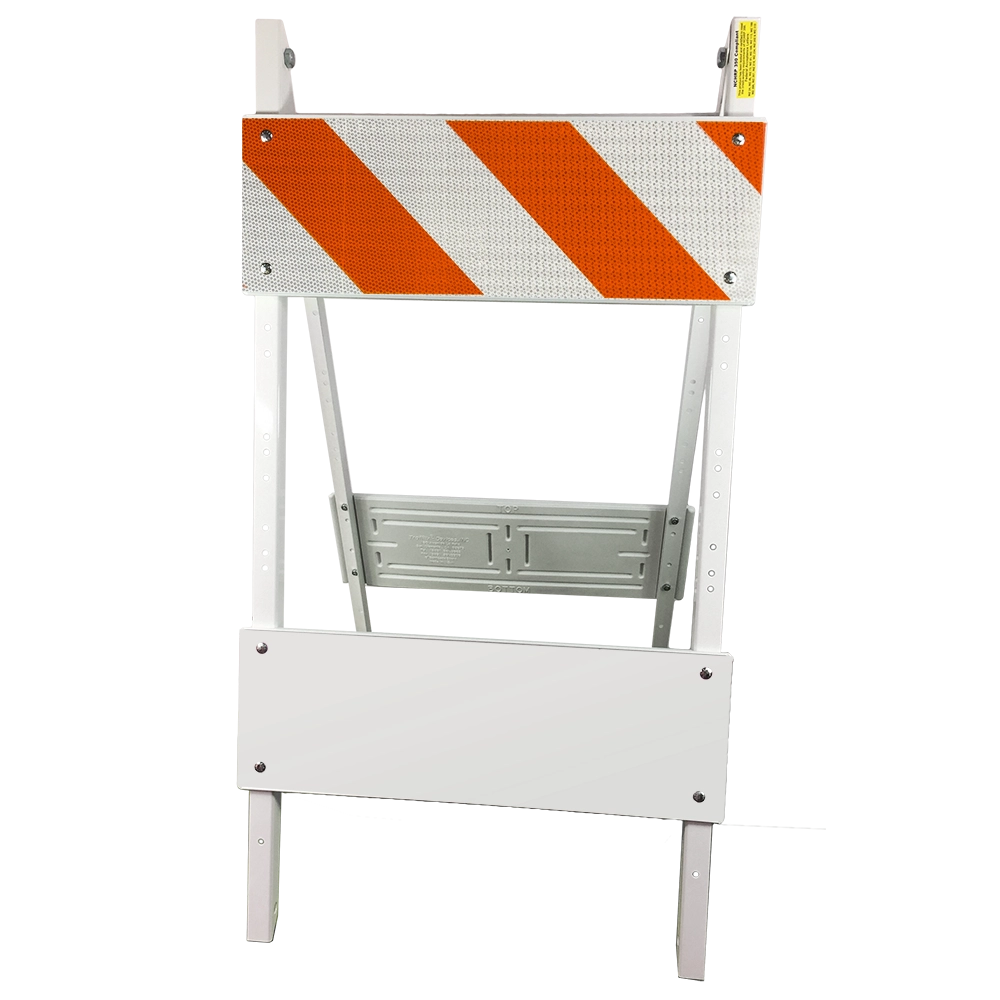

Our Type I Barricades are 45” tall, 24” wide, and 13.5 pounds. Panels have your choice of high-intensity prismatic or full-cube prismatic sheeting.

The top panel on both sides has alternating 4” wide orange and white stripes and measures 24" wide and 8 1/4” tall. The plain white bottom panel on both sides provides stability and is 24” wide and 6” tall.

This product is compliant with federal MUTCD requirements and NCHRP-350/MASH-approved.

Our Type I Barricades are 45” tall, 24” wide, and 13.5 pounds. Panels have your choice of high-intensity prismatic or full-cube prismatic sheeting.

The top panel on both sides has alternating 4” wide orange and white stripes and measures 24" wide and 8 1/4” tall. The plain white bottom panel on both sides provides stability and is 24” wide and 6” tall.

Each barricade arrives fully assembled with panels pre-installed and legs connected with a removable bolt. The Anti-Theft Security Bit ships free with a purchase of 10 or more barricades.

Type I Barricades are folded, stacked, and shipped in a custom-fit pallet via truck carrier. Upon shipment, the PRO tracking number will be sent your way.

The following section in Part 6 of the MUTCD contains more information about Type I, Type II, and Type III Barricades: Section 6K.07 – Type 1, 2, or 3 Barricades
