Water-Filled Barriers

PART NO. DESCRIPTION PRICE EACH ADD TO
CART

1 to 4 5 to 9 10 +

Part Number: WFB2

Orange Water Filled Barrier

1 to 4 $599.99

5 to 9 $587.99

10+ $575.99

PART NO. DESCRIPTION PRICE EACH ADD TO
CART

1 to 4 5 to 9 10 +

Part Number: WFB1

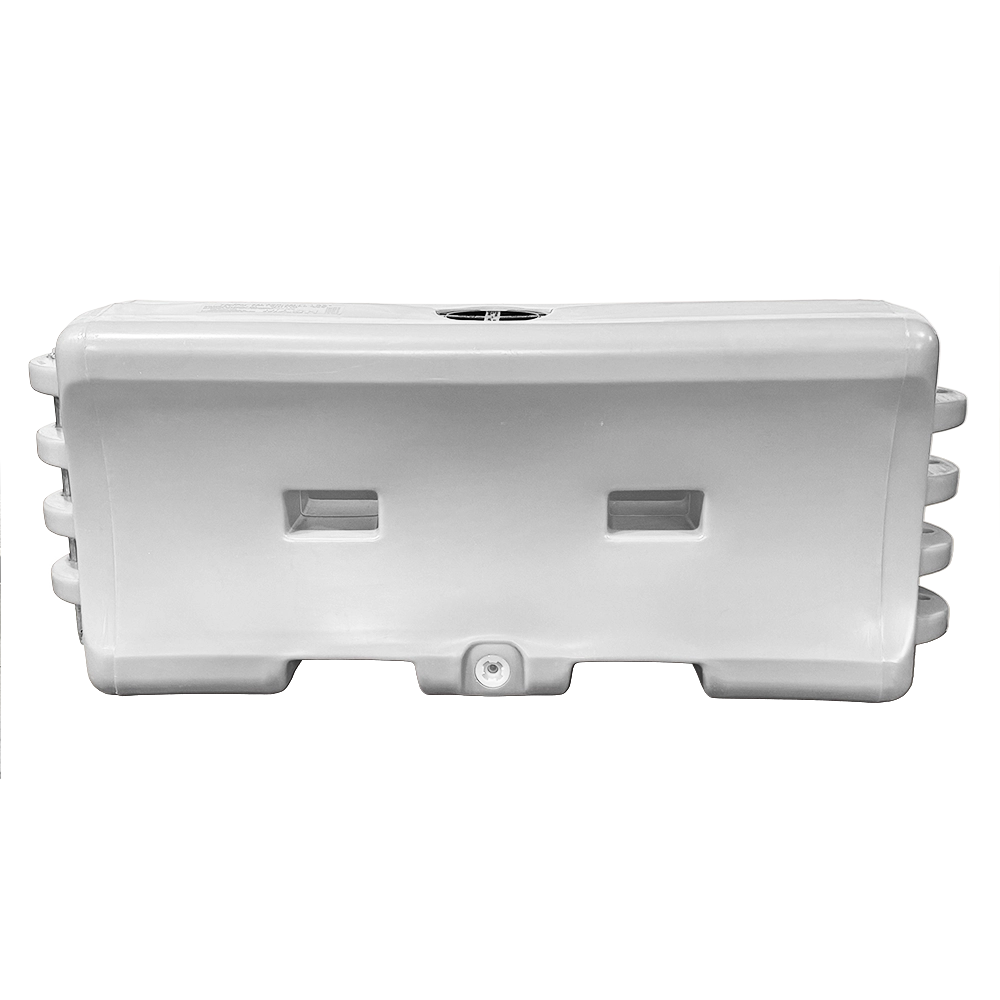

White Water Filled Barrier

1 to 4 $599.99

5 to 9 $587.99

10+ $575.99

This channelizing device leads drivers along the temporary travel path around or through a construction zone, protecting pedestrians and workers alike.

About Product

What is a Water-Filled Barrier, and how is it used?

A Water-Filled Barrier is a channelizing device that borders a construction site or work zone, protecting workers and pedestrians as cars drive through the temporary travel path. Additionally, they may be used for parade routes, crowd control, special events, and lane delineation.

How heavy is the barrier with and without water?

Each section of the barrier is approximately 80 lbs. empty and approximately 1,110 lbs. when filled with water.

Can I line up these barriers onto a curved path?

Yes, each barrier section can be positioned at up to 30°, making the barrier layout more flexible to accommodate the shape of the work site perimeter.

The end view shows the orange plastic barrier's molded interlocking flanges with three rounded lobes stacked vertically, through which a steel T-pin is inserted to connect adjacent units. The T-pin features a cross pin at the top to prevent the rod from passing through and a cotter pin at the bottom for secure locking. No text, symbols, or reflective markings are visible on the end of the barrier, with only the molded plastic flanges and steel hardware shown. — The steel T-pin inserted through the interlocking end flanges securely links adjacent water-filled barriers into a continuous channelization line for work zone traffic control.

Setup & Take-down

How do barrier components install?

Each barrier section has four molded knuckles with holes on each side. To connect two sections, interlink the knuckles, resulting in a total of eight knuckles lined up. A steel T-pin threads down through the holes in those eight knuckles and can be locked into place using the keeper pin. The keeper pin is pre-installed onto the steel pin.

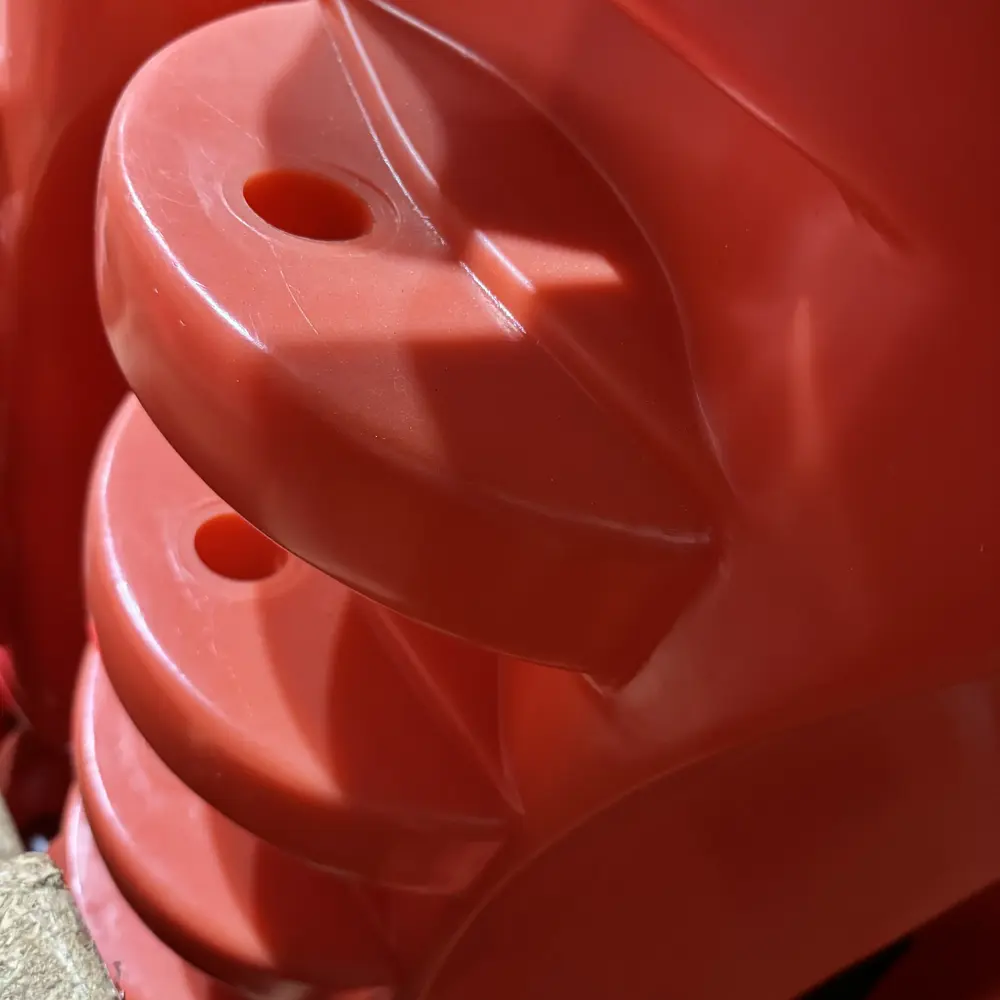

Close-up view of stacked orange water-fill traffic barriers showing the molded interlocking end flanges with connection pin holes used for linking multiple barrier units together in a continuous line. — This close-up photograph shows the molded interlocking end flanges of an orange plastic water-filled traffic barrier. Three rounded lobes are stacked vertically, each with a connection pin hole aligned for inserting a steel T-pin to securely link adjacent barriers. The alternating lobe design allows the flanges of two barriers to interlock before the pin is inserted, creating a stable and aligned connection for continuous channelization lines.

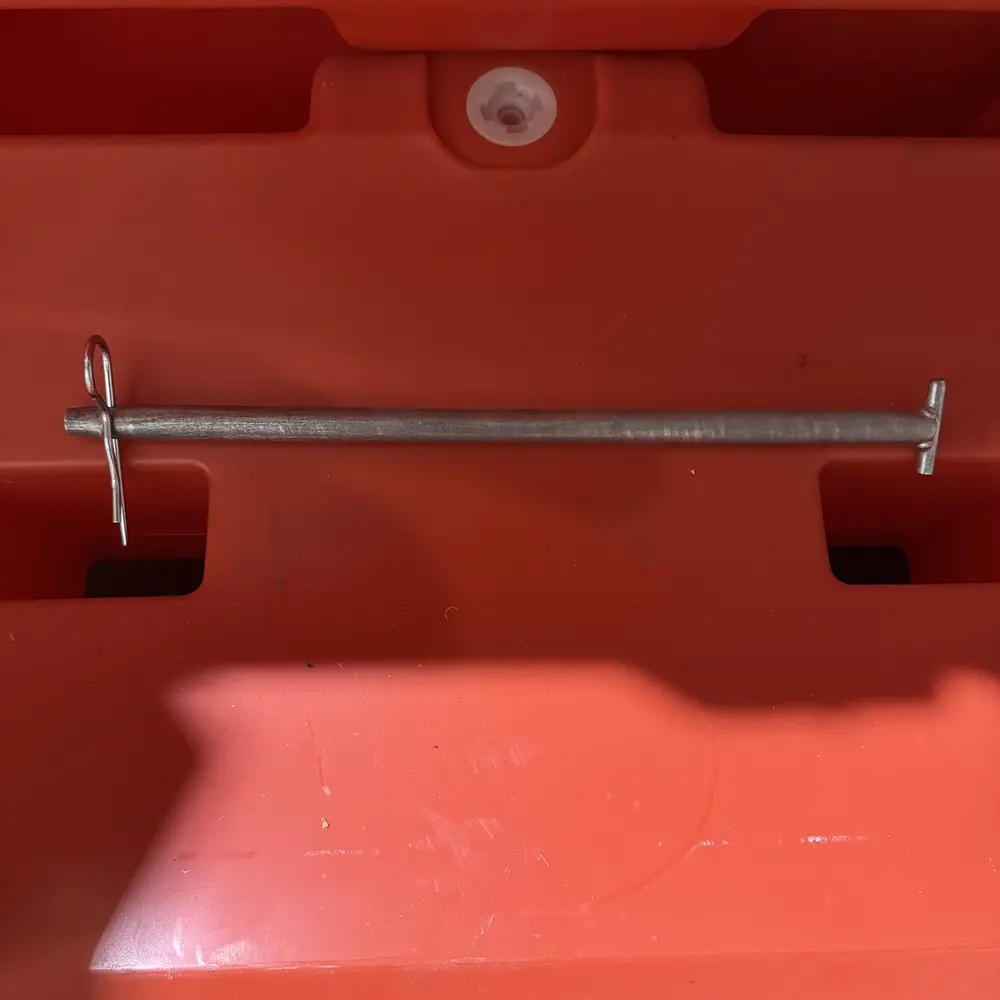

A steel connection pin with a cotter pin on one end and a cross pin on the other, stored horizontally in the built-in molded cradle on the side of an orange water-fill traffic barrier, with the white drain plug visible above. — This close-up shows the steel connection T-pin stored in the built-in molded cradle on the side of an orange water-filled traffic barrier. The galvanized steel pin features a cotter pin on the left end for locking and a cross pin on the right end to prevent the rod from sliding through the interlocking flanges.

How do I fill the barrier?

Simply uncap the fill hole and pour water into the barrier. The fill hole is 8 in. in diameter, making filling the barrier with water faster and easier. Secure the cap with a simple twist to lock it into place.

Close-up view of the 8-inch diameter fill port on top of an orange water-fill traffic barrier, featuring a black twist-to-lock cap with a cross-shaped grip pattern, molded with 'ROTATE 45° TO LOCK' instructions, 'WATER-WALL COVER' labeling — The 8-inch twist-to-lock fill cap on the TrafFix water-filled barrier allows for fast, easy water filling and secures with a simple 45-degree rotation.

How can I move the barriers filled with water?

The underside of each barrier section is molded to fit the forks of a forklift.

How do I empty the barrier of water?

By uncapping the drain plug at the bottom of the barrier body. The plug is outfitted with a tamper-resistant screw top that is easy to remove

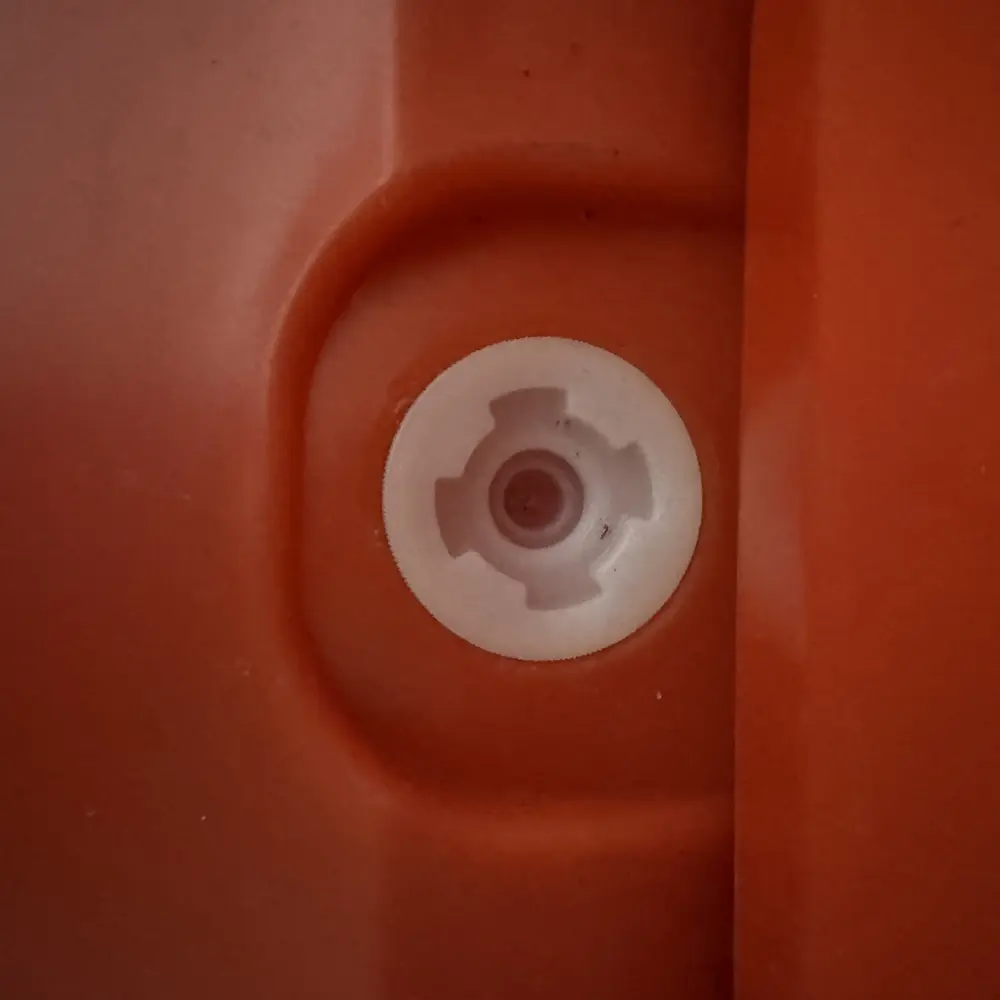

Close-up view of a white plastic drain plug seated in a recessed circular port on the side of an orange water-fill traffic barrier, featuring a cross-shaped grip pattern for hand-tightening to drain or seal the barrier. — The white plastic drain plug near the base of the barrier allows for quick water drainage, making the unit lighter for transport and redeployment.

Product Specifications

What standards does this product meet?

Water-Filled Barriers are MUTCD-compliant and MASH/NCHRP-350 tested and passed.

What materials are used to manufacture this product?

The barrier body is manufactured with low-density polyethylene plastic, and the connection pins are made from steel.

Orders & Shipping

How do you package and ship barriers?

Each barrier section is oriented to compactly fit onto a custom-sized pallet. Orders ship via truck freight, and the PRO tracking number will be included in the email confirmation when shipped.
