MUTCD W5-3CAbout Narrow Bridge Signs
What are Narrow Bridge Signs, and how are they used?
Narrow Bridge Signs give drivers advance notice that the roadway will narrow as they approach a narrow bridge. These diamond-shaped warning signs are available in two colors for two distinct uses. Yellow rigid signs (W5-2) are for permanent installation, and orange rigid signs (W5-2C) are temporarily installed in construction zones.
What is considered a “narrow bridge”?
Although the MUTCD doesn’t specifically define a “narrow bridge”, its guidance calls for the use of a Narrow Bridge Sign when a bridge on a two-way roadway is only 16 to 18 ft. wide (2C.18, 01).
How are “Narrow Bridge” and “Narrow Underpass” Signs different?
For both Narrow Bridge Sign and Narrow Underpass Sign guidance, the “narrow” section of roadway is defined by the same 16 to 18 ft. width (2C.18, 01). The only difference between these two signs is whether the narrowed roadway is at a bridge or at an underpass.
How can I make a Narrow Bridge Sign more visible?
The MUTCD mentions that using object markers, delineators, and/or pavement markings are three possible ways that Narrow Bridge Signs can be highlighted (2C.18, 02).
Where are Narrow Bridge Signs placed?
The MUTCD provides general guidance that a Narrow Bridge Sign should be placed “in advance” of a narrow bridge (2C.18, 01). Signs are typically placed ahead of the bridge where space allows.
Are Narrow Bridge Signs customizable?
Because of their simple, straightforward design and messaging, Narrow Bridge Signs aren’t usually customized.
Selecting and Mounting a Narrow Bridge Sign
Which size sign should I choose?
Most roads and all highways require the 36”x36” sign size, and interstates require the 48”x48” sign size. The minimum sign size, 30”x30”, should be used only on low-speed or residential roads.
How are Narrow Bridge Signs mounted?
Rigid Narrow Bridge Signs are compatible with round, square, and U-channel posts and can be mounted with your choice of sign mounting hardware. Check the table below for more information on the number of posts required for each sign and the quantity of predrilled holes each size has.
Signs Posts Required
Sign Mounting Holes
36x36 Signs
1 post
2 holes
48x48 Signs
2 posts
4 holes
30x30 sign
1 post
2 holes
Materials, Orders & Shipping
What materials do you use to manufacture Narrow Bridge Signs?
Rustproof .080” aluminum provides the base for one of two types of sheeting, high-intensity prismatic (HIP) or full-cube prismatic (FCP). Rigid Narrow Bridge Signs are manufactured with your choice of yellow HIP sheeting, fluorescent yellow FCP sheeting, orange HIP sheeting, or fluorescent orange FCP sheeting.
How do ordering and shipping work?
Add any sign you’d like to your shopping cart, finalize your order, and check out. We package rigid signs with a layer of protective slip sheeting in between each sign face. Signs ship quickly, and you can track your package with the UPS tracking number we provide via email when your order is on the way.
Is mounting hardware included with my purchase?
Mounting hardware isn’t included with a Narrow Bridge Sign order, but all the hardware you need to mount these signs can be found on our sign mounting hardware page.
More Information
Where can I find more information about Narrow Bridge Signs?
Section 2C.18 in Part 2, Chapter 2C of the MUTCD describes the use of these signs in greater detail.

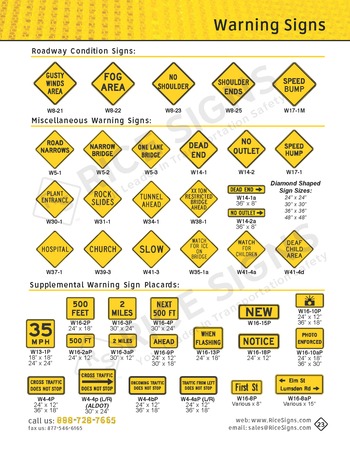

Catalog Page 23
